Description

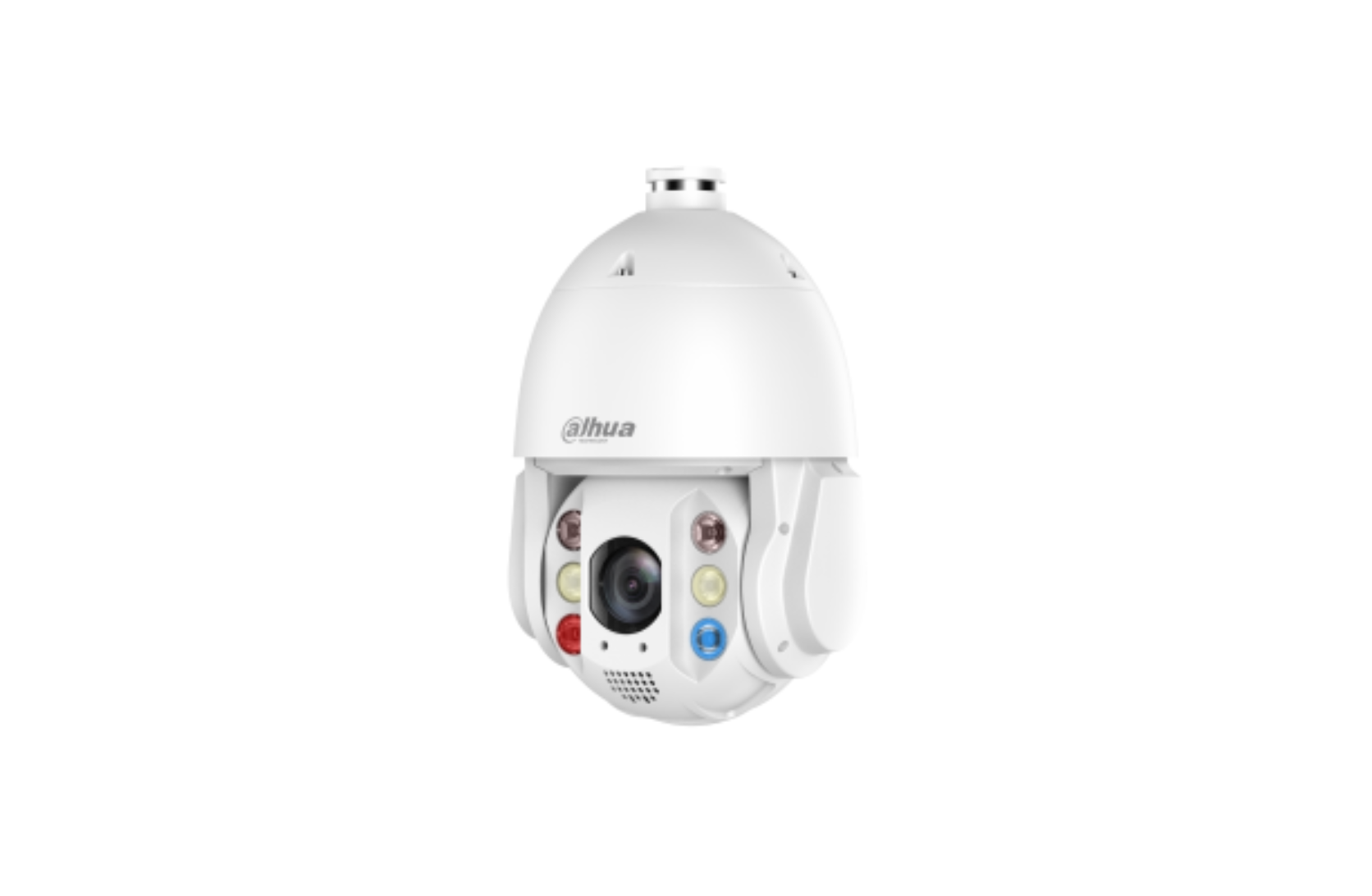

4MP 32x Starlight TiOC WizSense Network PTZ Camera
Key Features
- 4MP high-resolution imaging for clear and detailed surveillance
- 32× optical zoom for long-range monitoring and close-up detail capture
- Starlight technology for exceptional low-light performance
- Smart Dual Light with up to 150m IR range and 50m white light range
- Active deterrence with red & blue warning lights and customizable alarm audio
- Auto Tracking 3.0 for intelligent target tracking and movement trajectory monitoring
- Deep learning-based human and vehicle classification
- Perimeter protection with IVS analytics including tripwire and intrusion detection
- Face detection and metadata analytics support
- Construction safety detection including helmet and uniform compliance
- AcuPick AI target search support
- IP66 weatherproof protection with TVS 6000V surge protection
- Datasheet
Camera
- Image Sensor: 1/2.8" CMOS
- Resolution: 4MP (2560 × 1440)
- RAM / ROM: 1GB / 4GB
- Electronic Shutter: 1s–1/30,000s
- Minimum Illumination:
- Color: 0.005 lux @ F1.6
- B/W: 0.0005 lux @ F1.6
- 0 lux with illuminator on
- Scanning System: Progressive
Lens
- Focal Length: 4.8mm–154mm
- Aperture: F1.6–F4.0
- Optical Zoom: 32×
- Focus Control: Auto / Semi-auto / Manual
- Iris Control: Auto / Manual
- Close Focus Distance: 0.1m–1.5m
Field of View
- Horizontal: 55.8°–2.3°
- Vertical: 31.9°–1.3°
- Diagonal: 63.7°–2.7°
DORI Distance
- Detect: 3080m
- Observe: 1216.6m
- Recognize: 616m
- Identify: 308m
PTZ
- Pan Range: 0°–360° endless
- Tilt Range: –20° to +90° with auto flip
- Manual Speed:
- Pan: 0.1°/s–160°/s
- Tilt: 0.1°/s–120°/s
- Preset Speed:
- Pan: 240°/s
- Tilt: 150°/s
- Presets: 300
- Tours: 8
- Patterns: 5
- Scans: 5
- Power-off Memory: Yes
AI Analytics
- IVS Perimeter Protection:
- Tripwire
- Intrusion
- Loitering detection
- Fast moving detection
- Parking detection
- People gathering
- Abandoned / missing object detection
- Human & vehicle classification
- Auto Tracking 3.0
- SMD 4.0
- Face detection with attribute extraction
- Construction detection:
- Helmet colour detection
- Work uniform compliance
- Mask and shoe cover detection
- Lone worker and unmanned area detection
- AcuPick intelligent target search
Active Deterrence
- Red & Blue flashing warning lights
- Adjustable flash duration and frequency
- Built-in customizable speaker alarm
- Volume adjustment from 0–100
Video
- Compression:
- Smart H.265+
- Smart H.264+
- H.265
- H.264
- MJPEG
- Triple stream support
- Maximum Frame Rate:
- Main Stream: Up to 4MP @ 30fps
- WDR: 120dB
- Digital Zoom: 16×
- Day/Night Mode: Auto (ICR)
- Defog: Electronic
- EIS: Electronic Image Stabilization
- Noise Reduction: 2D NR / 3D NR
- Privacy Masking: Up to 24 areas
Audio
- Audio Compression:
- PCM
- G.711a / G.711Mu
- G.726
- G722.1
- G729
- MPEG2-Layer2
- Audio Input: 1 channel
- Audio Output: 1 channel
- Built-in speaker support
Network & Storage
- Network Port: RJ-45 (10/100 Base-T)
- 4G LTE support
- ONVIF Profile S/G/T compatible
- Storage:
- MicroSD up to 512GB
- FTP/SFTP
- NAS
- Supported Software:
- DMSS
- DSS Pro
- Mobile Support:
- iOS
- Android
Alarm Interface
- Alarm Input: 2 channels
- Alarm Output: 1 channel
- Alarm Actions:
- Recording
- Snapshot
- PTZ preset/tour/pattern
- Audio warning
- Warning light activation
Power
- Power Supply: 12VDC, 4A
- Maximum Power Consumption: 18W
Environment
- Operating Temperature: –40°C to +70°C
- Humidity: ≤95%
- Protection:
- IP66
- TVS 6000V lightning protection
- Surge protection
- Voltage transient protection
Build
- Dimensions: 325mm × Φ211mm
- Net Weight: 4.2kg
- Gross Weight: 6.7kg
