Description

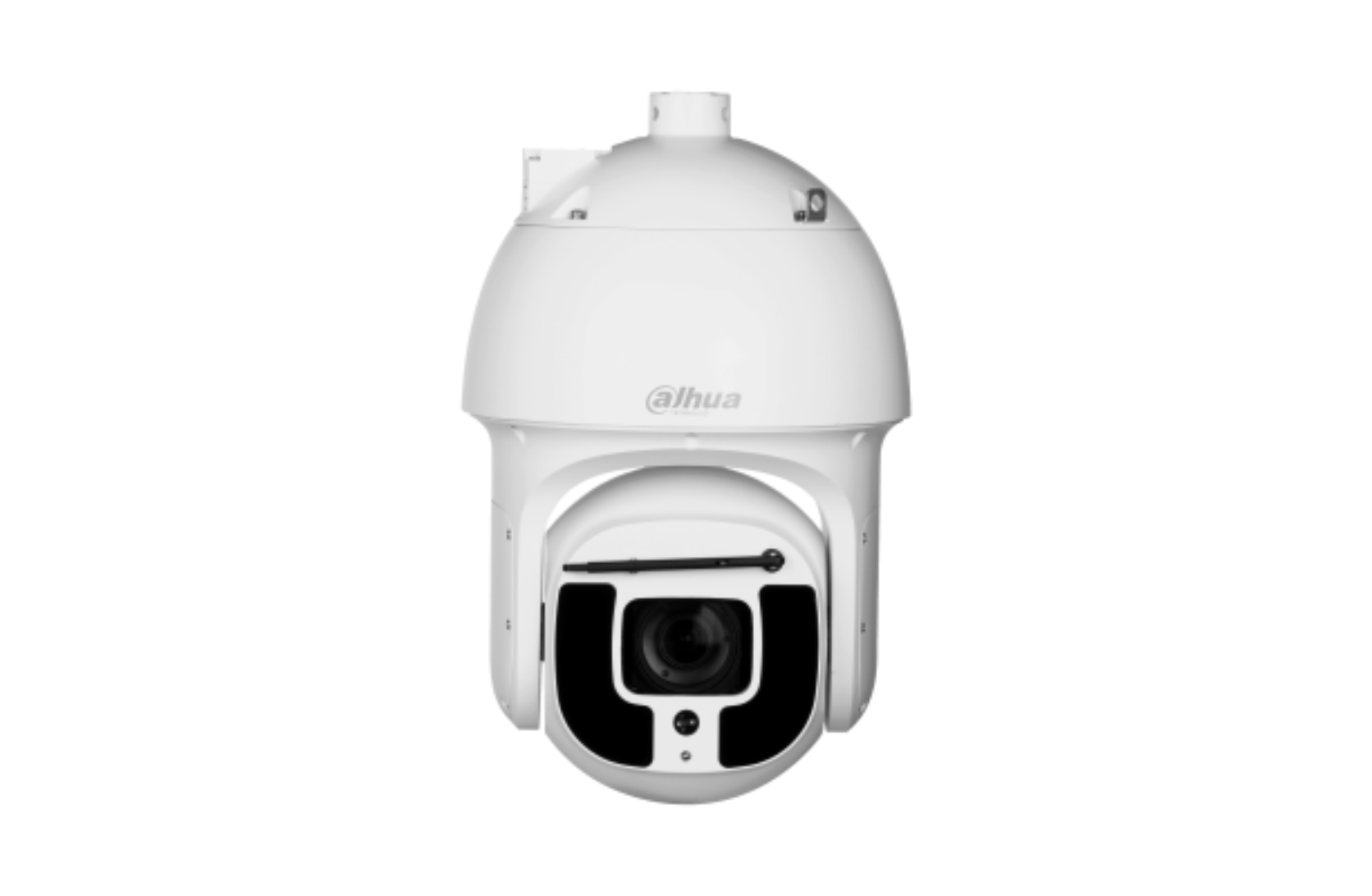

8MP 40× Starlight IR WizMind Network PTZ Camera for Traffic
Key Features
- 8 MP high-resolution imaging with 1/1.8" CMOS sensor
- 40× optical zoom for detailed long-distance surveillance
- Up to 500 m IR illumination for 24/7 monitoring
- Starlight technology for excellent low-light performance
- Supports monitoring up to 8 illegal parking zones
- Vehicle recognition including plate number, plate color, vehicle type and vehicle color
- Up to 3-lane checkpoint monitoring
- Wrong-way driving and traffic congestion detection
- Pedestrian event detection for highways, elevated highways and express roads
- Smart wiper for improved visibility in adverse weather
- 120 dB WDR and optical defog
- Electronic image stabilization
- IP67 weather-resistant construction
- TVS 6000 V lightning, surge and voltage transient protection
- Datasheet
Camera
Image Sensor
- 1/1.8" CMOS
Resolution
- 8 MP
- Maximum: 3840 × 2160
Memory
- ROM: 8 GB
- RAM: 4 GB
Electronic Shutter
- 1/1 s to 1/30,000 s
Scanning System
- Progressive
Minimum Illumination
- Color: 0.005 lux @ F1.4
- B/W: 0.0005 lux @ F1.4
- 0 lux with IR illumination on
IR Illumination
- Distance: Up to 500 m
- 10 × IR illuminators
- Control: Zoom Priority, Manual, Smart IR, Off
Wiper
- Smart wiper
Lens
Focal Length
- 5.6 mm to 223 mm
Optical Zoom
- 40×
Digital Zoom
- 16×
Maximum Aperture
- F1.4 to F4.5
Field of View
- Horizontal: 61.8° to 2.2°
- Vertical: 36.3° to 1.3°
- Diagonal: 69.2° to 2.4°
Focus Control
- Auto
- Semi-auto
- Manual
Close Focus Distance
- 0.5 m to 2 m
Iris Control
- Auto
DORI Distance
- Detect: 3,030 m
- Observe: 1,204 m
- Recognize: 606 m
- Identify: 303 m
PTZ
Pan/Tilt Range
- Pan: 0° to 360° endless
- Tilt: -30° to +90°
- Auto flip: 180°
Manual Control Speed
- Pan: 0.1°/s to 240°/s
- Tilt: 0.1°/s to 100°/s
Preset Speed
- Pan: 240°/s
- Tilt: 120°/s
Presets
- 300
Tours
- 8 tours
- Up to 32 presets per tour
Patterns
- 5
Scans
- 5
Power-Off Memory
- Supported
Idle Motion
- Pattern
- Preset
- Scan
- Tour
PTZ Protocol
- DH-SD
- Pelco-P/D with auto recognition
Traffic Intelligence
Illegal Parking Capture
- Capture radius up to 160 m in multi-scene mode
- Capture radius up to 65 m in single-scene mode
- Supports up to 8 illegal parking areas within the same scene
- Adaptive multi-scene tour expands the monitoring area
- Recognises:
- Vehicle type
- Vehicle colour
- Licence plate number
- Licence plate colour
Checkpoint Capture
- Supports event detection across up to 3 lanes
- Wrong-way driving detection
- Traffic congestion detection
- Vehicle attribute recognition
- Licence plate recognition
- Plate colour recognition
- Vehicle colour recognition
- Vehicle type recognition
E-Police
- Supports up to 3 lanes
- Wrong-way driving detection
- Licence plate recognition
- Plate colour recognition
- Vehicle colour recognition
- Vehicle type recognition
Traffic Event Detection
- Detects pedestrian-related events on:
- Highways
- Elevated highways
- Express roads
- Other applicable traffic environments
Video
Video Compression
- H.265
- Smart H.265+
- H.264
- H.264H
- H.264B
- Smart H.264+
- MJPEG on sub stream
Streaming
- 3 streams
Supported Resolutions
- 4K: 3840 × 2160
- 4 MP: 2560 × 1440
- 1080p: 1920 × 1080
- 1.3 MP: 1280 × 960
- 720p: 1280 × 720
- D1: 704 × 576
- VGA: 640 × 480
- CIF: 352 × 288
Frame Rate
- Main Stream: Up to 25/30 fps at 4K, 4 MP, 1080p, 1.3 MP and 720p
- Sub Stream 1: Up to 25/30 fps at D1, VGA and CIF
- Sub Stream 2: Up to 25/30 fps at 1080p, 1.3 MP and 720p
Bit Rate Control
- CBR
- VBR
Video Bit Rate
- H.264: 512 kbps to 16,384 kbps
- H.265: 256 kbps to 10,240 kbps
Image Enhancement
- 120 dB WDR
- BLC
- HLC
- 2D NR
- 3D NR
- Electronic image stabilization
- Optical defog
- Motion detection
- Region of Interest
- 180° image rotation
Day/Night
- Auto ICR
- Color
- B/W
Privacy Masking
- Up to 24 privacy areas
- Up to 8 areas within the same view
S/N Ratio
- ≥55 dB
Audio
Audio Compression
- G.711a
- G.711μ
- G.726
- G.722.1
- G.729
- MPEG2-Layer2
- G.723
- PCM
Two-Way Audio
- Supported
Audio I/O
- 1 input / 1 output
Network
Ethernet
- RJ-45 10/100 Base-T
Network Protocols
- IPv4 / IPv6
- TCP / UDP
- HTTP / HTTPS
- RTSP / RTP / RTMP
- FTP
- DHCP
- DNS
- DDNS
- NTP
- SMTP
- SNMP
- PPPoE
- UPnP
- IGMP
- ICMP
- 802.1X
- QoS
Interoperability
- ONVIF Profile S, G & T
- CGI
Streaming Method
- Unicast
- Multicast
Users
- Up to 20 users
- Total bandwidth: 64 Mbps
Storage
- FTP
- MicroSD card up to 512 GB
Management Software
- Cyber City
Interfaces
Analog Video Output
- 1 × CVBS BNC
RS-485
- 1
- Baud rate: 1200 to 9600 bps
Alarm I/O
- 7 inputs / 2 outputs
Audio I/O
- 1 input / 1 output
Alarm Linkage
- Snapshot capture
- Preset
- Tour
- Pattern
- SD card recording
- Alarm digital input
- Email notification
- Client E-map
Alarm Events
- Motion detection
- Video tampering
- Audio detection
- Network disconnection
- IP conflict
- Encoder status
- Memory card status
- Storage space detection
- Power fault detection
Power
Power Supply
- 36 VDC, 2.23 A ±25%
- Hi-PoE
Power Consumption
- Basic: 20 W
- Maximum: 33 W with IR illumination on
Environment
Operating Temperature
- -40 °C to +70 °C
Operating Humidity
- ≤95%
Protection
- IP67
- TVS 6000 V lightning protection
- Surge protection
- Voltage transient protection
Dimensions & Weight
Dimensions
- 415.9 mm × Φ262.0 mm
Net Weight
- 8.5 kg
Gross Weight
- 12.5 kg
Accessories
Included
- PFB306W Wall Mount Bracket
- PFM311B-030-EN-HKA Power Adapter
Optional
- PFA118 Mount Adapter
- PFB306W Wall Mount
- PFA150 Mount Adapter
