Description

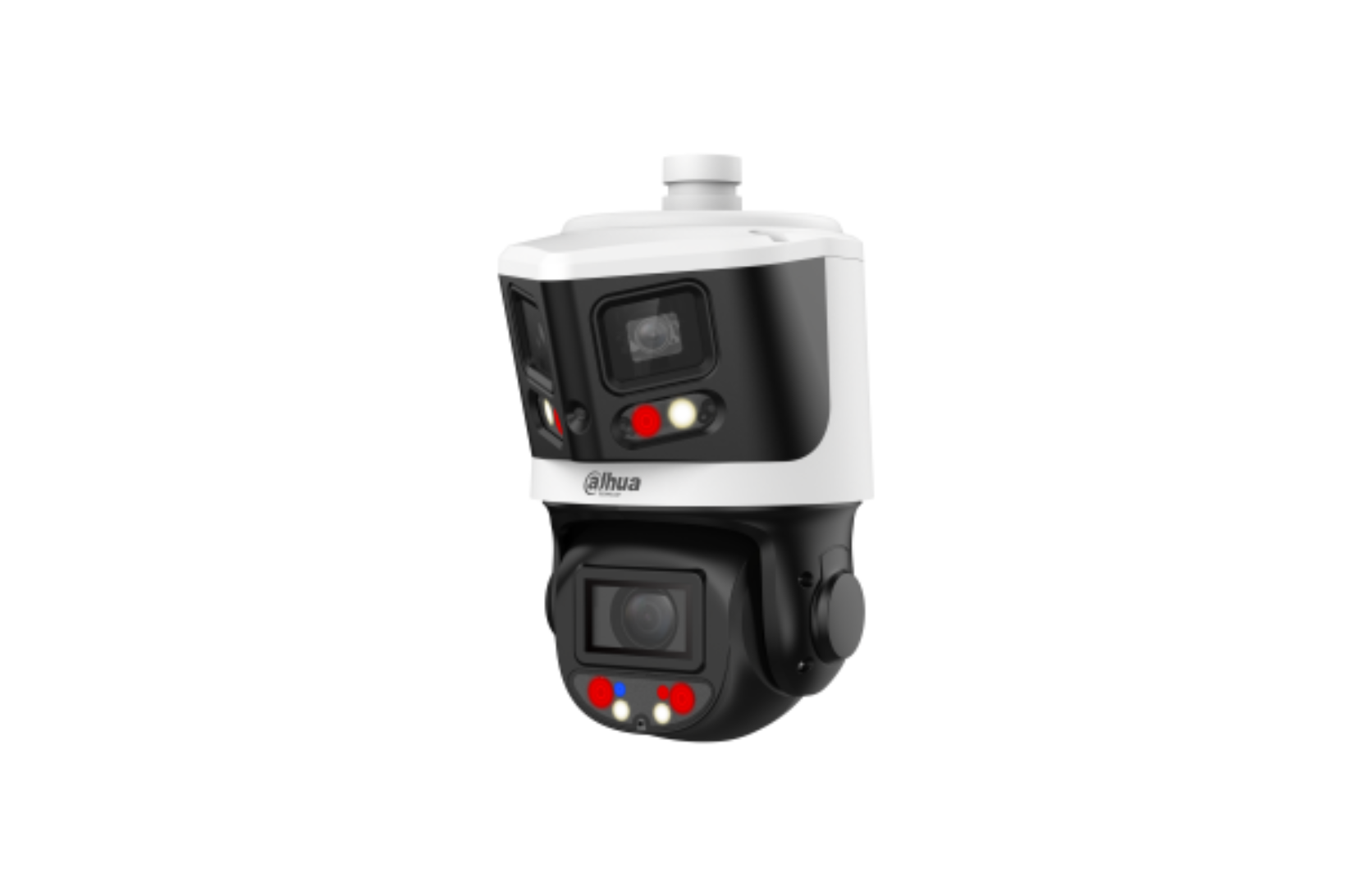

8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
Key Features
- Dual-lens panoramic + PTZ camera for wide-area coverage and detailed zoom monitoring
- 8MP panoramic overview channel + 4MP PTZ detail channel
- 10× optical zoom PTZ camera for long-distance monitoring
- Red & blue warning lights with built-in siren for active deterrence
- Smart Dual Light with up to 70m IR and 30m white light
- Deep learning human and vehicle classification
- Auto Tracking Lite and WizTracking AI tracking
- Supports face detection and perimeter protection
- AcuPick AI target search support
- IP66 weatherproof with TVS 6000V lightning protection
- Datasheet
Camera
Image Sensor:
- Overview Channel: 1/2.8" CMOS
- Detail Channel: 1/2.8" CMOS
Resolution:
- Overview Channel: 8MP (5376 × 1520)
- Detail Channel: 4MP (2560 × 1440)
Minimum Illumination:
- Color: 0.005 Lux @ F1.6
- B/W: 0.0005 Lux @ F1.6
- 0 Lux with IR on
Lens
Overview Channel:
- 2.8mm Fixed Lens
- 180° Horizontal Field of View
PTZ Channel:
- 4mm–40mm Motorised Lens
- 10× Optical Zoom
- F1.6–F3.6 Aperture
Field of View:
- Horizontal: 58°–11.3°
- Vertical: 33.1°–6.4°
PTZ
Pan Range:
- 0° to 345°
Tilt Range:
- -10° to +90°
Preset:
- 300 Presets
- 8 Tours
Tracking:
- Auto Tracking Lite
- WizTracking AI Tracking
DORI Distance
- Detect: 500m
- Observe: 197.5m
- Recognize: 100m
- Identify: 50m
Lighting
Overview Channel:
- 30m IR
- 30m White Light
PTZ Channel:
- 70m IR
- 30m White Light
Active Deterrence
Light Warning:
- Red & Blue Flashing Lights
- Adjustable Flash Frequency
Sound Warning:
- 11 Built-in Alarm Sounds
- Supports 10 Custom Audio Uploads
AI Analytics
Perimeter Protection:
- Tripwire
- Intrusion Detection
- Loitering Detection
- Parking Detection
- People Gathering Detection
AI Functions:
- Human & Vehicle Classification
- Face Detection
- AcuPick AI Search
- Smart Tracking
- SMD
Video
Compression:
- Smart H.265+
- Smart H.264+
- H.265
- H.264
- MJPEG
Streams:
- Triple Stream Support
Frame Rate:
- Up to 30fps
WDR:
- Overview Channel: DWDR
- PTZ Channel: 120dB True WDR
Image Features:
- 2D/3D Noise Reduction
- Electronic Defog
- EIS Image Stabilization
- Digital Zoom up to 16×
Audio
- Built-in Microphone
- Built-in Speaker
- Audio Input & Output
- Supports Two-Way Audio
Network & Storage
Network:
- RJ-45 100 Base-T
Protocols:
- ONVIF Profile S/G/T
- RTSP
- HTTPS
- FTP
- IPv4/IPv6
Storage:
- MicroSD Card up to 512GB
- NAS
- FTP/SFTP
Compatibility:
- DMSS
- DSS Pro
- iOS & Android
Alarm
- 1 Alarm Input
- 1 Alarm Output
- Alarm Linkage with Recording, Presets, Audio & Warning Lights
Power
Power Supply:
- 12V DC
- PoE+ (802.3at)
Power Consumption:
- Basic: 12W
- Maximum: 25W
Protection
- IP66 Weatherproof
- TVS 6000V Lightning Protection
- Surge Protection
- Voltage Transient Protection
Operating Conditions
Operating Temperature:
- -30°C to +60°C
Humidity:
- ≤95%
Dimensions & Weight
Dimensions:
- 140.3 × 181.7 × 238.8 mm
Net Weight:
- 2.17kg
Gross Weight:
- 3.1kg
