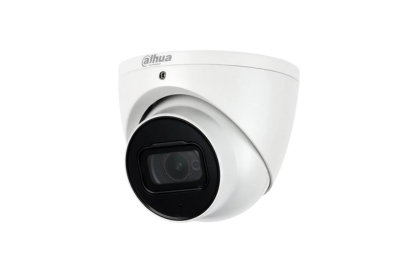

Dahua Security Camera 4 MP IR Fixed-focal Eyeball WizSense Network Camera DH-IPC-HDW3466EMP-S-AUS

4 MP IR Fixed-focal Eyeball WizSense Network Camera

• 4-MP 1/3" CMOS image sensor with excellent low luminance performance and high-definition images.

• Outputs max. 4 MP (2688 × 1520) at 25/30 fps.

• H.265 codec for high compression rate and ultra-low bit rate.

• Built-in IR LED with a maximum IR distance of 50 m.

• ROI, SMART H.264+/H.265+, AI H.264/H.265 with flexible coding for various bandwidth and storage environments.

• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, suitable for diverse monitoring scenes.

• Intelligent detection includes intrusion and tripwire with vehicle and human classification.

• Abnormality detection covers motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, and voltage detection.

• Supports up to 256 GB Micro SD card. Built-in microphone.

• Powered by 12 VDC or PoE for easy installation.

• IP67 protection rating.

• Includes SMD 4.0 and AI SSA technologies.

• Datasheet



Camera Specifications:

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination:

• 0.005 lux@F1.4 (Color, 30 IRE)

• 0.0005 lux@F1.4 (B/W, 30 IRE)

• 0 lux (Illuminator on)

• Signal-to-Noise Ratio (S/N Ratio): >56 dB

• Illumination Distance: 50 m (164.04 ft)

• Illuminator On/Off Control: Auto/Manual

• Illuminator Number: 2 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°

• Tilt: 0°–78°

• Rotation: 0°–360°

Lens:

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 2.8 mm; 3.6 mm; 6 mm

• Max. Aperture: F1.4

Field of View:

• 2.8 mm: Horizontal 102°, Vertical 54°, Diagonal 121°

• 3.6 mm: Horizontal 84°, Vertical 42°, Diagonal 101°

• 6 mm: Horizontal 52°, Vertical 28°, Diagonal 61°

Iris Control: Fixed

Close Focus Distance:

• 2.8 mm: 0.7 m (2.30 ft)

• 3.6 mm: 1.3 m (4.27 ft)

• 6 mm: 2.6 m (8.53 ft)

DORI Distance:

• 2.8 mm: Detect 63.6 m (208.66 ft), Observe 25.4 m (83.33 ft), Recognize 12.7 m (41.67 ft), Identify 6.4 m (21.00 ft)

• 3.6 mm: Detect 85.4 m (280.18 ft), Observe 34.2 m (112.20 ft), Recognize 17.1 m (56.10 ft), Identify 8.5 m (27.89 ft)

• 6 mm: Detect 124 m (406.82 ft), Observe 49.6 m (162.73 ft), Recognize 24.8 m (81.36 ft), Identify 12.4 m (40.68 ft)

Intelligence:

• IVS (Perimeter Protection): Tripwire, intrusion (supports classification and accurate detection of vehicle and human)

• AI SSA: Yes

• Quick Pick: With AI NVR, quickly pick human/vehicle targets from SMD events

• Smart Search: Works with Smart NVR for refined intelligent search and event video merging

Video:

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Video Frame Rate:

  • Main stream: 2688 × 1520 @ (1–25/30) fps

  • Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)

  • Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

• Stream Capability: 3 streams

• Resolution Options: 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Video Bit Rate: H.264 & H.265: 3 kbps–8192 kbps

Day/Night: Auto (ICR) / Color / B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
Scene Self-adaptation (SSA): Yes
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control: Auto
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Defog: Yes
AFSA: Yes
Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas

Audio:

• Built-in MIC: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm:

• Alarm Event: No SD card, SD card full, SD card error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, safety exception

Network:

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocol: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

Cyber Security:

• Video encryption, Firmware encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certification generation/import, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade

Interoperability:

• ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec

User/Host: 20 (Total bandwidth: 64 M)
Storage: FTP, SFTP, Micro SD card (max 256 G), NAS

Browser Support: IE11, Chrome, Firefox
Management Software: Smart PSS, DSS, DMSS
Mobile Client: iOS, Android

Certifications:

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power:

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption: Basic: 3.3 W (12 VDC); 4.2 W (PoE)
  Max (WDR + IR + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE)

Environment:

• Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), <95% RH

• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

Protection: IP67

Structure:

• Casing: Metal

• Dimensions: 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")

• Net Weight: 500 g (1.10 lb)

• Gross Weight: 770 g (1.70 lb)
