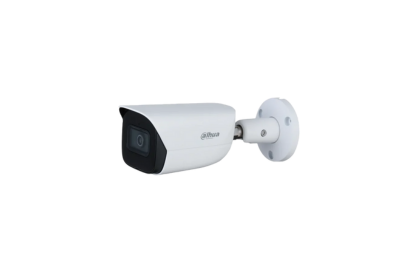

Dahua Security Camera 4MP IR Fixed-focal Bullet WizSense Network Camera DH-IPC-HFW3466EP-AS-AUS

4 MP IR Fixed-focal Bullet WizSense Network Camera

• 4 MP 1/3" CMOS image sensor for excellent low-light performance and high-definition imaging

• Maximum resolution: 2688 × 1520 @ 25/30 fps

• H.265 compression with high compression efficiency and ultra-low bit rate

• Built-in IR LEDs with a maximum IR distance of 50 m

• Supports ROI, Smart H.264+/H.265+, and AI H.264/H.265 for flexible encoding

• Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile monitoring scenarios

• Intelligent detection: Intrusion and tripwire with vehicle and human classification

• Abnormality detection: Motion detection, privacy masking, scene change, audio detection, no SD card, SD card full/error, network issues, IP conflict, illegal access, voltage anomalies

• Alarm interface: 1 input, 1 output (Only -AS model supports); Audio: 1 input, 1 output (Only -AS model supports)

• Supports up to 256 GB Micro SD card and has a built-in microphone

• Powered by 12 VDC or PoE for easy installation

• IP67-rated weatherproof design

• Features SMD 4.0 and AI SSA (Scene Self-adaptation)

• Datasheet

Camera Specifications

Image Sensor: 1/3" CMOS
Max. Resolution: 2688 (H) × 1520 (V)
Memory: ROM 128 MB, RAM 512 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s

Minimum Illumination:

• 0.005 lux @ F1.4 (Color, 30 IRE)

• 0.0005 lux @ F1.4 (B/W, 30 IRE)

• 0 lux (Illuminator on)

Signal-to-Noise Ratio: > 56 dB
Illumination Distance: 50 m (164.04 ft)
Illuminator Control: Auto/Manual
Number of IR LEDs: 1

Pan/Tilt/Rotation Range:

• Pan: 0°–360°

• Tilt: 0°–90°

• Rotation: 0°–360°

Lens:

• Type: Fixed-focal

• Mount: M12

• Focal Length Options: 2.8 mm, 3.6 mm, 6 mm

• Max. Aperture: F1.4

Field of View:

• 2.8 mm: Horizontal 107°, Vertical 56°, Diagonal 127°

• 3.6 mm: Horizontal 88°, Vertical 44°, Diagonal 105°

• 6 mm: Horizontal 54°, Vertical 29°, Diagonal 63°

Iris Control: Fixed
Close Focus Distance:

• 2.8 mm: 0.7 m (2.30 ft)

• 3.6 mm: 1.3 m (4.27 ft)

• 6 mm: 2.6 m (8.53 ft)

DORI Distance:

• 2.8 mm: Detect 63.6 m (208.66 ft), Observe 25.4 m (83.33 ft), Recognize 12.7 m (41.67 ft), Identify 6.4 m (21.00 ft)

• 3.6 mm: Detect 85.4 m (280.18 ft), Observe 34.2 m (112.20 ft), Recognize 17.1 m (56.10 ft), Identify 8.5 m (27.89 ft)

• 6 mm: Detect 124 m (406.82 ft), Observe 49.6 m (162.73 ft), Recognize 24.8 m (81.36 ft), Identify 12.4 m (40.68 ft)

Intelligence:

• IVS (Perimeter Protection): Tripwire and intrusion with vehicle/human classification

• AI SSA: Yes

• Quick Pick: AI NVR-assisted rapid human/vehicle selection from SMD events

• Smart Search: Intelligent event search with Smart NVR

Video:

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rates:

  • Main stream: 2688 × 1520 @ 1–25/30 fps

  • Sub stream 1: 704 × 576 @ 1–25 fps or 704 × 480 @ 1–30 fps

  • Sub stream 2: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 simultaneous streams

• Resolution Options: 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Video Bit Rate Range: 3 kbps – 8192 kbps (H.264 & H.265)

• Day/Night Modes: Auto (ICR), Color, B/W

• BLC, HLC: Supported

• WDR: 120 dB

• Noise Reduction: 3D NR

• Motion Detection: ON/OFF with 4 configurable rectangular areas

• Region of Interest: 4 areas

• Defog: Supported

• AFSA (Anti-flicker Self-adaption): Supported

• Image Rotation: 0°, 90°, 180°, 270° (90°/270° up to 2688×1520 resolution)

• Mirror: Supported

• Privacy Masking: 4 areas

Audio:

• Built-in MIC: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm Events:

• No SD card, SD full/error, service life warning (Dahua card only), network issues, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changes, audio detection, voltage detection, external alarm, SMD, safety exceptions

• Supported alarm events differ slightly by model (AS and S versions)

Network:

• Port: RJ-45 (10/100 Base-T)

• SDK & API: Yes

• Protocols Supported: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cybersecurity: Video/Firmware/Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certificate management, syslog, HTTPS, 802.1x, Trusted boot/execution/upgrade

Interoperability:

• ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec

User/Host Capacity: 20 users (64 Mbps total bandwidth)

Storage: FTP, SFTP, Micro SD (up to 256 GB), NAS

Supported Browsers: IE11, Chrome, Firefox

Management Software: Smart PSS, DSS, DMSS

Mobile Clients: iOS, Android

Certifications:

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Ports:

• Audio Input: 1 channel (RCA) (AS models only)

• Audio Output: 1 channel (RCA) (AS models only)

• Alarm Input: 1 channel, 5 mA, 3–5 VDC (AS models only)

• Alarm Output: 1 channel, 300 mA, 12 VDC (AS models only)

Power:

• Supply: 12 VDC / PoE (802.3af)

• Power Consumption:

  • Basic: 3.8 W (12 VDC), 4.6 W (PoE)

  • Max (WDR + IR + Intelligence): 5.9 W (12 VDC), 7.2 W (PoE)

Environment:

• Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), <95% RH

• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

• Protection: IP67

Structure:

• Casing Material: Metal

• Dimensions (L × W × H): 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61")

• Net Weight: 590 g (1.30 lb)

• Gross Weight: 780 g (1.72 lb)
