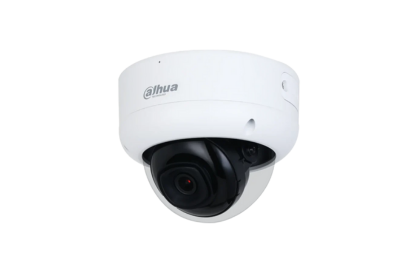

Dahua Security Camera 4MP IR Fixed-focal Dome WizSense Network Camera DH-IPC-HDBW3466EP-AS-AUS

4MP IR Fixed-focal Dome WizSense Network Camera

• 4MP 1/3" CMOS image sensor for excellent low-light performance and high-definition imaging

• Max. resolution: 2688 × 1520 @25/30 fps

• H.265 video codec for high compression efficiency and ultra-low bit rate

• Built-in IR LED with maximum IR distance of 50 m

• Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 for efficient bandwidth and storage management

• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenarios

• AFSA (Anti-Flicker Self-Adaption) function supported

• Intelligent detection functions: intrusion, tripwire (vehicle and human classification supported)

• Abnormality detection: motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

• Alarm I/O: 1 input, 1 output (Only -AS model supports)

• Audio I/O: 1 input, 1 output (Only -AS model supports), built-in microphone

• Supports Micro SD card up to 256 GB

• Power supply: 12 VDC / PoE for simplified installation

• Protection ratings: IP67 weatherproof, IK10 vandal-resistant

• Equipped with SMD 3.0 technology

• Datasheet



Camera

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.005 lux@F1.4 (Color, 30 IRE)

  • 0.0005 lux@F1.4 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 50 m

• Illuminator Control: Auto/Manual

• Illuminator Number: 3 (IR LED)

• Pan/Tilt/Rotation: Pan 0°–355°, Tilt 0°–80°, Rotation 0°–355°

Lens

• Type: Fixed-focal

• Mount: M12

• Focal Lengths: 2.8 mm / 3.6 mm / 6 mm

• Max. Aperture: F1.4

• Field of View:

  • 2.8 mm: H: 102°, V: 54°, D: 121°

  • 3.6 mm: H: 84°, V: 42°, D: 101°

  • 6 mm: H: 52°, V: 28°, D: 61°

• Iris Control: Fixed

• Close Focus Distance:

  • 2.8 mm: 1.1 m

  • 3.6 mm: 1.7 m

  • 6 mm: 3.2 m

DORI Distance

• 2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 m

• 3.6 mm: Detect 85.4 m, Observe 34.2 m, Recognize 17.1 m, Identify 8.5 m

• 6 mm: Detect 124 m, Observe 49.6 m, Recognize 24.8 m, Identify 12.4 m

Intelligence

• IVS: Tripwire, Intrusion (vehicle & human classification)

• SMD 3.0: Less false alarms, longer detection range

• Face Detection: Snapshot, enhancement, optimization, exposure, angle filter, 3 capture strategies

• Smart Search: Works with Smart NVR for intelligent search & event merging

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rate:

  • Main: 2688 × 1520 @ 1–25/30 fps

  • Sub 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps

  • Sub 2: 1920 × 1080 @ 1–25/30 fps

  • Sub 3: 1280 × 720 @ 1–25/30 fps

• Stream Capability: 4 streams

• Supported Resolutions:
  4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Video Bit Rate: H.264/H.265 – 3 kbps to 8192 kbps


• Day/Night: Auto (ICR), Color, B/W

• BLC, HLC, WDR (120 dB), SSA

• White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: 4 areas

• ROI: 4 configurable areas

• Defog: Yes

• Rotation: 0°/90°/180°/270° (supports 90°/270° at 2688×1520 or lower)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm

• Events:
  No SD card, SD error/full, network disconnection, IP conflict, illegal access, motion, tampering, tripwire, intrusion, scene change, audio detection, voltage detection, external alarm, face detection, SMD, security exception

Network

• Port: RJ-45 (10/100 Base-T)

• SDK/API: Supported

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP/RTSP/RTCP, RTMP, SMTP, FTP/SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cyber Security: Video/config encryption, account lockout, logs, MAC/IP filtering, HTTPS, 802.1x, X.509, trusted boot/execution/upgrade

• Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec

• User Access: 20 users (64 Mbps total)

• Storage: FTP, SFTP, Micro SD (max. 256 GB), NAS

• Browser Support: IE11, Chrome, Firefox

• Management Software: Smart PSS, DSS, DMSS

• Mobile Support: iOS, Android

Certification

• CE-LVD: EN62368-1

• CE-EMC: Directive 2014/30/EU

• FCC: Part 15 Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Ports

• Audio Input: 1 channel (3.5 mm jack)

• Audio Output: 1 channel (3.5 mm jack)

• Alarm Input: 1 in (5 mA, 3–5 VDC)

• Alarm Output: 1 out (300 mA, 12 VDC)

Power

• Supply: 12 VDC / PoE (802.3af)

• Consumption:

  • Basic: 2.8 W (12 VDC), 3.5 W (PoE)

  • Max (WDR + IR + AI): 7.1 W (12 VDC), 8.3 W (PoE)

Environment

• Operating Temp: –40°C to +60°C / <95% RH

• Storage Temp: –40°C to +60°C

• Protection: IP67, IK10

Physical

• Casing: Metal

• Dimensions: 89.1 mm × Φ111.7 mm

• Net Weight: 516 g

• Gross Weight: 670 g
