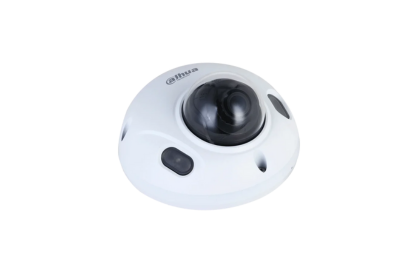

Dahua DH-IPC-HDBW3466FP-AS-AUS Security Camera 4MP IR Fixed-focal Dome WizSense Network Camera DH-IPC-HDBW3466FP-AS-AUS

4MP IR Fixed-focal Dome WizSense Network Camera

• 4 MP 1/3" CMOS image sensor for high-definition imaging with excellent low-light performance

• Delivers up to 4 MP (2688 × 1520) resolution at 25/30 fps

• H.265 video compression for high efficiency and ultra-low bit rate

• Built-in IR LEDs with a maximum distance of 30 meters

• Supports ROI, Smart H.264+/H.265+, and AI H.264/H.265 for adaptable bandwidth and storage usage

• Includes rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring needs

• Intelligent detection: tripwire and intrusion (with accurate classification of human and vehicle)

• Abnormality detection features: motion, privacy masking, scene change, audio detection, SD card issues, network disconnection, IP conflict, illegal access, voltage alerts

• Interfaces: 1 alarm input, 1 alarm output, 1 audio input, 1 audio output, built-in microphone

• Supports up to 256 GB Micro SD card storage

• Powered by 12 VDC or PoE for flexible installation

• Rugged protection with IP67 weatherproof and IK10 vandal-resistant housing

• Advanced features: SMD 4.0 and AI SSA for smart surveillance analytics

• Datasheet



Camera

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Minimum Illumination:

  • 0.005 lux@F1.4 (Color, 30 IRE)

  • 0.0005 lux@F1.4 (B/W, 30 IRE)

  • 0.01 lux@F2.0 (Color, 30 IRE)

  • 0.001 lux@F2.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 30 m (98.43 ft)

• Illuminator On/Off: Auto/Manual

• Illuminator Count: 2 (IR LED)

• Pan/Tilt/Rotation: Pan 0°–355°, Tilt -20°–70°, Rotation 0°–355°

Lens

• Type: Fixed-focal

• Mount: M12

• Focal Lengths: 2.1 mm, 2.8 mm, 3.6 mm, 6 mm

• Max. Aperture:

  • 2.1 mm: F2.0

  • 2.8 mm / 3.6 mm / 6 mm: F1.4

• Field of View:

  • 2.1 mm: H 137°, V 70°, D 142°

  • 2.8 mm: H 102°, V 54°, D 121°

  • 3.6 mm: H 84°, V 42°, D 101°

  • 6 mm: H 52°, V 28°, D 61°

• Iris: Fixed

• Close Focus Distance:

  • 2.1 mm: 0.5 m

  • 2.8 mm: 0.9 m

  • 3.6 mm: 1.6 m

  • 6 mm: 3.2 m

DORI Distance

• 2.1 mm: Detect 52 m, Observe 20.8 m, Recognize 10.4 m, Identify 5.2 m

• 2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 m

• 3.6 mm: Detect 85.4 m, Observe 34.2 m, Recognize 17.1 m, Identify 8.5 m

• 6 mm: Detect 124 m, Observe 49.6 m, Recognize 24.8 m, Identify 12.4 m

Intelligence

• IVS (Perimeter Protection): Tripwire, Intrusion (vehicle/human classification)

• AI SSA: Yes

• Quick Pick: With AI NVR, quick target filtering

• Smart Search: With Smart NVR, intelligent event filtering and extraction

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rates:

  • Main: 2688×1520 @ 1–25/30 fps

  • Sub 1: 704×576 @ 1–25 fps / 704×480 @ 1–30 fps

  • Sub 2: 1920×1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Resolutions Supported:

  • 4M (2688×1520), 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Bit Rate: H.264/H.265: 3 kbps – 8192 kbps

• Day/Night: Auto (ICR) / Color / B/W

• BLC/HLC: Yes

• WDR: 120 dB

• SSA: Yes

• White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: 4 zones (rectangular)

• RoI: 4 configurable areas

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0°/90°/180°/270° (supports 2688×1520 or lower)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Built-in Mic: Yes

• Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm

• Events:

  • No SD card, SD full/error, SD lifespan warning (Dahua card), network issues, IP conflict, illegal access, motion, tampering, intrusion, tripwire, scene change, audio detection, voltage detection, external alarm, SMD, safety exception

Network

• Port: RJ-45 (10/100 Base-T)

• SDK/API: Yes

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP/RTSP/RTCP/RTMP, FTP/SFTP, SMTP, DHCP, DNS/DDNS, QoS, NTP, UPnP, ICMP, IGMP, SAMBA, PPPoE, SNMP

• Cybersecurity:

  • Video/Firmware/Config Encryption

  • WSSE, Digest, Account Lockout, Security Logs, IP/MAC Filtering

  • HTTPS, 802.1x, X.509 Certificate, Syslog, Trusted Boot/Execution/Upgrade

• Interoperability: ONVIF (S, G, T), CGI, P2P, Milestone, Genetec

• User Access: 20 users (64 Mbps total bandwidth)

• Storage: FTP, SFTP, Micro SD (up to 256 GB), NAS

• Browser Support: IE11, Chrome, Firefox

• Management Software: Smart PSS, DSS, DMSS

• Mobile Support: iOS, Android

Certification

• CE-LVD: EN62368-1

• CE-EMC: EMC Directive 2014/30/EU

• FCC: Part 15, Subpart B

• UL/CUL: UL62368-1, CAN/CSA C22.2 No. 62368-1-14

Port Interfaces

• Audio In: 1 channel (RCA)

• Audio Out: 1 channel (RCA)

• Alarm In: 1 channel, 5 mA 3–5 VDC

• Alarm Out: 1 channel, 300 mA 12 VDC

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption:

  • Basic: 3.8 W (12 VDC), 4.6 W (PoE)

  • Max: 5.9 W (12 VDC), 7.2 W (PoE)

Environment

• Operating Temp: –40 °C to +60 °C / <95% RH

• Storage Temp: –40 °C to +60 °C

• Protection: IP67, IK10

Structure

• Casing: Metal

• Dimensions: 64.8 mm × Φ111.0 mm (2.55" × Φ4.37")

• Net Weight: 423 g (0.93 lb)

• Gross Weight: 530 g (1.17 lb)
