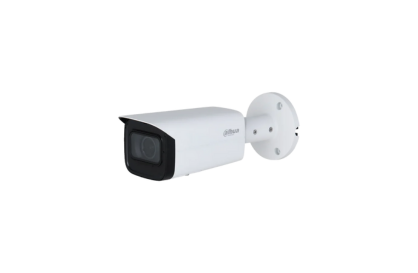

Dahua Security Camera 4MP IR Vari-focal Bullet WizSense Network Camera DH-IPC-HFW3466TP-ZAS-AUS

4MP IR Vari-focal Bullet WizSense Network Camera

• 4-MP 1/3" CMOS image sensor with excellent low-light performance and high image clarity

• Maximum output resolution: 2688 × 1520 @ 25/30 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in IR LED with a maximum IR distance of 60 m

• Supports ROI, Smart H.264+/H.265+ for flexible bandwidth and storage options

• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenes

• Intelligent detection: Intrusion, tripwire (with accurate human/vehicle classification)

• Abnormality detection: Motion, privacy masking, scene change, audio detection, no SD card, full/error SD card, network disconnection, IP conflict, illegal access, voltage detection

• Alarm: 1 input, 1 output (ZAS models only)

• Audio: 1 input, 1 output (ZAS models only); built-in microphone

• Supports up to 256 GB Micro SD card

• Powered via 12 VDC or PoE for easier installation

• Durable design with IP67 weather resistance and optional IK10 vandal protection

• Equipped with SMD 4.0 and AI Scene Self-adaptation (AI SSA)

• Datasheet



Camera

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual, 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.005 lux@F1.5 (Color, 30 IRE)

  • 0.0005 lux@F1.5 (B/W, 30 IRE)

  • 0 lux with IR on

• S/N Ratio: >56 dB

• IR Distance: 60 m (196.85 ft)

• IR Control: Auto/Manual

• IR LEDs: 4

• Pan/Tilt/Rotation: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°

---

Lens

• Type: Motorized vari-focal

• Mount: φ14

• Focal Length: 2.7 mm–13.5 mm

• Max. Aperture: F1.5

• Field of View:

  • Horizontal: 104°–29°

  • Vertical: 54°–16°

  • Diagonal: 125°–33°

• Iris Control: Fixed

• Close Focus Distance: 0.8 m (2.62 ft)

---

DORI Distance

• Wide (W)

  • Detect: 64.0 m

  • Observe: 25.6 m

  • Recognize: 12.8 m

  • Identify: 6.4 m

• Tele (T)

  • Detect: 210.0 m

  • Observe: 84.0 m

  • Recognize: 42.0 m

  • Identify: 21.0 m

---

Intelligence

• IVS: Tripwire, intrusion (with vehicle/human classification)

• AI SSA: Supported

• Quick Pick: Supports AI-assisted event filtering with AI NVR

• Smart Search: Intelligent search, event extraction and merging with Smart NVR

---

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rate:

  • Main: 2688 × 1520 @ 1–25/30 fps

  • Sub 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps

  • Sub 2: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Resolution Options:

  • 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Video Bit Rate:

  • H.264: 3–8192 kbps

  • H.265: 3–8192 kbps

• Day/Night: Auto (ICR), Color, B/W

• BLC/HLC/WDR: Yes, 120 dB WDR

• SSA: Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• 3D NR: Yes

• Motion Detection: On/Off (4 rectangular areas)

• Image Stabilization: EIS

• ROI: 4 areas

• Defog: Yes

• AFSA: Yes

• Rotation: 0°/90°/180°/270°

• Mirror: Yes

• Privacy Masking: 4 areas

---

Audio

• Built-in MIC: Yes

• Compression: G.711a, G.711Mu, PCM, G.726, G.723

---

Alarm

• ZAS model:

  • Events: No SD, SD full/error, Dahua card service warning, network/IP issues, illegal access, motion, tampering, intrusion, tripwire, scene change, audio, voltage, defocus, external alarm, SMD, safety exception

• ZS model:

  • Same as ZAS, minus external alarm support

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• SDK/API: Supported

• Cybersecurity:

  • Video/Firmware/Config encryption, Digest, WSSE, Account lockout, IP/MAC filtering

  • X.509 certs, syslog, HTTPS, 802.1x, Trusted boot/execution/upgrade

• Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec

• Users: 20 (Max bandwidth: 64 Mbps)

• Storage: FTP/SFTP, Micro SD (up to 256 GB), NAS

• Browser Support: IE11, Chrome, Firefox

• Software: Smart PSS, DSS, DMSS

• Mobile: iOS, Android

---

Certification

• CE-LVD: EN62368-1

• CE-EMC: EMC Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

---

Ports (ZAS models only)

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

• Alarm Input: 1 (5 mA, 3–5 VDC)

• Alarm Output: 1 (300 mA, 12 VDC)

---

Power

• Supply: 12 VDC / PoE (802.3af)

• Consumption:

  • Basic: 2.8 W (12 VDC), 3.6 W (PoE)

  • Max: 7.9 W (12 VDC), 9.2 W (PoE)

---

Environment

• Operating Temp: –30 °C to +60 °C (–22 °F to +140 °F), <95% RH

• Storage Temp: –40 °C to +60 °C (–40 °F to +140 °F)

• Protection: IP67

---

Structure

• Casing: Metal

• Dimensions: 244.1 × 79.0 × 75.9 mm (9.61" × 3.11" × 3.00")

• Net Weight: 820 g (1.81 lb)

• Gross Weight: 1090 g (2.40 lb)
