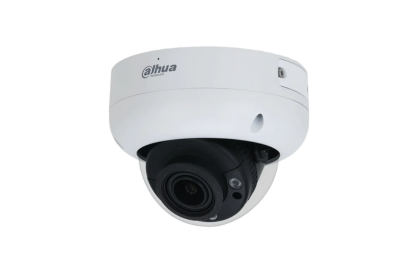

Dahua Security Camera 4MP IR Vari-focal Dome WizSense Network Camera DH-IPC-HDBW3466RP-ZAS-AUS

4MP IR Vari-focal Dome WizSense Network Camera

• 4 MP 1/3" CMOS image sensor with excellent low-light performance and high-definition imaging

• Max. resolution: 2688 × 1520 @25/30 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in IR LED with a maximum IR distance of 40 m

• Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 for flexible coding across various bandwidth and storage environments

• Features: Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for enhanced adaptability to different monitoring scenarios

• Intelligent detection: Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)

• Abnormality detection: Motion detection, privacy masking, scene change, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

• Alarm I/O: 1 input, 1 output (only on -ZAS model)

• Audio I/O: 1 input, 1 output (only on -ZAS model)

• Built-in microphone

• Supports Micro SD card up to 256 GB

• Power supply: 12 VDC / PoE

• Protection: IP67 (weatherproof), IK10 (vandal-resistant)

• Supports SMD 4.0 and AI SSA

• Datasheet



Camera

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.005 lux@F1.5 (Color, 30 IRE)

  • 0.0005 lux@F1.5 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 40 m (131.23 ft)

• Illuminator On/Off Control: Auto/Manual

• Illuminator Number: 3 (IR LED)

• Pan/Tilt/Rotation: Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°

---

Lens

• Lens Type: Motorized vari-focal

• Lens Mount: φ14

• Focal Length: 2.7 mm–13.5 mm

• Max. Aperture: F1.5

• Field of View:

  • Horizontal: 104°–29°

  • Vertical: 54°–16°

  • Diagonal: 125°–33°

• Iris Control: Fixed

• Close Focus Distance: 0.8 m (2.62 ft)

---

DORI Distance

• Wide (2.7 mm):

  • Detect: 64.0 m

  • Observe: 25.6 m

  • Recognize: 12.8 m

  • Identify: 6.4 m

• Tele (13.5 mm):

  • Detect: 210.0 m

  • Observe: 84.0 m

  • Recognize: 42.0 m

  • Identify: 21.0 m

---

Intelligence

• IVS (Perimeter Protection): Tripwire, intrusion (human/vehicle classification)

• AI SSA: Yes

• Quick Pick: Yes, with AI NVR

• Smart Search: Yes, with Smart NVR

---

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rate:

  • Main stream: 2688 × 1520 @ 1–25/30 fps

  • Sub stream 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps

  • Sub stream 2: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Resolution Options:
  4M, 3.6M, 3M (2048×1536 / 2304×1296), 1080p, 1.3M, 720p, D1, CIF, VGA

• Bit Rate Control: CBR/VBR

• Bit Rate Range:

  • H.264: 3 kbps–8192 kbps

  • H.265: 3 kbps–8192 kbps

---


• Day/Night: Auto (ICR) / Color / B/W

• BLC / HLC / WDR: Yes, WDR 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 areas)

• Image Stabilization: EIS

• Region of Interest (RoI): 4 areas

• Defog: Yes

• AFSA: Yes

• Rotation: 0° / 90° / 180° / 270° (support at 2688×1520 and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

---

Audio

• Built-in Mic: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

---

Alarm

• Alarm Events (ZAS version):
  No SD card, SD card full/error, service life warning, network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene change, audio detection, voltage detection, defocus, external alarm, SMD, safety exception

• Alarm Events (ZS version):
  Same as ZAS but without external alarm

---

Network

• Port: RJ-45 (10/100 Base-T)

• SDK/API: Yes

• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cybersecurity:
  Video/firmware/config encryption, digest, WSSE, IP/MAC filtering, security logs, X.509 certs, HTTPS, 802.1x, trusted boot/execution/upgrade

• Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec

• User Access: 20 users, total bandwidth 64 Mbps

• Storage: FTP, SFTP, Micro SD (up to 256 GB), NAS

• Browser Support: IE11, Chrome, Firefox

• Management Software: Smart PSS, DSS, DMSS

• Mobile App: iOS, Android

---

Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

---

Ports (ZAS version only)

• Audio Input: 1 channel (RCA)

• Audio Output: 1 channel (RCA)

• Alarm Input: 1 channel (5 mA, 3–5 VDC)

• Alarm Output: 1 channel (300 mA, 12 VDC)

---

Power

• Supply: 12 VDC / PoE (802.3af)

• Consumption:

  • Basic: 2.8 W (12 VDC), 3.6 W (PoE)

  • Max: 7.9 W (12 VDC), 9.2 W (PoE)

---

Environment

• Operating Temp: –30 °C to +60 °C (–22 °F to 140 °F), <95% RH

• Storage Temp: –40 °C to +60 °C (–40 °F to 140 °F)

• Protection: IP67, IK10

---

Structure

• Casing: Metal

• Dimensions: 94 mm × Φ122 mm (3.7" × Φ4.8")

• Net Weight: 713 g (1.57 lb)

• Gross Weight: 986 g (2.17 lb)
