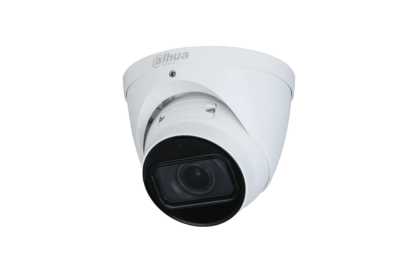

Dahua Security Camera 4MP IR Vari-focal Eyeball WizSense Network Camera DH-IPC-HDW3466TP-ZS-AUS

4MP IR Vari-focal Eyeball WizSense Network Camera

• 4-MP 1/3" CMOS image sensor, delivers excellent low luminance performance and high definition images.

• Outputs max. 4 MP (2688 × 1520) at 25/30 fps.

• Uses H.265 codec for high compression rate and ultra-low bit rate.

• Built-in IR LED with a maximum IR distance of 40 m.

• Supports ROI, SMART H.264+/H.265+, AI H.264/H.265 with flexible coding for various bandwidth and storage environments.

• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, suitable for diverse monitoring scenarios.

• Intelligent detection includes intrusion and tripwire with classification and accurate detection of vehicles and humans.

• Abnormality detection covers motion detection, privacy masking, scene change, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, and voltage detection.

• Supports up to 256 GB Micro SD card and has a built-in microphone.

• Powered by 12 VDC or PoE for easy installation.

• IP67 rated for protection against dust and water.

• Includes SMD 4.0 and AI Scene Self-adaptation (SSA).

• Datasheet



Camera

• Image Sensor: 1/3" CMOS

• Max. Resolution: 2688 (H) × 1520 (V)

• ROM: 128 MB

• RAM: 512 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.005 lux@F1.5 (Color, 30 IRE)

  • 0.0005 lux@F1.5 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 40 m (131.23 ft)

• Illuminator On/Off Control: Auto/Manual

• Illuminator Number: 2 (IR LED)

• Pan/Tilt/Rotation Range:

  • Pan: 0°–360°

  • Tilt: 0°–78°

  • Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal

• Lens Mount: φ14

• Focal Length: 2.7 mm–13.5 mm

• Max. Aperture: F1.5

• Field of View:

  • Horizontal: 104°–29°

  • Vertical: 54°–16°

  • Diagonal: 125°–33°

• Iris Control: Fixed

• Close Focus Distance: 0.8 m (2.62 ft)

DORI Distance

• Wide:

  • Detect: 64.0 m (209.97 ft)

  • Observe: 25.6 m (83.99 ft)

  • Recognize: 12.8 m (41.99 ft)

  • Identify: 6.4 m (21.00 ft)

• Tele:

  • Detect: 210.0 m (688.98 ft)

  • Observe: 84.0 m (275.59 ft)

  • Recognize: 42.0 m (137.80 ft)

  • Identify: 21.0 m (68.90 ft)

Intelligence

• IVS (Perimeter Protection): Tripwire, intrusion (supports classification and accurate detection of vehicle and human)

• AI SSA: Yes

• Quick Pick: Quickly pick human/vehicle targets from SMD events with AI NVR

• Smart Search: Intelligent search, event extraction and merging with Smart NVR

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only sub stream)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Video Frame Rate:

  • Main stream: 2688 × 1520 @ (1–25/30) fps

  • Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)

  • Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

• Stream Capability: 3 streams

• Resolution Options: 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1; VGA; CIF

• Bit Rate Control: CBR/VBR

• Video Bit Rate:

  • H.264: 3 kbps–8192 kbps

  • H.265: 3 kbps–8192 kbps

Other Features

• Day/Night: Auto (ICR)/Color/B/W

• BLC: Yes

• HLC: Yes

• WDR: 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: ON/OFF (4 areas, rectangular)

• Image Stabilization: Electronic Image Stabilization (EIS)

• Region of Interest (RoI): Yes (4 areas)

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm

• Alarm Events:

  • No SD card, SD card full, SD card error, service life warning (Dahua card only)

  • Network disconnection, IP conflict, illegal access

  • Motion detection, video tampering, intrusion, tripwire

  • Scene changing, audio detection, voltage detection

  • Defocus detection, SMD, safety exception

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cyber Security: Video encryption, Firmware encryption, Configuration encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, X.509 certification, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade

• Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec

• User/Host: 20 (Total bandwidth: 64 M)

Storage

• FTP, SFTP, Micro SD card (max 256 GB), NAS

Browser Support

• IE11, Chrome, Firefox

Management Software

• Smart PSS, DSS, DMSS

Mobile Client

• iOS, Android

Certification

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input: 1 channel (RCA port)

• Audio Output: 1 channel (RCA port)

• Alarm Input: 1 channel in: 5 mA 3–5 V DC

• Alarm Output: 1 channel out: 1,000 mA 30 V DC / 500 mA 50 V DC

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption:

  • Basic: 4.0 W (12 VDC); 5.2 W (PoE)

  • Max (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 8.5 W (PoE)

Environment

• Operating Temperature: –30 °C to +60 °C (–22 °F to 140 °F) / Less than 95% RH

• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

• Protection: IP67

Structure

• Casing: Metal

• Product Dimensions: 108.3 mm × Φ122 mm (4.26" × Φ4.8")

• Net Weight: 715 g (1.58 lb)

• Gross Weight: 915 g (2.02 lb)
