Description

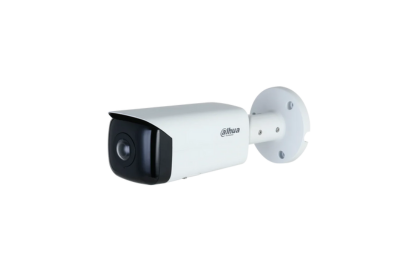

4MP Wide Angle Fixed Bullet WizSense Network Camera
-
4-MP 1/2.7" CMOS starlight-grade image sensor, delivering low luminance and high definition images.
-
Outputs 4 MP (2688 × 1520) at 25/30 fps and supports up to 5 MP (2880 × 1620) at 20 fps.
-
H.265 codec provides a high compression rate with ultra-low bit rate.
-
Built-in IR LED with a maximum illumination distance of 20 meters.
-
Supports ROI, SMART H.264+/H.265+, AI H.264/H.265 for flexible coding suited to various bandwidth and storage environments.
-
Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile monitoring scenarios.
-
Intelligent monitoring functions include intrusion and tripwire, both supporting classification and accurate detection of vehicles and humans.
-
Abnormality detection covers motion detection, video tampering, scene changes, audio detection, no SD card, full SD card, SD card errors, network disconnection, IP conflict, illegal access, and voltage detection.
-
Alarm: 1 input, 1 output; Audio: 1 input, 1 output.
-
Supports up to 256 GB Micro SD card; built-in microphone included.
-
Powered by 12 VDC or PoE.
-
IP67 rated for protection against dust and water.
-
EPTZ function to enlarge and track targets detected by intelligent alarms.
-
SMD 3.0 technology.
- Datasheet
Camera
Image Sensor: 1/2.7" CMOS
Max. Resolution: 2880 (H) × 1620 (V)
ROM: 128 MB
RAM: 512 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s
Min. Illumination:
-
0.01 lux @ F2.0 (Color, 30 IRE)
-
0.001 lux @ F2.0 (B/W, 30 IRE)
-
0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: 20 m (65.62 ft) (IR LED)
Illuminator On/Off Control: Auto
Illuminator Number: 2 (IR LED)
Pan/Tilt/Rotation Range:
-
Pan: 0°–360°
-
Tilt: 0°–90°
-
Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.1 mm
Max. Aperture: F2.0
Field of View:
-
LDC disabled: Horizontal 180°, Vertical 78°, Diagonal 180°
-
LDC enabled (default): Horizontal 170°, Vertical 75°, Diagonal 175°
Close Focus Distance: 0.6 m (1.97 ft)
DORI Distance
-
Detect: 52.0 m (170.60 ft)
-
Observe: 20.8 m (68.24 ft)
-
Recognize: 10.4 m (34.12 ft)
-
Identify: 5.2 m (17.06 ft)
Intelligence
-
IVS (Perimeter Protection): Intrusion, tripwire (support classification and accurate detection of vehicles and humans)
-
SMD 3.0: Less false alarm, longer detection distance
-
Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and merging
Video
Video Compression: H.265; H.264; H.264B; MJPEG (sub stream only)
Smart Codec: Smart H.265+; Smart H.264+
AI Coding: AI H.265; AI H.264
Video Frame Rate:
-
Main stream: 2880 × 1620 @ (1–20 fps) / 2688 × 1520 @ (1–25/30 fps)
-
Sub stream: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)
-
Third stream: 1920 × 1080 @ (1–25/30 fps)
Note: Max frame rates per stream; total encoding capacity limits apply.
Stream Capability: 3 streams
Resolution Options:
5M (2880 × 1620); 4M (2688 × 1520 / 2560 × 1440); 3M (2048 × 1536); 2304 × 296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate:
-
H.264: 3 kbps – 8192 kbps
-
H.265: 3 kbps – 8192 kbps
Day/Night: Auto (ICR) / Color / B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
Scene Self-adaptation (SSA): Yes
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
Gain Control: Auto, Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Defog: Yes
Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688 × 1520 resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas
Audio
-
Built-in MIC: Yes
-
Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Events:
-
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
-
Network Port: RJ-45 (10/100 Base-T)
-
SDK and API: Yes
-
Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P
User/Host: 20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (supports up to 256 GB); NAS
Browser Compatibility
Internet Explorer (IE11), Chrome, Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
-
CE-LVD: EN62368-1
-
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
-
FCC: 47 CFR FCC Part 15, Subpart B
-
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
-
Audio Input: 1 channel (RCA port)
-
Audio Output: 1 channel (RCA port)
-
Alarm Input: 1 channel in: 5 mA, 3–5 V DC
-
Alarm Output: 1 channel out: 1000 mA 30 V DC / 500 mA 50 V DC
Power
-
Power Supply: 12 VDC / PoE
-
Power Consumption:
-
Basic: 3.1 W (12 V DC); 5.3 W (PoE)
-
Max (H.265 + main stream / IR intensity + IR on): 4 W (12 V DC); 6.5 W (PoE)
-
Environment
-
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F), less than 95% RH
-
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
-
Protection: IP67
Structure
-
Casing: Metal
-
Product Dimensions: 249.3 mm × 90.7 mm × 90.4 mm (9.81" × 3.57" × 3.56") (L × W × H)
-
Net Weight: 820 g (1.81 lb)
-
Gross Weight: 1090 g (2.40 lb)
