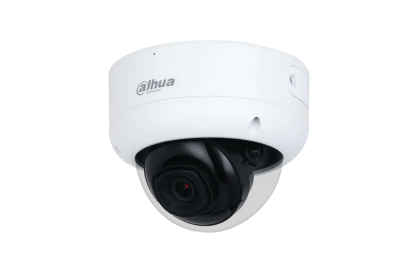

Dahua Security Camera 6MP IR Fixed-focal Dome WizSense Network Camera DH-IPC-HDBW3666EP-AS-AUS

6MP IR Fixed-focal Dome WizSense Network Camera

• 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images

• Outputs max. 6 MP (3072 × 2048) @ 25/30 fps

• H.265 codec allows high compression ratio and ultra-low bit rate

• Built-in IR LED, max. IR distance: 30 m

• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding suitable for various bandwidth and storage environments

• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

• Intelligent detection: Intrusion, tripwire (supports classification and accurate detection of vehicle and human)

• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

• Alarm: 1 input, 1 output (only - AS supports); audio: 1 input, 1 output (only - AS supports)

• Max. 256 GB Micro SD card support; built-in microphone

• 12 VDC / PoE power supply, easy installation

• IP67 and IK10 protection

• SMD 4.0, AI SSA

• Datasheet



Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3072 (H) × 2048 (V)

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s

• Min. Illumination:
  • 0.005 lux @ F1.4 (Color, 30 IRE)
  • 0.0005 lux @ F1.4 (B/W, 30 IRE)
  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 30 m (98.43 ft)

• Illuminator On/Off Control: Auto/Manual

• Illuminator Number: 3 (IR LED)

• Pan/Tilt/Rotation Range:
  • Pan: 0°–355°
  • Tilt: 0°–80°
  • Rotation: 0°–355°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 2.8 mm; 3.6 mm

• Max. Aperture: F1.4

• Field of View:
  • 2.8 mm: Horizontal 111°, Vertical 58°, Diagonal 132°
  • 3.6 mm: Horizontal 92°, Vertical 45°, Diagonal 110°

• Iris Control: Fixed

• Close Focus Distance:
  • 2.8 mm: 1.1 m (3.61 ft)
  • 3.6 mm: 1.7 m (18.37 ft)

DORI Distance

For 2.8 mm lens:

• Detect: 63.6 m (208.66 ft)

• Observe: 25.4 m (83.33 ft)

• Recognize: 12.7 m (41.67 ft)

• Identify: 6.4 m (21.00 ft)

For 3.6 mm lens:

• Detect: 85.4 m (280.18 ft)

• Observe: 34.2 m (112.20 ft)

• Recognize: 17.1 m (56.10 ft)

• Identify: 8.5 m (27.89 ft)

Intelligence

• IVS (Perimeter Protection): Tripwire, intrusion (supports classification and accurate detection of vehicle and human)

• AI SSA: Yes

• Quick Pick: Quickly pick human/vehicle targets from SMD events with AI NVR

• Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and video merging

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Video Frame Rate:
  • Main stream: 3072 × 2048 @ 1–25/30 fps
  • Sub stream 1: 704 × 576 @ 1–25 fps or 704 × 480 @ 1–30 fps
  • Sub stream 2: 1920 × 1080 @ 1–25/30 fps

• Stream Capability: 3 streams

• Resolution Options: 6M (3072 × 2048), 5M (2592 × 1668), 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), CIF (352 × 288 / 352 × 240), VGA (640 × 480)

• Bit Rate Control: CBR/VBR

• Video Bit Rate:
  • H.264: 3 kbps–8192 kbps
  • H.265: 3 kbps–8192 kbps

• Day/Night: Auto (ICR) / Color / B/W

• BLC: Yes

• HLC: Yes

• WDR: 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: ON/OFF (4 areas, rectangular)

• Region of Interest (RoI): Yes (4 areas)

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0°, 90°, 180°, 270° (supports 90°/270° with 2688×1520 resolution and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm

• Alarm Events (AS model): No SD card; SD card full; SD card error; service life warning (Dahua card only); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception

• Alarm Events (S model): Same as above, except no external alarm

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

Cyber Security

• Video encryption, firmware encryption, configuration encryption, digest, WSSE, account lockout, security logs, IP/MAC filtering, generation/importing of X.509 certificates, syslog, HTTPS, 802.1x, trusted boot, trusted execution, trusted upgrade

Interoperability

• ONVIF (Profile S, G, T), CGI, P2P, Milestone, Genetec

User/Host Capacity

• 20 (Total bandwidth: 64 M)

Storage

• FTP, SFTP, Micro SD card (max 256 GB), NAS

Browser Compatibility

• IE11, Chrome, Firefox

Management Software

• Smart PSS, DSS, DMSS

Mobile Client

• iOS, Android

Certification

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Ports

• Audio Input: 1 channel (RCA, AS models only)

• Audio Output: 1 channel (RCA, AS models only)

• Alarm Input: 1 channel in; 5 mA, 3–5 VDC (AS models only)

• Alarm Output: 1 channel out; 300 mA, 12 VDC (AS models only)

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption:
  • Basic: 4 W (12 VDC); 4.9 W (PoE)
  • Max (WDR + IR + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE)

Environment

• Operating Temperature: –40°C to +60°C (–40°F to 140°F), less than 95% RH

• Storage Temperature: –40°C to +60°C (–40°F to 140°F)

• Protection: IP67; IK10

Structure

• Casing: Metal

• Product Dimensions: 89.1 mm × Φ111.7 mm (3.50" × Φ4.40")

• Net Weight: 516 g (1.14 lb)

• Gross Weight: 670 g (1.48 lb)
