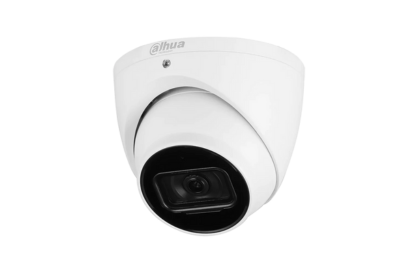

Dahua Security Camera 6MP IR Fixed-focal Eyeball WizSense Starlight Turret 2.8mm Network Camera DH-IPC-HDW3666EMP-S-AUS White

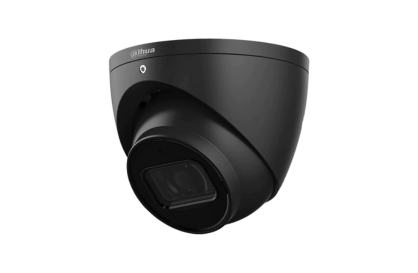

6MP IR Fixed-focal Eyeball WizSense Network Camera

• 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition images

• Outputs max. 6 MP (3072 × 2048) at 25/30 fps

• H.265 codec for high compression rate and ultra-low bit rate

• Built-in IR LED with max. IR distance of 30 m

• ROI, SMART H.264+/H.265+, AI H.264/H.265 for flexible coding, suitable for various bandwidth and storage environments

• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking for diverse monitoring scenes

• Intelligent detection including intrusion and tripwire with vehicle/human classification support

• Abnormality detection for motion, privacy masking, scene changes, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, and voltage detection

• Supports up to 256 GB Micro SD card; built-in microphone

• 12 VDC/PoE power supply for easy installation

• IP67 rated for protection

• Features SMD 4.0 and AI SSA

• Datasheet



Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3072 (H) × 2048 (V)

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

• 0.005 lux @ F1.4 (Color, 30 IRE)

• 0.0005 lux @ F1.4 (B/W, 30 IRE)

• 0 lux (Illuminator on)

S/N Ratio: >56 dB
Illumination Distance: 30 m (164.04 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 2 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°

• Tilt: 0°–78°

• Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal

• Lens Mount: M12

• Focal Length: 2.8 mm; 3.6 mm

• Max. Aperture: F1.4

Field of View:

• 2.8 mm: Horizontal 97°, Vertical 71°, Diagonal 129°

• 3.6 mm: Horizontal 80°, Vertical 57°, Diagonal 107°

Iris Control: Fixed
Close Focus Distance:

• 2.8 mm: 1.1 m (3.61 ft)

• 3.6 mm: 1.7 m (5.58 ft)

DORI Distance:

• 2.8 mm

  • Detect: 63.6 m (208.66 ft)

  • Observe: 25.4 m (83.33 ft)

  • Recognize: 12.7 m (41.67 ft)

  • Identify: 6.4 m (21.00 ft)

• 3.6 mm

  • Detect: 85.4 m (280.18 ft)

  • Observe: 34.2 m (112.20 ft)

  • Recognize: 17.1 m (56.10 ft)

  • Identify: 8.5 m (27.89 ft)

---

Intelligence

• IVS (Perimeter Protection): Tripwire, intrusion (supports classification and accurate detection of vehicle and human)

• AI SSA: Yes

• Quick Pick: AI NVR quickly picks human/vehicle targets from SMD events

• Smart Search: Works with Smart NVR to refine intelligent search, event extraction, and merge to event videos

---

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Video Frame Rate:

  • Main stream: 3072 × 2048 @ (1–25/30) fps

  • Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)

  • Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
    (Max frame rates; total encoding capacity applies for multiple streams)

• Stream Capability: 3 streams

• Resolution:
  6M (3072×2048); 5M (2592×1944); 4M (2688×1520); 3.6M (2560×1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); CIF (352×288/352×240); VGA (640×480)

• Bit Rate Control: CBR/VBR

• Video Bit Rate:

  • H.264: 3 kbps–8192 kbps

  • H.265: 3 kbps–8192 kbps

• Day/Night: Auto (ICR) / Color / B/W

• BLC: Yes

• HLC: Yes

• WDR: 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: OFF/ON (4 areas, rectangular)

• Region of Interest (RoI): Yes (4 areas)

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0°/90°/180°/270° (supports 90°/270° with 2688×1520 resolution and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

---

Audio

• Built-in MIC: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

---

Alarm

• Alarm Event: No SD card, SD card full, SD card error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, SMD, safety exception

---

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cyber Security: Video encryption, firmware encryption, configuration encryption, digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation/import, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade

• Interoperability: CGI, P2P, Milestone, Genetec

• User/Host Capacity: 20 (Total bandwidth: 64 M)

• Storage: FTP, SFTP, Micro SD card (max 256 GB), NAS

• Browser Support: IE11, Chrome, Firefox

• Management Software: Smart PSS, DSS, DMSS

• Mobile Client: iOS, Android

---

Certification

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• FCC: 47 CFR FCC Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

---

Power

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption:

  • Basic: 4.3 W (12 VDC); 4.9 W (PoE)

  • Max (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)

---

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), less than 95% RH

• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

• Protection: IP67

---

Structure

• Casing: Metal

• Product Dimensions: 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")

• Net Weight: 500 g (1.10 lb)

• Gross Weight: 770 g (1.70 lb)
