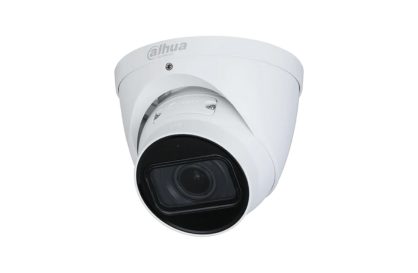

Dahua Security Camera 6MP IR Vari-focal Eyeball WizSense Network Camera DH-IPC-HDW3666TP-ZS-AUS

6MP IR Vari-focal Eyeball WizSense Network Camera

• 6MP 1/2.7" CMOS image sensor with excellent low-light performance and high image clarity

• Outputs up to 6MP (3072 × 2048) at 25/30 fps

• H.265 codec for high compression and ultra-low bit rate

• Built-in IR LED with a maximum distance of 40 m

• Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 for flexible bandwidth and storage

• Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile scenes

• Intelligent detection: intrusion and tripwire with vehicle/human classification

• Abnormality detection: motion detection, privacy masking, scene change, audio detection, SD card status, network disconnection, IP conflict, illegal access, voltage issues

• Supports up to 256 G Micro SD card and includes built-in microphone

• 12 VDC/PoE power supply for simple installation

• IP67 rated for outdoor use

• Supports SMD 4.0 and AI Scene Self-adaptation (AI SSA)

• Datasheet



Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3072 (H) × 2048 (V)

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Minimum Illumination:

  • 0.005 lux @ F1.5 (Color, 30 IRE)

  • 0.0005 lux @ F1.5 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• Signal-to-Noise Ratio: >56 dB

• Illumination Distance: 40 m (131.23 ft)

• Illuminator On/Off Control: Auto/Manual

• Number of Illuminators: 2 (IR LED)

• Pan/Tilt/Rotation Range:

  • Pan: 0°–360°

  • Tilt: 0°–78°

  • Rotation: 0°–360°

---

Lens

• Lens Type: Motorized vari-focal

• Lens Mount: φ14

• Focal Length: 2.7 mm to 13.5 mm

• Max. Aperture: F1.5

• Field of View:

  • Horizontal: 99° to 28°

  • Vertical: 71° to 21°

  • Diagonal: 134° to 35°

• Iris Control: Fixed

• Close Focus Distance: 0.8 m (2.62 ft)

---

DORI Distance

• Wide Lens (2.7 mm) Detect: 64.0 m (209.97 ft), Observe: 25.6 m (83.98 ft), Recognize: 12.8 m (41.99 ft), Identify: 6.4 m (21.00 ft)

• Tele Lens (13.5 mm) Detect: 210.0 m (688.98 ft), Observe: 84.0 m (275.59 ft), Recognize: 42.0 m (137.80 ft), Identify: 21.0 m (68.90 ft)

---

Intelligence

• IVS (Perimeter Protection): Tripwire and intrusion detection with vehicle/human classification

• AI SSA: Yes

• Quick Pick: Quickly select human/vehicle targets from SMD events with AI NVR

• Smart Search: Supports refined intelligent search, event extraction, and video merging with Smart NVR

---

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rate:

  • Main stream: 3072 × 2048 at 1–25/30 fps

  • Sub stream 1: 704 × 576 at 1–25 fps or 704 × 480 at 1–30 fps

  • Sub stream 2: 1920 × 1080 at 1–25/30 fps

• Streams Supported: 3

• Resolution Options: 6M (3072x2048), 5M (2592x1944), 4M (2688x1520), 3.6M (2560x1440), 3M (2048x1536 and 2304x1296), 1080p (1920x1080), 1.3M (1280x960), 720p (1280x720), D1, CIF, VGA

• Bit Rate Control: CBR and VBR

• Video Bit Rate Range: 3 kbps to 8192 kbps (H.264 and H.265)

• Day/Night Mode: Auto (ICR), Color, B/W

• BLC: Yes

• HLC: Yes

• WDR: 120 dB

• Scene Self-adaptation (SSA): Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: On/Off with 4 rectangular areas

• Image Stabilization: Electronic (EIS)

• Region of Interest (RoI): Yes, 4 areas

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0°, 90°, 180°, 270° (90°/270° supported with 2688×1520 resolution and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

---

Audio

• Built-in Microphone: Yes

• Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723

---

Alarm

• Alarm Events Include:
  No SD card, SD card full, SD card error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene change, audio detection, voltage detection, defocus detection, SMD, safety exception

---

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Supported

• Supported Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cyber Security Features: Video/firmware/configuration encryption, digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate support, syslog, HTTPS, 802.1x, trusted boot, execution, and upgrade

• Interoperability: ONVIF Profiles S/G/T, CGI, P2P, Milestone, Genetec

• Max Users/Hosts: 20 (total bandwidth 64 Mbps)

---

Storage

• FTP, SFTP, Micro SD card (up to 256 GB), NAS support

---

Browser Compatibility

• Internet Explorer 11, Chrome, Firefox

---

Management Software

• Smart PSS, DSS, DMSS

---

Mobile Client

• iOS and Android support

---

Certification

• CE-LVD (EN62368-1)

• CE-EMC (Electromagnetic Compatibility Directive 2014/30/EU)

• FCC (47 CFR FCC Part 15, Subpart B)

• UL/CUL (UL62368-1 & CAN/CSA C22.2 No. 62368-1-14)

---

Power

• Power Supply: 12 VDC or PoE (802.3af)

• Power Consumption:

  • Basic: 5.7 W (12 VDC), 6.4 W (PoE)

  • Max (WDR + IR + Intelligence): 8.9 W (12 VDC), 10.2 W (PoE)

---

Environment

• Operating Temperature: –30 °C to +60 °C (–22 °F to 140 °F), < 95% RH

• Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)

• Protection Level: IP67

---

Structure

• Casing Material: Metal

• Product Dimensions: 108.3 mm × Φ122 mm (4.26" × Φ4.80")

• Net Weight: 715 g (1.58 lb)

• Gross Weight: 915 g (2.02 lb)
