Description

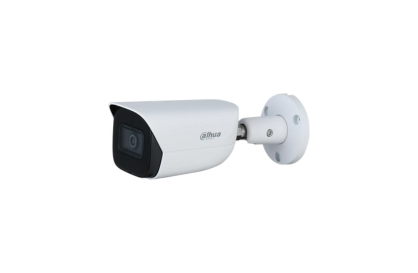

6 MP IR Fixed-focal Bullet WizSense Network Camera
-
6 MP 1/2.7" CMOS image sensor with excellent low-light performance and high-definition imaging
-
Outputs up to 6 MP (3072 × 2048) @ 25/30 fps
-
H.265 codec with high compression efficiency and ultra-low bit rate
-
Built-in IR LED with a maximum IR distance of 30 m
-
Supports ROI, Smart H.264+/H.265+, AI H.264/H.265 for flexible encoding to suit various bandwidth and storage needs
-
Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for diverse monitoring scenarios
-
Intelligent Detection: Intrusion, tripwire with accurate vehicle/human classification
-
Abnormality Detection:
-
Motion detection
-
Privacy masking
-
Scene change
-
Audio detection
-
No SD card, SD card full, SD card error
-
Network disconnection, IP conflict, illegal access
-
Voltage detection
-
-
Alarm I/O: 1 input, 1 output (Only AS model supports)
-
Audio I/O: 1 input, 1 output (Only AS model supports)
-
Storage: Supports Micro SD card up to 256 GB
-
Built-in microphone
-
Power supply: 12 VDC / PoE for easy installation
-
Protection: IP67 rated for outdoor use
-
Advanced Features: SMD 4.0, AI SSA
- Datasheet
Camera
-
Image Sensor: 1/2.7" CMOS
-
Max. Resolution: 3072 (H) × 2048 (V)
-
ROM: 128 MB
-
RAM: 512 MB
-
Scanning System: Progressive
-
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
-
Min. Illumination:
-
0.005 lux@F1.4 (Color, 30 IRE)
-
0.0005 lux@F1.4 (B/W, 30 IRE)
-
0 lux (Illuminator on)
-
-
S/N Ratio: >56 dB
-
Illumination Distance: 30 m (98.43 ft)
-
Illuminator On/Off Control: Auto/Manual
-
Illuminator Number: 1 (IR LED)
-
Pan/Tilt/Rotation Range:
-
Pan: 0°–360°
-
Tilt: 0°–90°
-
Rotation: 0°–360°
-
Lens
-
Lens Type: Fixed-focal
-
Lens Mount: M12
-
Focal Length Options: 2.8 mm; 3.6 mm
-
Max. Aperture: F1.4
-
Field of View:
-
2.8 mm: H: 111°, V: 58°, D: 132°
-
3.6 mm: H: 92°, V: 45°, D: 110°
-
-
Iris Control: Fixed
-
Close Focus Distance:
-
2.8 mm: 1.1 m (3.61 ft)
-
3.6 mm: 1.7 m (5.58 ft)
-
DORI Distance
2.8 mm Lens
-
Detect: 63.6 m (208.66 ft)
-
Observe: 25.4 m (83.33 ft)
-
Recognize: 12.7 m (41.67 ft)
-
Identify: 6.4 m (21.00 ft)
3.6 mm Lens
-
Detect: 85.4 m (280.18 ft)
-
Observe: 34.2 m (112.20 ft)
-
Recognize: 17.1 m (56.10 ft)
-
Identify: 8.5 m (27.89 ft)
Intelligence
-
IVS (Perimeter Protection): Tripwire, intrusion (vehicle/human classification)
-
AI SSA: Yes
-
Quick Pick: Supported with AI NVR
-
Smart Search: Supported with Smart NVR
Video
-
Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
-
Smart Codec: Smart H.265+, Smart H.264+
-
AI Coding: AI H.265, AI H.264
-
Frame Rate:
-
Main: 3072 × 2048 @ (1–25/30) fps
-
Sub 1: 704 × 576 @ (1–25 fps), 704 × 480 @ (1–30 fps)
-
Sub 2: 1920 × 1080 @ (1–25/30 fps)
-
-
Stream Capability: 3 streams
-
Resolution Options:
-
6M (3072×2048), 5M, 4M, 3.6M, 3M (2048×1536), 3M (2304×1296), 1080p, 1.3M, 720p, D1, CIF, VGA
-
-
Bit Rate Control: CBR/VBR
-
Video Bit Rate: H.264/H.265: 3 kbps–8192 kbps
-
Day/Night: Auto (ICR) / Color / B/W
-
BLC / HLC: Yes
-
WDR: 120 dB
-
SSA: Yes
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Motion Detection: On/Off (4 rectangular areas)
-
Region of Interest: Yes (4 areas)
-
Defog: Yes
-
AFSA: Yes
-
Image Rotation: 0°/90°/180°/270° (supports 90°/270° up to 2688×1520)
-
Mirror: Yes
-
Privacy Masking: 4 areas
Audio
-
Built-in MIC: Yes
-
Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723
Alarm
- AS Model:
-
Alarm Events: No SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, external alarm, SMD, safety exception
- S Model:
-
Alarm Events: Same as AS, without external alarm
Network
-
Network Port: RJ-45 (10/100 Base-T)
-
SDK and API: Supported
-
Protocols:
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP -
Cybersecurity Features:
-
Video/config/firmware encryption, digest, WSSE, account lockout, security logs
-
IP/MAC filtering, X.509 certificate, syslog, HTTPS, 802.1x
-
Trusted boot/execution/upgrade
-
-
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec
-
User Access: Up to 20 users (total 64 Mbps bandwidth)
Storage
-
Micro SD Card: Up to 256 GB
-
NAS Support: Yes
-
FTP/SFTP: Yes
Browser Compatibility
-
Internet Explorer 11
-
Chrome
-
Firefox
Software Compatibility
-
Management Software: Smart PSS, DSS, DMSS
-
Mobile Client: iOS, Android
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: Directive 2014/30/EU
-
FCC: 47 CFR Part 15, Subpart B
-
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Ports (Only AS Supports)
-
Audio Input: 1 channel (RCA)
-
Audio Output: 1 channel (RCA)
-
Alarm Input: 1 channel (5 mA 3–5 VDC)
-
Alarm Output: 1 channel (300 mA 12 VDC)
Power
-
Power Supply: 12 VDC / PoE (802.3af)
-
Power Consumption:
-
Basic: 3.1 W (12 VDC); 3.7 W (PoE)
-
Max (WDR + IR + Intelligence): 5.3 W (12 VDC); 6.5 W (PoE)
-
Environment
-
Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), <95% RH
-
Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
-
Ingress Protection: IP67
Structure
-
Casing: Metal
-
Dimensions: 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61")
-
Net Weight: 590 g (1.30 lb)
-
Gross Weight: 780 g (1.72 lb)
