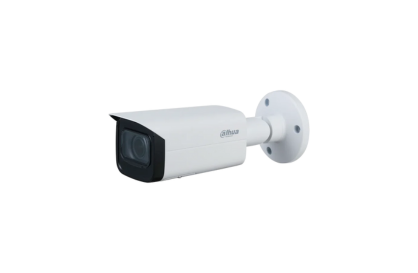

Dahua Security Camera 6MP WizSense Motorised Starlight Bullet 2.7–13.5 mm Camera DH-IPC-HFW3666TP-ZAS-AU

6MP IR Vari-focal Bullet WizSense Network Camera

• Image Sensor: 6 MP 1/2.7" CMOS — excellent low-light performance and high definition

• Max Resolution: 3072 × 2048 @ 25/30 fps

• Video Compression: H.265 codec with high compression rate and ultra-low bit rate

• Infrared: Built-in IR LED, max IR distance 60 m

• Smart Coding: ROI, SMART H.264+/H.265+ — flexible coding for various bandwidth and storage environments

• Image Enhancements: Rotation mode, WDR, 3D Noise Reduction, HLC, BLC, digital watermarking

• Intelligent Detection: Intrusion and tripwire with vehicle/human classification

• Abnormality Detection: Motion detection, privacy masking, scene change, audio detection, no SD card, SD card full/error, network issues, IP conflict, illegal access, voltage detection

• Alarm & Audio:

  • Alarm: 1 input, 1 output (Only - ZAS models support)

  • Audio: 1 input, 1 output with built-in microphone (Only - ZAS models support)

• Storage: Supports Micro SD card up to 256 GB

• Power Supply: 12 VDC/PoE for easy installation

• Protection: IP67; IK10 optional

• AI Features: SMD 4.0, AI SSA

• Datasheet



Camera

• Image Sensor: 1/2.7" CMOS

• Max. Resolution: 3072 (H) × 2048 (V)

• ROM: 128 MB

• RAM: 1 GB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination:

  • 0.005 lux@F1.5 (Color, 30 IRE)

  • 0.0005 lux@F1.5 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio: >56 dB

• Illumination Distance: 60 m (196.85 ft)

• Illuminator On/Off Control: Auto/Manual

• Illuminator Number: 4 (IR LED)

• Pan/Tilt/Rotation Range:

  • Pan: 0°–360°

  • Tilt: 0°–90°

  • Rotation: 0°–360°

Lens

• Lens Type: Motorized vari-focal

• Lens Mount: φ14

• Focal Length: 2.7 mm–13.5 mm

• Max. Aperture: F1.5

• Field of View:

  • Horizontal: 99°–28°

  • Vertical: 71°–21°

  • Diagonal: 134°–35°

• Iris Control: Fixed

• Close Focus Distance: 0.8 m (2.62 ft)

DORI Distance

• Wide:

  • Detect: 64.0 m

  • Observe: 25.6 m

  • Recognize: 12.8 m

  • Identify: 6.4 m

• Tele:

  • Detect: 210.0 m

  • Observe: 84.0 m

  • Recognize: 42.0 m

  • Identify: 21.0 m

Intelligence

• IVS (Perimeter Protection): Tripwire, intrusion (vehicle/human classification)

• AI SSA: Yes

• Quick Pick: Yes (with AI NVR)

• Smart Search: Yes (with Smart NVR)

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)

• Smart Codec: Smart H.265+, Smart H.264+

• AI Coding: AI H.265, AI H.264

• Frame Rate:

  • Main stream: 3072 × 2048 @ (1–25/30) fps

  • Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)

  • Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

• Stream Capability: 3 streams

• Resolution Options: 6M to CIF (3072 × 2048 down to 352 × 240)

• Bit Rate Control: CBR/VBR

• Bit Rate: 3 kbps–8192 kbps (H.264/H.265)

• Day/Night: Auto (ICR) / Color / B/W

• BLC / HLC: Yes

• WDR: 120 dB

• SSA: Yes

• White Balance: Auto, natural, street lamp, outdoor, manual, regional custom

• Gain Control: Auto

• Noise Reduction: 3D NR

• Motion Detection: On/Off (4 rectangular areas)

• Image Stabilization: EIS

• Region of Interest: 4 areas

• Defog: Yes

• AFSA: Yes

• Image Rotation: 0° / 90° / 180° / 270° (up to 2688 × 1520)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes

• Compression: G.711a, G.711Mu, PCM, G.726, G.723

Alarm Events

• ZAS Version:

  • No SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage/defocus detection, external alarm, SMD, safety exception

• ZS Version:

  • Same as ZAS but without external alarm

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK & API: Supported

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP/SFTP, DHCP, DNS/DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP

• Cybersecurity:

  • Video/config/firmware encryption, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate support, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade

• Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec

• Max Users: 20 (64 Mbps total bandwidth)

Storage

• FTP/SFTP

• Micro SD card (max. 256 GB)

• NAS

Browser Support

• IE11, Chrome, Firefox

Software

• Management: Smart PSS, DSS, DMSS

• Mobile: iOS, Android

Certifications

• CE-LVD: EN62368-1

• CE-EMC: 2014/30/EU

• FCC: 47 CFR Part 15, Subpart B

• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Ports (ZAS only)

• Audio Input: 1 channel (RCA)

• Audio Output: 1 channel (RCA)

• Alarm Input: 1 channel (5 mA, 3–5 VDC)

• Alarm Output: 1 channel (300 mA, 12 VDC)

Power

• Supply: 12 VDC / PoE (802.3af)

• Consumption:

  • Basic: 2.8 W (12 VDC); 3.4 W (PoE)

  • Max: 7.4 W (12 VDC); 8.5 W (PoE)

Environmental

• Operating Temp: –30°C to +60°C (–22°F to 140°F), <95% RH

• Storage Temp: –40°C to +60°C (–40°F to 140°F)

• Protection: IP67

Physical

• Casing: Metal

• Dimensions: 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99")

• Net Weight: 820 g (1.81 lb)

• Gross Weight: 1090 g (2.40 lb)
