Description

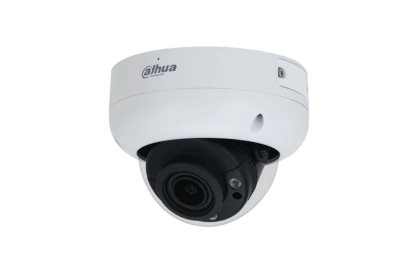

6MP IR Vari-focal Dome WizSense Network Camera
-
Image Sensor: 6MP 1/2.7" CMOS — excellent low-light performance and high-definition images
-
Max Resolution: 3072 × 2048 @ 25/30 fps
-
Video Compression: H.265 codec with high compression rate and ultra-low bit rate
-
Infrared: Built-in IR LED with max IR distance of 40 m
-
Smart Coding: ROI, SMART H.264+/H.265+, AI H.264/H.265 — flexible for various bandwidth and storage environments
-
Image Enhancements: Rotation mode, WDR, 3D Noise Reduction, HLC, BLC, digital watermarking
-
Intelligent Detection: Intrusion, tripwire with accurate vehicle and human classification
-
Abnormality Detection: Motion detection, privacy masking, scene change, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, voltage detection
-
Alarm & Audio:
-
Alarm: 1 input, 1 output (Only -ZAS models support)
-
Audio: 1 input, 1 output with built-in microphone (Only -ZAS models support)
-
-
Storage: Supports Micro SD card up to 256 GB
-
Power Supply: 12 VDC or PoE for easy installation
-
Protection: IP67 and IK10 rated for weather and vandal resistance
-
AI Features: SMD 4.0, AI SSA
- Datasheet
Camera
-
Image Sensor: 1/2.7" CMOS
-
Max. Resolution: 3072 (H) × 2048 (V)
-
ROM: 128 MB
-
RAM: 1 GB
-
Scanning System: Progressive
-
Electronic Shutter Speed: Auto/Manual 1/3 s – 1/100,000 s
Minimum Illumination
-
Color (30 IRE): 0.005 lux @ F1.5
-
B/W (30 IRE): 0.0005 lux @ F1.5
-
0 lux (Illuminator on)
Signal-to-Noise Ratio
-
56 dB
Illumination
-
Distance: 40 m (131.23 ft)
-
Control: Auto/Manual
-
Number of LEDs: 3 (IR LED)
Pan/Tilt/Rotation
-
Pan: 0°–355°
-
Tilt: 0°–80°
-
Rotation: 0°–355°
Lens
-
Type: Motorized vari-focal
-
Mount: φ14
-
Focal Length: 2.7 mm – 13.5 mm
-
Max. Aperture: F1.5
-
Field of View:
-
Horizontal: 114° – 32°
-
Vertical: 58° – 17°
-
Diagonal: 138° – 36°
-
-
Iris Control: Fixed
-
Close Focus Distance: 0.8 m (2.62 ft)
DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| Wide | 64.0 m (210 ft) | 25.6 m (84 ft) | 12.8 m (42 ft) | 6.4 m (21 ft) |
| Tele | 210.0 m (689 ft) | 84.0 m (276 ft) | 42.0 m (138 ft) | 21.0 m (69 ft) |
Intelligence
-
IVS (Perimeter Protection): Tripwire, intrusion (supports vehicle & human classification)
-
AI SSA: Yes
-
Quick Pick: AI NVR feature to quickly pick human/vehicle targets from SMD events
-
Smart Search: Refined intelligent search and event extraction with Smart NVR
Video
-
Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
-
Smart Codec: Smart H.265+, Smart H.264+
-
AI Coding: AI H.265, AI H.264
Frame Rate
-
Main stream: 3072 × 2048 @ 1–25/30 fps
-
Sub stream 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
-
Sub stream 2: 1920 × 1080 @ 1–25/30 fps
Max frame rates per stream; total encoding capacity applies.
-
Stream Capability: 3 streams
Resolution Options
6M, 5M, 4M, 3.6M, 3M (two variants), 1080p, 1.3M, 720p, D1, CIF, VGA (various pixel dimensions)
Bit Rate Control
-
CBR / VBR
Video Bit Rate
-
H.264 & H.265: 3 kbps – 8192 kbps
Image Features
-
Day/Night: Auto (ICR), Color, B/W
-
BLC: Yes
-
HLC: Yes
-
WDR: 120 dB
-
Scene Self-adaptation (SSA): Yes
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Motion Detection: ON/OFF (4 rectangular areas)
-
Image Stabilization: Electronic Image Stabilization (EIS)
-
Region of Interest (RoI): Yes (4 areas)
-
Defog: Yes
-
AFSA: Yes
-
Image Rotation: 0°/90°/180°/270° (90°/270° supported up to 2688 × 1520 resolution)
-
Mirror: Yes
-
Privacy Masking: 4 areas
Audio
-
Built-in MIC: Yes
-
Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723
Alarm
Alarm Event (-ZAS Model):
-
No SD card, SD card full/error, service life warning (Dahua card only), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, defocus detection, external alarm, SMD, safety exception
Alarm Event (-ZS Model):
-
Same as above except no external alarm
Network
-
Port: RJ-45 (10/100 Base-T)
-
SDK/API: Yes
-
Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
-
Cyber Security: Video/firmware/config encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certs, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade
-
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec
-
Max Users: 20 (64 Mbps bandwidth)
Storage
-
FTP, SFTP, Micro SD card (max 256 GB), NAS
Browser Support
-
IE11, Chrome, Firefox
Software
-
Smart PSS, DSS, DMSS
-
Mobile Client: iOS, Android
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
-
FCC: 47 CFR Part 15, Subpart B
-
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Ports (-ZAS Model Only)
-
Audio Input: 1 channel (RCA)
-
Audio Output: 1 channel (RCA)
-
Alarm Input: 1 channel, 5 mA, 3–5 VDC
-
Alarm Output: 1 channel, 300 mA, 12 VDC
Power
-
Supply: 12 VDC / PoE (802.3af)
-
Power Consumption:
-
Basic: 4 W (12 VDC), 4.9 W (PoE)
-
Max (WDR + IR + Intelligence): 9.2 W (12 VDC), 10.5 W (PoE)
-
Environment
-
Operating Temperature: –30 °C to +60 °C (–22 °F to 140 °F), <95% RH
-
Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
-
Protection: IP67, IK10
Physical
-
Casing: Metal
-
Dimensions: 94 mm × Φ122 mm (3.70" × Φ4.80")
-
Net Weight: 713 g (1.57 lb)
-
Gross Weight: 986 g (2.17 lb)
