Description

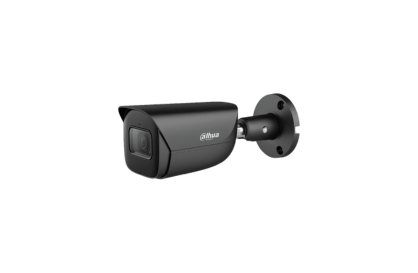

8 MP IR Fixed-focal Bullet WizSense Network Camera
-
Image Sensor: 8 MP 1/2.8" CMOS — excellent low-light performance and high-definition images
-
Max Resolution: 3840 × 2160 @ 25/30 fps
-
Video Compression: H.265 codec for high compression and ultra-low bit rate
-
Infrared: Built-in IR LED with max IR distance of 30 m
-
Smart Coding: ROI, SMART H.264+/H.265+, AI H.264/H.265 — flexible for various bandwidth and storage needs
-
Image Enhancements: Rotation mode, WDR, 3D Noise Reduction, HLC, BLC, digital watermarking
-
Intelligent Detection: Intrusion, tripwire with accurate vehicle and human classification
-
Abnormality Detection: Motion detection, privacy masking, scene change, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, voltage detection
-
Alarm & Audio:
-
Alarm: 1 input, 1 output (Only -AS models support)
-
Audio: 1 input, 1 output with built-in microphone (Only -AS models support)
-
-
Storage: Supports Micro SD card up to 256 GB
-
Power Supply: 12 VDC or PoE for easy installation
-
Protection: IP67 rated for weather resistance
-
AI Features: SMD 4.0, AI SSA
- Datasheet
Camera Specifications
Image Sensor
-
Type: 1/2.8" CMOS
Max. Resolution
-
3840 (H) × 2160 (V)
Memory
-
ROM: 128 MB
-
RAM: 1 GB
Scanning System
-
Progressive
Electronic Shutter Speed
-
Auto/Manual: 1/3 s – 1/100,000 s
Minimum Illumination
-
Color (30 IRE): 0.007 lux @ F1.4
-
B/W (30 IRE): 0.0007 lux @ F1.4
-
0 lux (Illuminator on)
Signal-to-Noise Ratio (S/N)
-
56 dB
Illumination
-
Distance: 30 m (98.4 ft)
-
Control: Auto/Manual
-
Number of LEDs: 1 (IR LED)
Pan/Tilt/Rotation Range
-
Pan: 0°–360°
-
Tilt: 0°–90°
-
Rotation: 0°–360°
Lens
-
Type: Fixed-focal
-
Mount: M12
-
Focal Length: 2.8 mm / 3.6 mm
-
Max. Aperture: F1.4
Field of View (FOV)
-
2.8 mm: Horizontal 107°, Vertical 56°, Diagonal 127°
-
3.6 mm: Horizontal 84°, Vertical 47°, Diagonal 97°
Iris Control
-
Fixed
Close Focus Distance
-
2.8 mm: 1.5 m (4.9 ft)
-
3.6 mm: 2 m (6.6 ft)
DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 87.7 m (288 ft) | 35.1 m (115 ft) | 17.5 m (57 ft) | 8.8 m (29 ft) |
| 3.6 mm | 102.1 m (336 ft) | 40.8 m (134 ft) | 20.4 m (67 ft) | 10.2 m (33 ft) |
Intelligence
-
IVS (Perimeter Protection): Tripwire, intrusion (supports vehicle & human classification)
-
AI SSA: Yes
-
Quick Pick: AI NVR feature to quickly pick human/vehicle targets from SMD events
-
Smart Search: Refined intelligent search and event extraction with Smart NVR
Video
-
Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
-
Smart Codec: Smart H.265+, Smart H.264+
-
AI Coding: AI H.265, AI H.264
Frame Rate
-
Main stream: 3840 × 2160 @ 1–25/30 fps
-
Sub stream 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
-
Sub stream 2: 1920 × 1080 @ 1–25/30 fps
Max frame rates per stream; total encoding capacity applies.
-
Stream Capability: 3 streams
Resolution Options
8M, 6M, 5M, 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA (various pixel dimensions)
Bit Rate Control
-
CBR / VBR
Video Bit Rate
-
H.264 & H.265: 3 kbps – 8192 kbps
Image Features
-
Day/Night: Auto (ICR), Color, B/W
-
BLC (Backlight Compensation): Yes
-
HLC (Highlight Compensation): Yes
-
WDR: 120 dB
-
Scene Self-adaptation (SSA): Yes
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Motion Detection: ON/OFF (4 rectangular areas)
-
Region of Interest (RoI): Yes (4 areas)
-
Defog: Yes
-
AFSA: Yes
-
Image Rotation: 0° / 90° / 180° / 270° (90° and 270° supported up to 2688 × 1520 resolution)
-
Mirror: Yes
-
Privacy Masking: 4 areas
Audio
-
Built-in Microphone: Yes
-
Audio Compression: G.711a, G.711Mu, PCM, G.726, G.723
Alarm
Alarm Event (AS Model)
-
No SD card, SD card full/error
-
Service life warning (Dahua card only)
-
Network disconnection
-
IP conflict, illegal access
-
Motion detection, video tampering
-
Intrusion, tripwire, scene changing
-
Audio detection, voltage detection
-
External alarm, SMD, safety exception
Alarm Event (S Model)
-
Same as AS except no external alarm
Network
-
Port: RJ-45 (10/100 Base-T)
-
SDK/API: Yes
-
Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
-
Cyber Security: Video/firmware/config encryption, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certs, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade
-
Interoperability: ONVIF (Profiles S/G/T), CGI, P2P, Milestone, Genetec
-
Max Users: 20 (64 Mbps bandwidth)
Storage
-
FTP, SFTP, Micro SD (max 256 GB), NAS
Browser Support
-
IE11, Chrome, Firefox
Software
-
Smart PSS, DSS, DMSS
-
Mobile Client: iOS, Android
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
-
FCC: 47 CFR Part 15, Subpart B
-
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Ports (Only -AS Models Support)
-
Audio Input: 1 channel (RCA)
-
Audio Output: 1 channel (RCA)
-
Alarm Input: 1 channel, 5 mA, 3–5 VDC
-
Alarm Output: 1 channel, 300 mA, 12 VDC
Power
-
Supply: 12 VDC / PoE (802.3af)
-
Consumption:
-
Basic: 3.8 W (12 VDC), 4.6 W (PoE)
-
Max (WDR + IR + Intelligence): 5.9 W (12 VDC), 7.2 W (PoE)
-
Environment
-
Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), <95% RH
-
Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
-
Protection: IP67
Physical
-
Casing: Metal
-
Dimensions: 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.77" × 2.61") (L × W × H)
-
Net Weight: 590 g (1.30 lb)
-
Gross Weight: 780 g (1.72 lb)
