Description

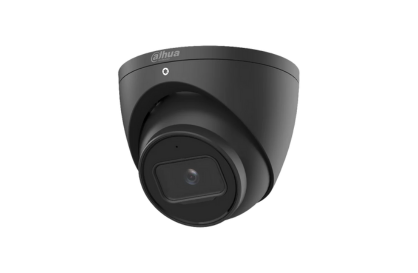

8MP IR Fixed-focal Eyeball WizSense Network Camera
-
8MP 1/2.8" CMOS sensor, clear images even in low light
-
Max resolution: 3840 × 2160 @ 25/30 fps
-
Efficient H.265 video compression
-
Built-in IR LEDs with 30m night vision
-
Smart coding: ROI, AI H.264/H.265, adaptive for different networks
-
Features: WDR, 3D noise reduction, BLC, HLC, rotation mode
-
Intelligent detection: intrusion, tripwire (human/vehicle classification)
-
Alerts for motion, privacy masking, audio, SD card issues, network errors
-
Supports up to 256GB Micro SD card, built-in microphone
-
Power: 12 VDC or PoE
-
Weatherproof: IP67 rated
-
Advanced AI: SMD 4.0, AI SSA
- Datasheet
Camera Specifications
Image Sensor
-
Type: 1/2.8" CMOS
Max. Resolution
-
3840 (H) × 2160 (V)
Memory
-
ROM: 128 MB
-
RAM: 1 GB
Scanning System
-
Progressive
Electronic Shutter Speed
-
Auto/Manual: 1/3 s – 1/100,000 s
Minimum Illumination
-
Color (30 IRE): 0.007 lux @ F1.4
-
B/W (30 IRE): 0.0007 lux @ F1.4
-
0 lux (Illuminator on)
Signal-to-Noise Ratio (S/N)
-
56 dB
Illumination
-
Distance: 30 m (164 ft)
-
Control: Auto/Manual
-
Number of LEDs: 2 (IR LED)
Pan/Tilt/Rotation Range
-
Pan: 0°–360°
-
Tilt: 0°–78°
-
Rotation: 0°–360°
Lens
-
Type: Fixed-focal
-
Mount: M12
-
Focal Length: 2.8 mm / 3.6 mm
-
Max. Aperture: F1.4
Field of View (FOV)
-
2.8 mm: Horizontal 107°, Vertical 56°, Diagonal 127°
-
3.6 mm: Horizontal 84°, Vertical 47°, Diagonal 97°
Iris Control
-
Fixed
Close Focus Distance
-
2.8 mm: 1.5 m (4.9 ft)
-
3.6 mm: 2 m (6.6 ft)
DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 87.7 m (288 ft) | 35.1 m (115 ft) | 17.5 m (57 ft) | 8.8 m (29 ft) |
| 3.6 mm | 102.1 m (335 ft) | 40.8 m (134 ft) | 20.4 m (67 ft) | 10.2 m (33 ft) |
Intelligence
-
IVS (Perimeter Protection): Tripwire, intrusion (supports vehicle & human classification)
-
AI SSA: Yes
-
Quick Pick: Quickly select human/vehicle targets from SMD events with AI NVR
-
Smart Search: Refined search and event extraction with Smart NVR
Video
-
Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
-
Smart Codec: Smart H.265+, Smart H.264+
-
AI Coding: AI H.265, AI H.264
Frame Rate
-
Main stream: 3840 × 2160 @ 1–25/30 fps
-
Sub stream 1: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
-
Sub stream 2: 1920 × 1080 @ 1–25/30 fps
Note: Max frame rates are per stream; total encoding capacity limits simultaneous streams.
-
Stream Capability: 3 streams
Resolution Options
8M, 6M, 5M, 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA (various pixel dimensions)
Bit Rate
-
Control: CBR / VBR
-
Range: 3 kbps – 8192 kbps (H.264 / H.265)
Image Enhancements
-
Day/Night: Auto (ICR) / Color / B/W
-
BLC (Backlight Compensation): Yes
-
HLC (Highlight Compensation): Yes
-
WDR: 120 dB
-
Scene Self-adaptation (SSA): Yes
-
White Balance: Auto, natural, street lamp, outdoor, manual, regional custom
-
Gain Control: Auto
-
Noise Reduction: 3D NR
-
Motion Detection: ON/OFF (4 rectangular areas)
-
Region of Interest (RoI): Yes (4 areas)
-
Defog: Yes
-
AFSA: Yes
-
Image Rotation: 0°/90°/180°/270° (90°/270° supported up to 2688×1520 resolution)
-
Mirror: Yes
-
Privacy Masking: 4 areas
Audio
-
Built-in Microphone: Yes
-
Compression: G.711a, G.711Mu, PCM, G.726, G.723
Alarm Events
-
No SD card, SD card full/error
-
Service life warning (Dahua card only)
-
Network disconnection, IP conflict, illegal access
-
Motion detection, video tampering
-
Intrusion, tripwire, scene changing, audio detection
-
Voltage detection, SMD, safety exception
Network
-
Port: RJ-45 (10/100 Base-T)
-
Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
-
SDK/API: Yes
-
Cyber Security: Video/firmware/configuration encryption, WSSE, account lockout, IP/MAC filtering, HTTPS, 802.1x, trusted boot/execution/upgrade, X.509 certificates, syslog
-
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec
-
Max Users: 20 (64 Mbps total bandwidth)
Storage
-
FTP, SFTP, Micro SD card (up to 256 GB), NAS
Browser Support
-
IE11, Chrome, Firefox
Software
-
Smart PSS, DSS, DMSS
-
Mobile Clients: iOS, Android
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: EMC Directive 2014/30/EU
-
FCC: 47 CFR Part 15, Subpart B
-
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
-
Supply: 12 VDC / PoE (802.3af)
-
Power Consumption:
-
Basic: 4.3 W (12 VDC), 4.9 W (PoE)
-
Max (WDR + IR + Intelligence): 7.6 W (12 VDC), 8.9 W (PoE)
-
Environment
-
Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F), < 95% RH
-
Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
-
Protection: IP67
Physical
-
Casing: Metal
-
Dimensions: 93.6 mm × Φ106.0 mm (3.69" × 4.17")
-
Net Weight: 500 g (1.10 lb)
-
Gross Weight: 770 g (1.70 lb)
