Description

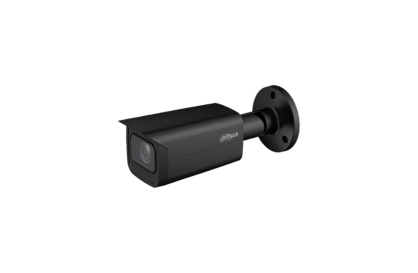

8MP IR Vari-focal Bullet WizSense Network Camera
-
8MP 1/2.8" CMOS, 3840 × 2160 @25/30 fps
-
H.265/H.264, Smart & AI coding, ROI
-
IR range up to 60 m
-
WDR, 3D NR, BLC, HLC, rotation, watermark
-
AFSA (Anti-flicker Self-adaption)
-
Intelligent detection: intrusion, tripwire (human/vehicle)
-
Abnormality detection: motion, audio, scene change, SD card, network, voltage
-
Built-in mic, audio & alarm I/O (ZAS model only)
-
Supports Micro SD card up to 256 GB
-
12 VDC / PoE
-
IP67, IK10 (optional)
-
SMD 4.0, AI SSA
- Datasheet
Camera Specifications
Image Sensor: 1/2.8" CMOS
Max. Resolution: 3840 (H) × 2160 (V)
ROM / RAM: 128 MB / 1 GB
Scanning System: Progressive
Electronic Shutter: Auto/Manual (1/3 s–1/100,000 s)
Min. Illumination:
-
Color: 0.007 lux@F1.5 (30 IRE)
-
B/W: 0.0007 lux@F1.5 (30 IRE)
-
0 lux (IR On)
S/N Ratio: >56 dB
IR Distance: Up to 60 m
IR Control: Auto/Manual
IR LEDs: 4
Pan/Tilt/Rotation: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens
Type: Motorized vari-focal (φ14 mount)
Focal Length: 2.7 mm–13.5 mm
Aperture: F1.5
Field of View:
-
Horizontal: 109°–30°
-
Vertical: 56°–17°
-
Diagonal: 131°–35°
Iris Control: Fixed
Close Focus: 0.8 m
DORI Distance: -
Wide: D: 88.3 m, O: 35.3 m, R: 17.7 m, I: 8.8 m
-
Tele: D: 289.7 m, O: 115.7 m, R: 57.9 m, I: 29.0 m
Intelligent Features
-
IVS: Tripwire, Intrusion (Human/Vehicle Classification)
-
AI SSA: Scene Self-Adaption
-
Quick Pick: With AI NVR
-
Smart Search: With Smart NVR
Video
Compression: H.265, H.264, MJPEG (sub), AI H.265/H.264
Smart Codec: Smart H.265+, Smart H.264+
Max Frame Rate:
-
Main: 3840 × 2160 @25/30 fps
-
Sub1: 704 × 576/480 @25/30 fps
-
Sub2: 1920 × 1080 @25/30 fps
Streams: 3
Resolution Options: 8M, 6M, 5M, 4M, 3.6M, 3M, 1080p, 720p, D1, CIF, VGA
Bitrate: 3–8192 kbps (CBR/VBR)
Day/Night: Auto(ICR) / Color / B/W
WDR: 120 dB
Features: BLC, HLC, 3D NR, EIS, RoI (4 areas), Defog, AFSA, Mirror, Privacy Masking (4 areas)
Audio
Built-in Mic: Yes
Audio Compression: G.711a/u, PCM, G.726, G.723
Audio I/O (ZAS only): 1 in / 1 out (RCA)
Alarms
Events (ZAS): Full SD, motion, tamper, intrusion, tripwire, defocus, voltage, SMD, etc.
Events (ZS): Same as above, minus external alarm I/O
Network
Port: 1 × RJ-45 (10/100 Base-T)
Protocols: IPv4/6, HTTP, TCP/IP, FTP, SMTP, RTP, RTSP, NTP, SNMP, etc.
Interoperability: ONVIF (S/G/T), CGI, P2P
Users: 20 (64 Mbps total)
Storage: Micro SD (256 GB), FTP, SFTP, NAS
Cybersecurity: HTTPS, IP/MAC filter, WSSE, 802.1x, secure boot/upgrade, more
Browser: IE11, Chrome, Firefox
Software: Smart PSS, DSS, DMSS (iOS/Android)
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: 2014/30/EU
-
FCC: Part 15
-
UL/CUL: UL62368-1 / CAN/CSA C22.2 No. 62368-1-14
Interfaces (ZAS only)
-
Alarm In/Out: 1 in (5 mA, 3–5 VDC), 1 out (300 mA, 12 VDC)
Power
Supply: 12 VDC / PoE (802.3af)
Consumption:
-
Basic: 4 W (12 VDC), 4.9 W (PoE)
-
Max: 9.2 W (12 VDC), 10.5 W (PoE)
Environmental
Operating Temp: –30°C to +60°C
Storage Temp: –40°C to +60°C
Humidity: <95% RH
Protection: IP67
Mechanical
Casing: Metal
Dimensions: 244.1 × 79.0 × 75.9 mm
Net Weight: 820 g
Gross Weight: 1090 g
