Description

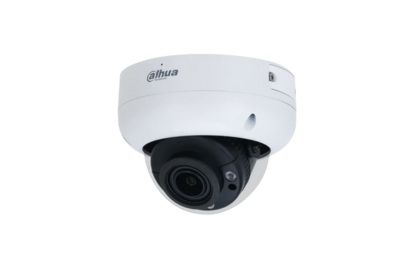

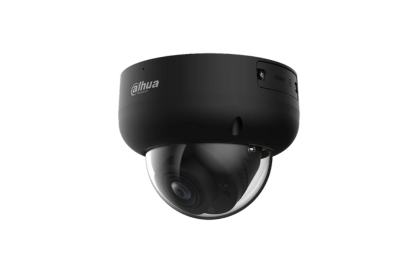

Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Dome, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POE
- 8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 8MP (3840 x 2160) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 40 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
- 12 VDC/PoE power supply facilitates installation.
- IP67, IK10 protection.
- SMD 4.0, AI SSA.
- Datasheet
Camera
-
Image Sensor: 1/2.8" CMOS
-
Max. Resolution: 3840 × 2160
-
RAM / ROM: 1 GB / 128 MB
-
Shutter: 1/3 s–1/100,000 s (Auto/Manual)
-
Min. Illumination:
-
0.007 lux (Color)
-
0.0007 lux (B/W)
-
0 lux (IR on)
-
-
IR Distance: 40 m (3 IR LEDs)
-
S/N Ratio: >56 dB
-
Pan/Tilt/Rotation: 0°–355° / 0°–80° / 0°–355°
Lens
-
Type: Motorized vari-focal, φ14
-
Focal Length: 2.7 mm–13.5 mm, F1.5
-
Field of View:
-
H: 109°–30°, V: 56°–17°, D: 131°–35°
-
-
Close Focus Distance: 0.8 m
-
DORI (Wide / Tele):
-
Detect: 88.3 m / 289.7 m
-
Observe: 35.3 m / 115.7 m
-
Recognize: 17.7 m / 57.9 m
-
Identify: 8.8 m / 29.0 m
-
Video
-
Compression: H.265, H.264, MJPEG (sub stream)
-
Smart Codec: H.265+/H.264+, AI H.265/H.264
-
Streams: 3
-
Frame Rates:
-
Main: 3840×2160 @ 25/30 fps
-
Sub1: 704×576 @ 25 fps / 704×480 @ 30 fps
-
Sub2: 1920×1080 @ 25/30 fps
-
-
Resolution: Multiple (from 8MP to CIF)
-
Bitrate Control: CBR / VBR
-
Bitrate: 3 kbps – 8192 kbps
Image Features
-
Day/Night: Auto (ICR) / Color / B/W
-
WDR (120 dB), BLC, HLC, 3D NR, Defog, EIS
-
Image Rotation: 0°/90°/180°/270°
-
RoI: 4 areas | Privacy Masking: 4 areas
-
White Balance, Gain Control: Auto / Manual
-
Mirror, AFSA, Scene Self-adaptation (SSA)
Intelligence
-
IVS: Tripwire, intrusion (human/vehicle classification)
-
Smart Search & Quick Pick: With AI NVR
-
Motion & Event Detection: Motion, audio, defocus, scene change, SD issues, voltage, tampering, network issues
-
SMD 4.0, AI SSA: Supported
Audio & Alarms (ZAS model only)
-
Audio I/O: 1 in, 1 out (RCA)
-
Alarm I/O: 1 in (5 mA, 3–5 VDC), 1 out (300 mA, 12 VDC)
-
Audio Compression: G.711a, G.711Mu, G.726, G.723, PCM
-
Built-in Mic: Yes
Network
-
Port: RJ-45 (10/100 Base-T)
-
Protocols: IPv4/IPv6, HTTP, TCP, RTSP, FTP, SNMP, etc.
-
Cybersecurity:
Video/Firmware/Config encryption, WSSE, IP/MAC filtering, 802.1x, Trusted boot/execution/upgrade -
Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec
-
Users: Up to 20 users (64 Mbps total)
-
API & SDK: Supported
Storage & Access
-
Local: Micro SD card (up to 256 GB)
-
Remote: FTP, SFTP, NAS
-
Browser Support: IE11, Chrome, Firefox
-
Software: Smart PSS, DSS, DMSS (iOS/Android)
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: 2014/30/EU
-
FCC: Part 15
-
UL/CUL: UL62368-1 & CSA C22.2 No. 62368-1-14
Power & Environment
-
Power Supply: 12 VDC / PoE (802.3af)
-
Power Consumption:
-
Basic: 4 W (DC) / 4.9 W (PoE)
-
Max: 9.2 W (DC) / 10.5 W (PoE)
-
-
Operating Temp: –30 °C to +60 °C (<95% RH)
-
Storage Temp: –40 °C to +60 °C
-
Protection: IP67, IK10
Physical
-
Material: Metal casing
-
Dimensions: 94 mm × Φ122 mm (3.7" × Φ4.8")
-
Net Weight: 713 g
-
Gross Weight: 986 g
