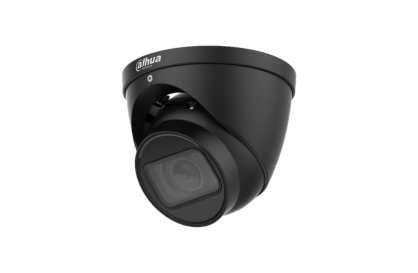

Dahua Security Camera 8MP (4K) IR Vari-focal Eyeball WizSense Motorised Network Camera Black DH-IPC-HDW3866TP-ZS-AUS-BLK

8MP IR Vari-focal Eyeball WizSense Network Camera

• Sensor: 8 MP 1/2.8" CMOS, excellent low-light performance

• Resolution: 3840 × 2160 @25/30 fps

• Compression: H.265, SMART H.264+/H.265+, AI H.264/H.265

• IR Range: Up to 40 m

• Image Features: WDR, 3D NR, BLC, HLC, rotation mode, digital watermark

• AI Detection: Intrusion, tripwire (human/vehicle classification)

• Abnormality Alerts: Motion, audio, scene change, SD card issues, network & voltage alerts

• Audio: Built-in mic

• Storage: Supports Micro SD card up to 256 GB

• Power: 12 VDC / PoE

• Protection: IP67

• Smart Functions: SMD 4.0, AI SSA

• Datasheet

Camera

• Image Sensor: 1/2.8" CMOS

• Max. Resolution: 3840 (H) × 2160 (V)

• RAM/ROM: 1 GB / 128 MB

• Min. Illumination:

  • 0.007 lux @F1.5 (Color)

  • 0.0007 lux @F1.5 (B/W)

  • 0 lux (IR on)

• IR Distance: Up to 40 m (2 IR LEDs)

• Shutter Speed: Auto/Manual, 1/3 s–1/100,000 s

• Pan/Tilt/Rotation: 0°–360° / 0°–78° / 0°–360°

• S/N Ratio: >56 dB

---

Lens

• Type: Motorized vari-focal, φ14 mount

• Focal Length: 2.7 mm–13.5 mm, F1.5

• FOV:

  • H: 109°–30°

  • V: 56°–17°

  • D: 131°–35°

• Focus Distance: 0.8 m

• DORI Distance:

  • Detect: 88.3 m (W) / 289.7 m (T)

  • Observe: 35.3 m / 115.7 m

  • Recognize: 17.7 m / 57.9 m

  • Identify: 8.8 m / 29.0 m

---

Video

• Compression: H.265, H.264, MJPEG (sub stream)

• Smart Codec: H.265+/H.264+; AI H.265/H.264

• Frame Rate:

  • Main: 3840×2160 @25/30 fps

  • Sub1: 704×576/704×480

  • Sub2: 1920×1080

• Streams: 3

• Bitrate: 3 kbps – 8192 kbps (CBR/VBR)

• WDR: 120 dB | BLC/HLC: Yes

• Image Enhancements: SSA, 3D NR, EIS, Defog, RoI (4 areas), Mirror, Privacy Masking (4 areas), Rotation (0°/90°/180°/270°)

---

AI & Intelligence

• IVS: Tripwire, Intrusion (Human/Vehicle classification)

• Smart Detection: SMD, Scene change, Defocus, Motion, Audio, Voltage

• AI Features: AI SSA, AFSA, Quick Pick (with AI NVR), Smart Search

---

Audio

• Built-in Mic: Yes

• Compression: G.711a, G.711Mu, PCM, G.726, G.723

---

Network

• Port: RJ-45 (10/100 Base-T)

• Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, FTP, SFTP, NTP, SNMP, etc.

• Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec

• Cybersecurity: Video/Firmware encryption, Account lockout, X.509 cert, HTTPS, Trusted boot/execution

---

Storage & Access

• Local Storage: Micro SD (up to 256 GB)

• Remote: FTP, SFTP, NAS

• Users: Max. 20 users, 64 Mbps total bandwidth

• Browser: IE11, Chrome, Firefox

• Software: Smart PSS, DSS, DMSS (iOS/Android)

---

Certifications

• CE-LVD: EN62368-1

• CE-EMC: 2014/30/EU

• FCC: Part 15

• UL/CUL: UL62368-1 & CSA C22.2 No. 62368-1

---

Power & Environment

• Power Supply: 12 VDC / PoE (802.3af)

• Power Consumption:

  • Basic: 5.7 W (DC) / 6.4 W (PoE)

  • Max: 8.9 W (DC) / 10.2 W (PoE)

• Operating Temp.: –30 °C to +60 °C

• Storage Temp.: –40 °C to +60 °C

• Humidity: <95% RH

• Protection: IP67

---

Physical

• Casing: Metal

• Dimensions: 108.3 mm × Φ122 mm (4.26" × Φ4.8")

• Net Weight: 715 g

• Gross Weight: 915 g
