Description

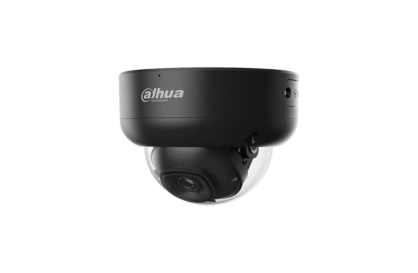

8MP IR Fixed-focal Dome WizSense Network Camera
-
8MP 1/2.8" CMOS sensor, excellent low-light performance
-
Max. 3840 × 2160 @25/30 fps
-
H.265 compression with Smart and AI coding options
-
Built-in IR, up to 30 m night vision
-
WDR, 3D NR, HLC, BLC, digital watermark
-
Intelligent detection: intrusion, tripwire (vehicle/human classification)
-
Abnormality alerts: motion, audio, scene change, SD errors, network issues
-
Alarm & audio I/O (AS model only); built-in mic; supports up to 256 GB Micro SD
-
12 VDC / PoE power
-
IP67 weatherproof, IK10 vandal resistant
-
Supports SMD 4.0 and AI SSA
- Datasheet
Camera
-
Image Sensor: 1/2.8" CMOS
-
Max. Resolution: 3840 × 2160 (8MP)
-
RAM/ROM: 1 GB / 128 MB
-
Shutter Speed: 1/3–1/100,000 s (Auto/Manual)
-
Min. Illumination:
-
0.007 lux @F1.4 (Color)
-
0.0007 lux @F1.4 (B/W)
-
0 lux (IR on)
-
-
IR Distance: 30 m, 3x IR LEDs
-
Pan/Tilt/Rotation: 0°–355° / 0°–80° / 0°–355°
Lens
-
Type: Fixed-focal, M12 mount
-
Focal Lengths: 2.8 mm / 3.6 mm
-
Max. Aperture: F1.4
-
Field of View:
-
2.8 mm: H: 107°, V: 56°, D: 127°
-
3.6 mm: H: 84°, V: 47°, D: 97°
-
-
Close Focus:
-
2.8 mm: 1.5 m
-
3.6 mm: 2.0 m
-
DORI (Detect, Observe, Recognize, Identify)
| Lens | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
| 2.8 mm | 87.7 m | 35.1 m | 17.5 m | 8.8 m |
| 3.6 mm | 102.1 m | 40.8 m | 20.4 m | 10.2 m |
AI & Intelligence
-
IVS: Tripwire, intrusion with human/vehicle classification
-
AI SSA: Scene self-adaptive exposure
-
Quick Pick: Search target from SMD events via AI NVR
-
Smart Search: Intelligent event filtering with Smart NVR
Video
-
Compression: H.265, H.264, MJPEG (sub stream only)
-
Smart Codec: H.265+/H.264+
-
AI Codec: AI H.265 / AI H.264
-
Streams: Triple-streaming
-
Max Frame Rate:
-
Main: 3840×2160 @25/30 fps
-
Sub 1: 704×576 @25 fps / 704×480 @30 fps
-
Sub 2: 1920×1080 @25/30 fps
-
-
Resolutions: 8MP to CIF
-
Bit Rate: H.264/H.265: 3 kbps–8192 kbps
-
Functions: WDR (120 dB), BLC, HLC, 3D NR, ROI, Defog, Mirror, Privacy Masking (4 areas), Motion Detection (4 zones), Image Rotation (0°/90°/180°/270°)
Audio
-
Built-in Mic: Yes
-
Compression: G.711a, G.711Mu, PCM, G.726, G.723
-
Audio I/O: (AS model only) 1-in, 1-out RCA
Alarm (AS Model Only)
-
Inputs/Outputs: 1-in / 1-out
-
Events: Motion, tampering, intrusion, tripwire, audio, voltage, scene change, SMD, safety alerts, SD issues, network errors
Network
-
Port: RJ-45 (10/100 Base-T)
-
Protocols: IPv4/IPv6, HTTP, HTTPS, TCP/IP, FTP, RTSP, SNMP, NTP, IGMP, etc.
-
Cyber Security: Video/config encryption, trusted boot/upgrade, X.509 certs, IP/MAC filtering, WSSE, HTTPS, 802.1x
-
Interoperability: ONVIF (S/G/T), CGI, P2P, Milestone, Genetec
-
Users: Max. 20 users (64 Mbps total)
-
Storage: Micro SD (max 256 GB), FTP, SFTP, NAS
-
Browser Support: IE11, Chrome, Firefox
-
Software: Smart PSS, DSS, DMSS
-
Mobile App: iOS, Android
Certifications
-
CE-LVD: EN62368-1
-
CE-EMC: 2014/30/EU
-
FCC: Part 15
-
UL/CUL: UL62368-1
Power
-
Supply: 12V DC / PoE (802.3af)
-
Consumption:
-
Basic: 4 W (DC), 4.9 W (PoE)
-
Max: 8.5 W (DC), 9.7 W (PoE)
-
Environment
-
Operating Temp: –40°C to +60°C
-
Humidity: <95% RH
-
Ingress Protection: IP67
-
Vandal Rating: IK10
Construction
-
Housing: Metal
-
Dimensions: 89.1 × Φ111.7 mm
-
Weight: Net 516 g, Gross 670 g
