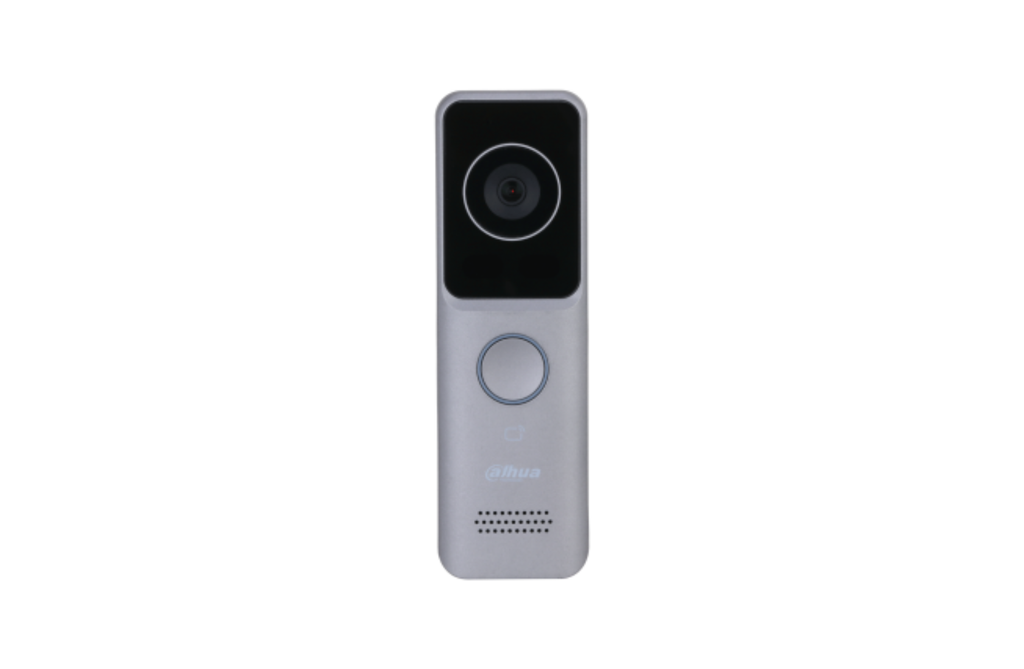

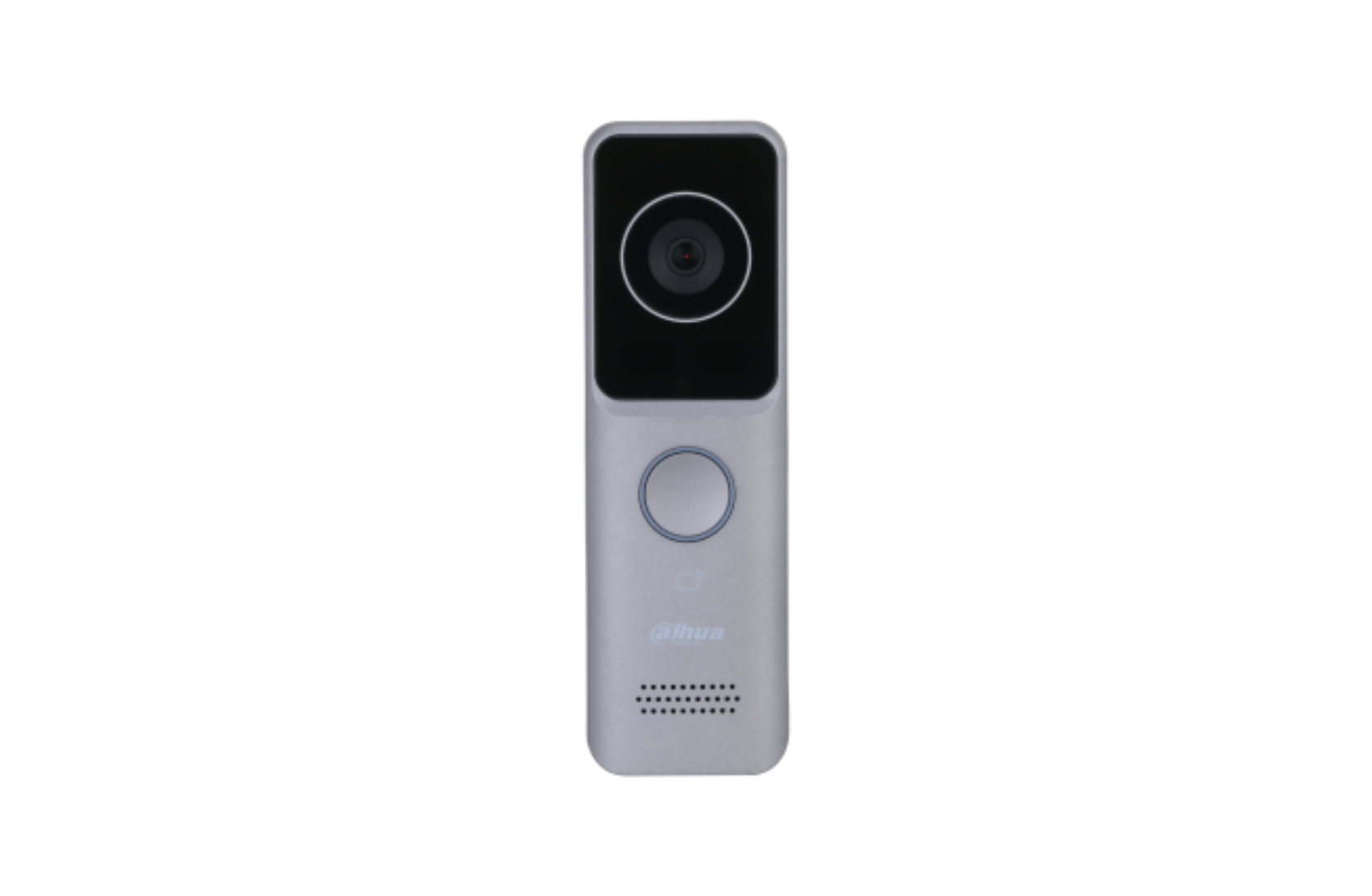

Dahua VTO2311R-WP IP & Wi-Fi Villa Door Station

Key Features

• Ultra slim modern villa door station design
• 1/2.8" 2MP HD CMOS camera
• 110° wide horizontal viewing angle
• Two-way video communication with indoor monitors
• Remote video calls and door unlocking via mobile app
• Supports both Wi-Fi and wired Ethernet connection
• IC card, app, and indoor monitor unlocking methods
• Built-in microphone and speaker
• Supports Micro SD card storage up to 256GB
• Standard PoE or 12–33VDC power input
• IP65 weather-resistant protection
• Surface mount installation
• ONVIF compatible
• Datasheet

Camera

• Sensor: 1/2.8" 2MP CMOS
• Field of View: H 110° / V 62° / D 133°
• WDR: 120dB
• Day/Night Mode: Auto ICR / Colour / B&W
• Noise Reduction: 2D NR and 3D NR
• Light Compensation: Auto IR

Video

• Compression: H.264 / H.265
• Main Stream: 720p, WVGA, D1, CIF
• Sub Stream: 1080p, WVGA, D1, QVGA, CIF
• Frame Rate: PAL 25fps / NTSC 30fps
• Bit Rate: 768kbps–8Mbps

Audio

• Built-in speaker and microphone
• Two-way audio support
• Audio Compression: G.711a / G.711u / PCM
• Echo suppression and digital noise reduction
• Audio Bit Rate: 16kHz, 16-bit

Access Control

• Unlock via IC card, app, or indoor monitor
• Card Capacity: 3000 cards
• Card Reading Distance: 0–3cm
• Local card issuing supported
• 1 × Exit button input
• 1 × Door status detection input
• 1 × Lock control output
• Tamper alarm supported

Network & Wi-Fi

• 1 × RJ-45 10/100Mbps Ethernet port
• Wi-Fi: IEEE 802.11b/g/n
• Wireless Frequency: 2.4GHz
• Supports RTSP, SIP, HTTP/HTTPS, ONVIF, P2P and more
• ONVIF and CGI interoperability

Storage

• Micro SD card support up to 256GB
• Supports snapshot and video message storage

Power

• Power Input: 12–33VDC or Standard PoE
• Power Consumption:
  • ≤ 3.5W standby
  • ≤ 6W working

Build & Installation

• Material: PC + ABS
• Colour: Light Grey
• Installation: Surface mount
• Dimensions: 160 × 50 × 30mm
• Net Weight: 0.18kg
• Included Accessories:
  • Rain cover
  • Alarm power ribbon cable

Environmental

• IP65 weather protection
• Operating Temperature: –40°C to +60°C
• Operating Humidity: 10%–90% RH

Certifications

• CE
• FCC
