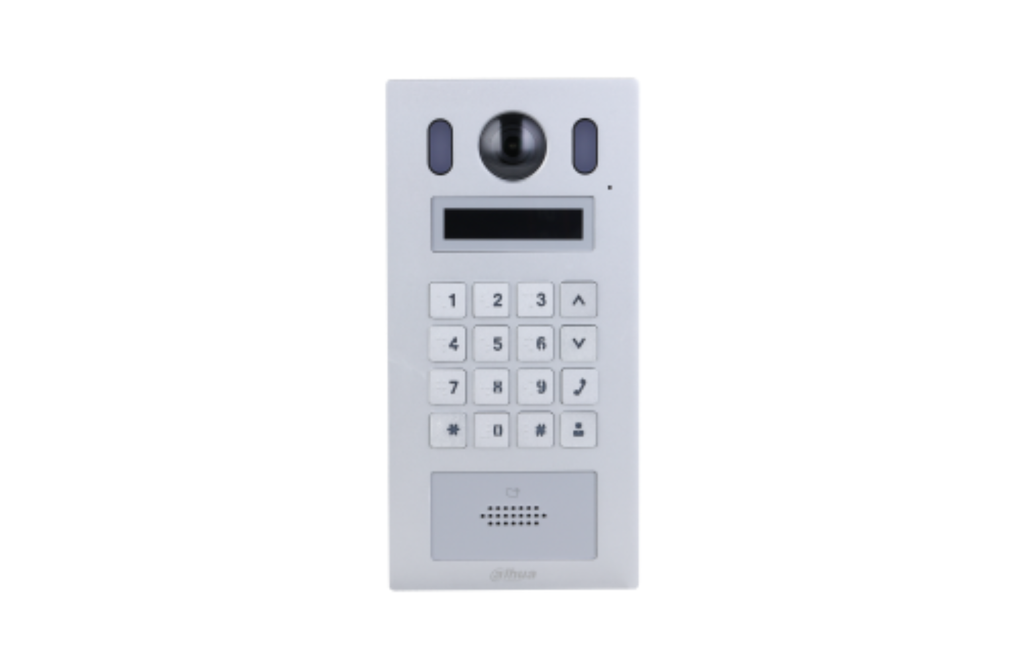

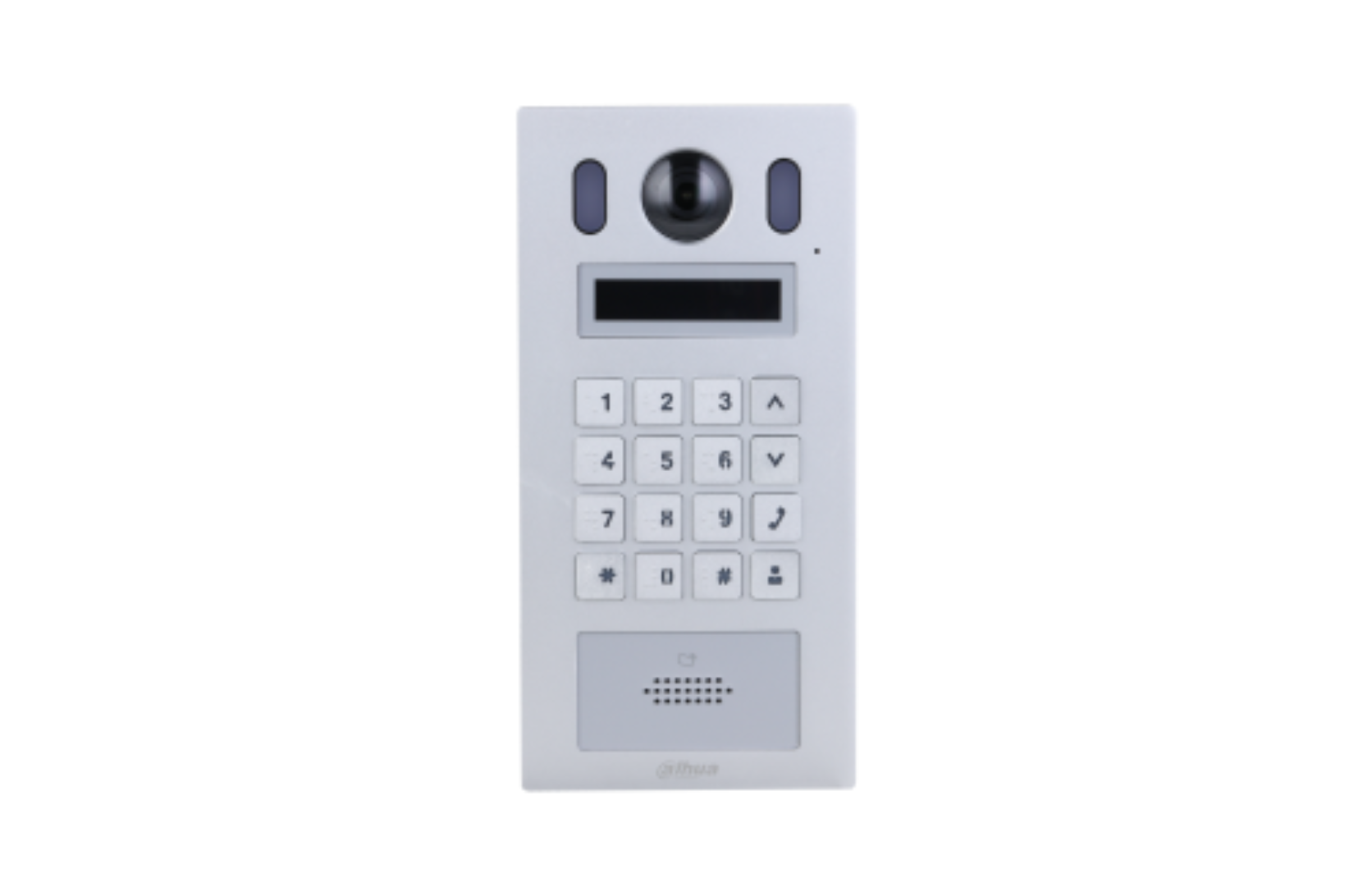

Dahua VTO6222E-P 2-Wire IP Apartment Door Station

Key Features

• 2.3" OLED display screen
• 1/2.9" 2MP CMOS camera
• Wide 140° horizontal viewing angle
• True 120dB WDR for challenging lighting conditions
• Two-way audio communication
• Supports password, IC card, and remote verification
• Supports up to 10,000 cards
• Digital 2-wire communication
• Built-in speaker and microphone
• Micro SD card support up to 256GB
• IP65 weather-resistant and IK08 vandal-resistant design
• Flush mount or surface mount installation
• Standard PoE support
• Datasheet

Camera

• Sensor: 1/2.9" 2MP CMOS
• Field of View: H 140° / V 80° / D 160°
• WDR: 120dB True WDR
• Noise Reduction: 3D NR
• Day/Night Mode: Colour / B&W
• Light Compensation: Auto white light

Video

• Compression: H.264 / H.265
• Main Stream: 720p, WVGA, D1, CIF
• Sub Stream: 1080p, WVGA, D1, QVGA, CIF
• Frame Rate: 25fps

Audio

• Built-in speaker and microphone
• Two-way audio support
• Audio Compression: G.711a / G.711u / PCM
• Echo suppression and digital noise reduction
• Audio Bit Rate: 16kHz, 16-bit

Access Control

• Verification Methods:
  • IC card
  • Password
  • Remote unlock
• Card Type: IC card
• Card Capacity: 10,000 cards
• Card Reading Distance: 0–3cm
• RFID Frequency: 13.56MHz
• Modulation Type: ASK

Function

• Digital 2-wire communication
• Auto snapshot support
• Video message support with SD card
• Web configuration supported
• Supports Micro SD card up to 256GB

Ports & Interfaces

• 1 × RJ-45 10/100Mbps network port
• 1 × RS-485
• 1 × Wiegand
• 1 × Alarm input
• 1 × Alarm output
• 1 × Door bell input
• 1 × Exit button input
• 1 × Lock control output
• 1 × 12V/600mA power output

Power

• Power Supply:
  • 48VDC 0.4A
  • PoE (802.3af/at)
• Power Consumption:
  • ≤ 5W standby
  • ≤ 7W working

Build & Installation

• Material: Aluminum
• Colour: Silver
• Installation:
  • Flush mount
  • Surface mount
• Dimensions: 200 × 98 × 35.4mm
• Gross Weight: 0.657kg
• Optional Accessories:
  • Flush mount box
  • Surface mount box

Protection

• IP65 weather protection
• IK08 vandal resistance
• Tamper alarm supported

Environmental

• Operating Temperature: –40°C to +60°C
• Storage Temperature: 0°C to +40°C
• Operating Humidity: 10%–90% RH
• Storage Humidity: 30%–75% RH
• Outdoor rated

Certifications

• CE
