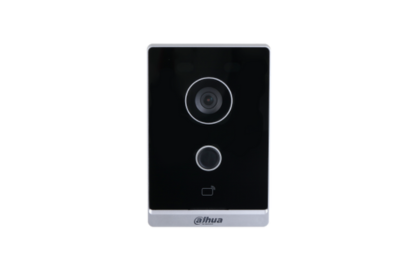

DHI-VTO2211G-WP-S2 Dahua IP & Wi-Fi Villa Door Station

Key Features:

• Slim & Lightweight Design

• IR Illumination & Night Vision

• Two-Way Audio & App Voice Call

• Remote Management

  • Manage via platform

  • Voice call between App and door station

• Multiple Unlock Methods

  • Card unlock

  • Indoor monitor unlock

  • Remote unlock via App

• Weather Resistance

  • IP65 rated (Silicone sealant required—refer to quick start guide)

• Card Support

  • Stores up to 10,000 cards

• Power & Connectivity

  • Standard PoE power supply

  • Wireless network supported

• Lock Control

  • Supports control of 2 locks

• Datasheet



System

• Main Processor: Embedded Processor

• Operating System: Embedded Linux OS

• Button Type: Mechanical

• Number of Buttons: 1

• Interoperability: ONVIF, CGI

• Network Protocols: IPv4, RTSP, UDP, DNS, P2P, RTP, TCP, SIP

---

Basic

• Camera: 1/2.8" 2MP CMOS (low illumination, WDR, color, IR)

• Field of View:

  • Horizontal: 125°

  • Vertical: 71°

  • Diagonal: 142°

• WDR: 120 dB

• Noise Reduction: 3D NR

• Video Compression: H.264, H.265

• Video Resolution:

  • Main stream: 720p, WVGA, D1, CIF

  • Sub stream: 1080p, WVGA, D1, QVGA, CIF

• Video Frame Rate:

  • PAL: 25 fps

  • NTSC: 30 fps

• Video Bit Rate: 256 Kbps – 8 Mbps

• Light Compensation: Auto IR

• Day/Night Mode: Auto (ICR) / Color / B/W

---

Audio

• Compression: G.711a, G.711u, PCM

• Audio Input: 1

• Audio Output: Built-in speaker

• Audio Mode: Two-way audio

• Audio Enhancement: Echo suppression, digital noise reduction

• Audio Bit Rate: 16 KHz, 16 Bit

---

Functions

• Communication Mode: Full digital

• Unlock Methods: Card, App, Indoor Monitor

• Card Type: IC Card

• Auto Snapshot: Supported

• Leave Videos: Yes (with SD card in door station or indoor monitor)

• Wi-Fi: Supported

• Wireless Standards: IEEE 802.11b/g/n

• Frequency Range: 2.4 GHz

• Storage: Micro SD card (up to 256 GB)

• Web Configuration: Yes

---

Performance

• Card Reading Distance: 0 – 4.3 cm (0"–1.69")

• Local Card Issuance: Supported

• Casing Material: PC + Acrylic

---

Capacity

• Card Capacity: 10,000

---

Ports

• RS-485: 1

• Alarm Input: 1

• Alarm Output: 1

• Power Output: 1 port, 12 V / 200 mA

• Exit Button: 1

• Door Status Detection: 1

• Lock Control: 1 port (Normally Closed by default)

• Network Port: 1 × 10/100 Mbps

---

Alarm

• Tamper Alarm: Yes

---

General

• Appearance Color: Black plate with silvery frames

• Power Supply: 12 VDC, 1 A / Standard PoE

• Power Adapter: Optional

• Installation Method: Surface Mount

• Certifications: CE

• Included Accessories: Alarm power ribbon cable, brackets

---

Physical

• Dimensions: 150.0 mm × 100.0 mm × 25.4 mm (5.91" × 3.94" × 1.00")

• Protection Rating: IP65 (Silicone sealant required – see Quick Start Guide)

• Gross Weight: 510 g (1.12 lb)

• Anti-Corrosion Level: Basic Protection

---

Environmental

• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)

• Operating Humidity: 10%–90% RH (non-condensing)

• Environment: Outdoor

• Operating Altitude: Up to 3000 m (9842.52 ft)

• Power Consumption: ≤ 1 W (standby), ≤ 7 W (working)
