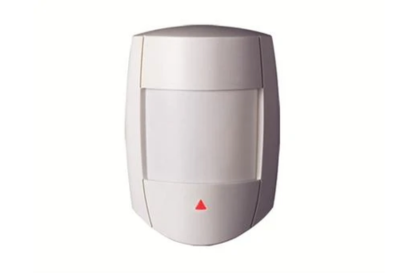

Digigard Quad Element Digital Motion Detector

Features:

• Digital Dual Opposed Detection
• Interlock Sensor Geometry
• Quad element sensor
• Auto Pulse Signal Processing
• Automatic Temperature Compensation
• Dual Edge Processing
• 12m x 12m 110deg viewing angle
• RFI / EMI Rejection: 10V/m rejection from 10MHz to 1GHz
• Voltage Input (typical): - 11 to 16Vdc
• Current Consumption: 15mA max / 6mA min (LED disabled)
• Anti-Tamper Switch: 150mA / 28Vdc, N.C.
• Lens: 2nd generation Fresnel lens, LODIFF, segments
• Detection Speed: 0.2m/s to 3.5m/s ingress
• Operating Temperature: -20degC to 50degC, UL/ULC Tested to 0degC to 49degC
• Can be used with the PDX-SB469 swivel mount bracket

Download datasheets:

• PDX-DG65 Installation Guide
