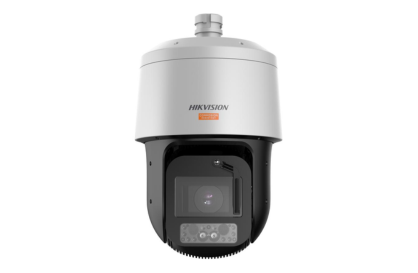

• 1/1.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with DarkFighter technology
• 42× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• Water and dust resistant (IP67)
• Anti-corrosion polymer enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
• Datasheet



Camera Overview

Image Sensor

• Type: 1/1.8" Progressive Scan CMOS

Minimum Illumination

• Color: 0.001 Lux @ (F1.2, AGC ON)

• B/W: 0.0005 Lux @ (F1.2, AGC ON)

• IR: 0 Lux with IR

Shutter Speed

• 1 s to 1/30,000 s

Slow Shutter

• Yes

Day & Night

• IR Cut Filter: Yes

Zoom

• Optical: 42x

• Digital: 16x

Maximum Resolution

• 2560 × 1440

Lens

Focus

• Auto, semi-auto, manual

Focal Length

• 6.0 mm to 252 mm

Zoom Speed

• Approx. 5.4 s

Field of View (FOV)

• Horizontal: 58.8° to 1.97° (wide-tele)

• Vertical: 34.6° to 1.12° (wide-tele)

• Diagonal: 67.1° to 2.28° (wide-tele)

Aperture

• Max. F1.2

Illuminator

Supplement Light Type

• Hybrid

Supplement Light Range

• IR Distance: Up to 500 m

• White Light Distance: Up to 100 m

Smart Supplement Light

• Yes

PTZ (Pan/Tilt/Zoom)

Movement Range

• Pan: 360°

• Tilt: -20° to 90° (auto flip)

Pan Speed

• Configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed

• Configurable from 0.1° to 120°/s; preset speed: 200°/s

Proportional Pan

• Yes

Presets

• 300

Patrol Scan

• 8 patrols, up to 32 presets for each patrol

Pattern Scan

• 4 pattern scans, record time over 10 minutes for each scan

Power-off Memory

• Yes

Park Action

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

3D Positioning

• Yes

PTZ Status Display

• Yes

Preset Freezing

• Yes

Scheduled Task

• Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

Main Stream

• 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

• 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-stream: H.265/H.264/MJPEG

• Third Stream: H.265/H.264/MJPEG

Video Bit Rate

• 32 Kbps to 16384 Kbps

H.264 Type

• Baseline Profile, Main Profile, High Profile

H.265 Type

• Main Profile

Scalable Video Coding (SVC)

• Supported for H.264 and H.265 encoding

Region of Interest (ROI)

• 8 fixed regions for each stream

Audio

Audio Compression

• G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC

Audio Bit Rate

• G.711: 64 Kbps

• G.722.1: 16 Kbps

• G.726: 16 Kbps

• MP2L2: 32 Kbps to 192 Kbps

• AAC: 16 Kbps to 64 Kbps

Network

Network Storage

• NAS (NFS, SMB/CIFS), ANR

Protocols

• IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets

API

• ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T)

Simultaneous Live View

• Up to 20 channels

User/Host

• Up to 32 users (3 user levels: administrator, operator, and user)

Security

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Client

• HikCentral, iVMS-4200, Hik-Connect

Web Browser Compatibility

• IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

AI Open Platform

Model Specification

• Up to 4 models

• Model Type: Detection model, Classification model, Mixed model (detection and classification)

Image Settings

Day/Night Switch

• Day, night, auto, scheduled-switch

Image Enhancement

• BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

• 120 dB

Defog

• Optical defog

Image Stabilization

• EIS (Built-in gyroscope to improve EIS performance)

Regional Exposure

• Yes

Regional Focus

• Yes

Image Settings

• Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Image Parameters Switch

• Yes

Privacy Mask

• Up to 24 masks, mosaic mask, mask color configurable, rectangle region

SNR

• ≥ 52 dB

Interface

Ethernet Interface

• 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

• Built-in memory card slot, supports microSD/microSDHC/microSDXC cards, up to 256 GB

Alarm

• 7 inputs, 2 outputs

Audio

• 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%

• 1 output (line out), line level, output impedance: 600 Ω

RS-485

• Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Event Detection

Basic Events

• Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception

Smart Events

• Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection

Smart Tracking

• Manual tracking, auto-tracking

Alarm Linkage

• Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning

Deep Learning Function

Perimeter Protection

• Line crossing, intrusion, region entrance, region exiting

• Supports alarm triggering by specified target types (human and vehicle)

General

Power

• 36 VDC ± 25%, max. 60 W

• 24 VAC ± 25%, max. 60 W

Operating Conditions

• Temperature: -40°C to 70°C (-40°F to 158°F)

• Humidity: ≤ 95%

Language Support

• 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Wiper

• Yes

Dimensions

• Ø 242 mm × 398.1 mm (Ø 9.53" × 15.67")

Weight

• Approx. 6 kg (13.2 lb.)

Approval

EMC

• CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)

• RCM (AS/NZS CISPR 32: 2015)

• IC VoC (ICES-003: Issue 6, 2019)

Safety

• UL (UL 62368-1)

• CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

• CE-LVD (EN 62368-1:2014+A11:2017)

• BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Environment

• CE-RoHS (2011/65/EU); WEEE (2012/19/EU)

• REACH (Regulation (EC) No 1907/2006)

Anti-Corrosion Protection

• NEMA 4X (NEMA 250-2018), C5

Protection

• IP67 Standard, 6000V Lightning Protection, Surge Protection, and Voltage Transient Protection
