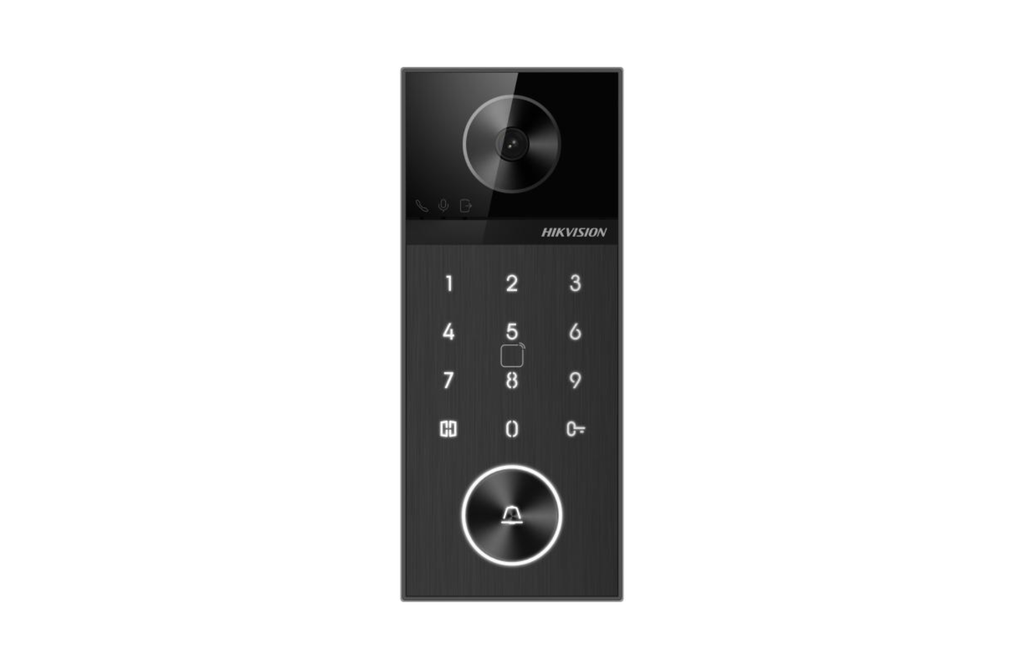

DS-KV6124-WBE1 Hikvision 2nd Gen IP Intercom, Villa door station

Villa Door Station

• 4 MP high-resolution camera with 150° wide viewing angle

• Supports 2 lock controls

• Multiple unlocking methods: Card, PIN Code, Bluetooth, Hik-Connect App, Indoor Station

• Video recording & playback via Hik-Connect or PC Web Interface

• IEEE 802.3at PoE supported (standard PoE)

• Datasheet

---

System Parameters

• Operating System: Linux

• Processor: Embedded high-performance processor

• ROM: 4 GB

• RAM: 512 MB

---

Video Parameters

• Lens: 1

• Resolution:

  • Main Stream:

    • 4 MP (2688 × 1520)

    • 2 MP (1920 × 1080)

    • 1 MP (1280 × 720)

  • Sub Stream:

    • 2 MP (1920 × 1080)

    • 1 MP (1280 × 720)

    • 0.3 MP (640 × 480)

• Field of View:

  • Horizontal: 150°

  • Vertical: 75°

• Wide Dynamic Range: 120 dB

• Supplement Light: IR light, up to 3 m

• Video Compression: H.264 / H.265 / MJPEG

---

Audio Parameters

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Audio Compression:
  G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729

• Audio Bitrate: 8–64 Kbps

• Audio Quality: Noise suppression & echo cancellation

• Volume Adjustment: Adjustable

• Audio Performance:

  • 80 dB @ 50 cm

  • Max. 83 dB @ 50 cm

• Audio Sample Rate: 16 kHz / 8 kHz

---

Capacity

• User Capacity: 2,000

• Card Capacity: 10,000

• Face Capacity: N/A

---

Network Parameters

• Network Protocols: TCP/IP, RTSP, IPv6, ONVIF

• Ethernet: 1 × RJ-45, 10/100 Mbps (self-adaptive)

• Wi-Fi Frequency: 2.4 GHz

• Wi-Fi Standards: IEEE 802.11 b/g/n/ax

• Wi-Fi Type: Wi-Fi 6

• Bluetooth: Supported

• 3G/4G: Not supported

---

Authentication

• Authentication Methods: Card, PIN Code, Bluetooth, Hik-Connect, Indoor Station

• Card Type: M1 Card

• Card Frequency: 13.56 MHz

• Card Reading Distance: 2–2.5 cm

---

Application & Features

• Mobile App: Hik-Connect

• Motion Detection: Supported

• Playback: Supported

• Call Elevator: Supported

• Smart Features:

  • Sound Classification Detection

    • Scream

    • Glass breaking

    • Crying sound

  • Recommended detection distance: up to 3 m

---

Interfaces

• Alarm Inputs: 4 (includes exit button & door contact)

• Alarm Output: N/A

• Lock Control:

  • 2 relay outputs

  • Max. 30 VDC, 2 A

• Door Contact Input: 1

• Exit Button: 1

• Tamper Input: 1

• RS-485: 1

• USB: N/A

• Wiegand: N/A

• TF Card Slot:

  • Supports up to 128 GB

  • Formats: FAT32, exFAT

---

General

• Button: 1 physical button

• Installation: Surface mounting

• Indicators: 3

• Material:

  • Front & rear shell: Plastic

  • Viewing window panel: Glass

• Protection Rating: IP65

• Application Environment: Outdoor

---

Environmental

• Operating Temperature: −40 °C to 60 °C

• Operating Humidity: 10% to 90% (non-condensing)

---

Power

• Power Supply:

  • 12 VDC, 1.2 A

  • IEEE 802.3at PoE

• Power Consumption: < 10 W

• Power Output: Max. 12 VDC, 1 A

---

Physical

• Dimensions (W × H × D):
  164 × 69 × 24.7 mm

• Weight:

  • Without package: 273 g

  • With package: 431 g

---

Language Support

English, Arabic, French (EU), Russian, Spanish (EU & LATAM), Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan)
