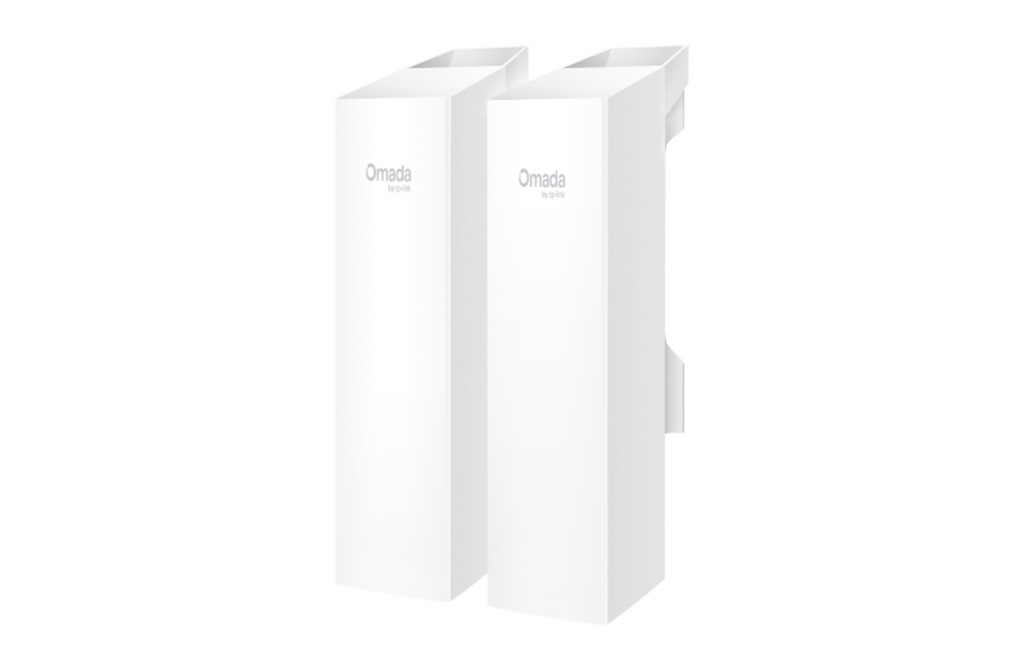

EAP100-Bridge KIT Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge

Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge

• Long-Range Transmission: Up to 1640 ft (500 m) Wi-Fi coverage*

• Omada SmartBridging: Unique design for effortless and easy bridge setup

• Plug-and-Play Preconfigured Kit: Auto-pairing delivers instant connectivity straight out of the box—just power on and go. Ideal for fast deployments

• App-Guided Alignment: Visualized alignment for long-distance setups, plus instant speed testing for installation verification

• Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems)

• 3× Fast Ethernet Ports: Connect additional cameras and devices without the need for an extra switch△

• Built for Tough Conditions: IP65 weatherproof enclosure with operating range from -40℉ to +158℉**

• Remote Monitoring & Management: Operates in Standalone mode or Omada SDN mode with centralized management via Web UI or mobile app§



Hardware Features

• Interface: 3 × 10/100 Mbps Ethernet Ports

• Button: Reset

• Power Supply: 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE

• Max. Power Consumption: 4.8 W

• Dimensions (W × D × H): 3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm)

• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas

  • 2.4 GHz: 8.0 dBi

  • Horizontal: 70°, Vertical: 70°

• Weatherproof Enclosure: IP65

• Mounting: Pole and wall mounting (pole accessories included)

---

Wireless Features

• Coverage: 500 m (0.31 mi)*

• Wireless Standards: IEEE 802.11b/g/n

• Frequency: 2.4 GHz

• Signal Rate: Up to 300 Mbps (2.4 GHz)

• Wireless Functions:

  • MIMO: 2.4G 2×2 MIMO

  • Mesh

  • Beamforming

  • Channel: 1–11 (US); 1–13 (EU)

  • Multiple SSIDs: 8

  • Wireless Statistics

  • Wireless Schedule

  • Reboot Schedule

  • RADIUS Accounting

  • Static IP/Dynamic IP

  • Rate Limit

  • Guest Network

  • Enable/Disable Wireless Radio

  • Enable/Disable SSID Broadcast

• Wireless Security:

  • VLAN

  • Rogue AP Detection

  • MAC Filter (up to 4,000)

  • Wireless Encryption

• Transmission Power:

  • CE: <20 dBm (2.4 GHz, EIRP)

  • FCC: <22 dBm (2.4 GHz)

---

Management Features

• Omada App: Yes

• Restore & Backup: Yes

• Firmware Update via Web: Yes

• NTP: Yes

• Centralized Management:

  • Omada Hardware Controller

  • Omada Software Controller

  • Omada App

• Email Alerts: Yes

• LED ON/OFF Control: Yes

• SNMP: Yes

• System Logging: Local/Remote Syslog

• SSH: Yes

• Web-based Management: Yes

---

Others

• Certification: CE, FCC, RoHS

• Package Content:

  • EAP100-Bridge KIT

  • Installation Guide

  • Pole Mounting Kit

  • PoE injectors are not included

• Environment:

  • Operating Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

  • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

  • Operating Humidity: 10%–90% non-condensing

  • Storage Humidity: 5%–90% non-condensing
