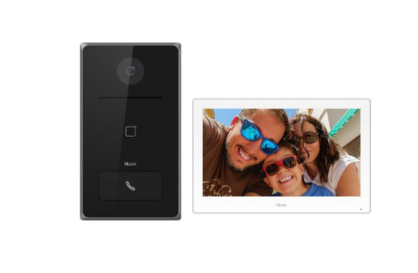

HA-KIT-IP2 Hilook IP Video Intercom Kit

• Convenient Hik-Connect APP Mobile Control
• One call button for easier calls
• Standard PoE power supply
• Including: Door station x1, Indoor station x1, PSU × 2, 32GB TF card x1
• Power adapter included in the package
• Datasheet
• User Manuals

Door Specifications

System Parameters

• Operating System: Linux
• Flash: 32 MB
• RAM: 256 MB

Video Parameters

• Camera: 2MP HD camera
• Night Vision: Low illumination IR supplement mode (2.5m)
• Backlight Compensation: Supported
• Digital Noise Reduction: Supported
• WDR: True WDR
• Field of View: Horizontal: 129°, Vertical: 75°
• Video Compression Standard: H.264
• Stream:
  • PAL:
    • Main stream: 1080p@25fps, 720p@25fps
    • Sub stream: 720p@25fps, 480p@25fps
  • NTSC:
    • Main stream: 1080p@30fps, 720p@30fps
    • Sub stream: 720p@30fps, 480p@30fps
• Motion Detection: Supported
• Flash-Avoid Frequency: 50 Hz, 60 Hz

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G722.1, OPUS, G711U, G711A, G726, AAC_LC, AAC_LD
• Audio Compression Rate: 16/32/64 Kbps
• Audio Intercom: Two-way audio communication

Network Parameters

• Network Protocol: TCP/IP, SIP, RSTP
• Wi-Fi: 2.4GHz, IEEE802.11b/g/n

Device Interfaces

• Network Interface: 1 RJ-45, 10/100 Mbps self-adaptive
• RS-485: 1
• Alarm Input: 4
• Lock Control: 1 relay, Max. 30 VDC 2 A
• Door Contact Input: 1
• Tamper: 1
• TF Card: 1 (Reserved)
• Audio Output: 1 external loudspeaker (Reserved)

General Specifications

• Power Consumption: < 10 W
• Working Temperature: -40°C to 53°C (-40°F to 127.4°F)
• Working Humidity: 10% to 95%
• Dimensions: 181.6 mm × 103.6 mm × 29.5 mm
• Installation: Surface mounting, Flush mounting
• Protection Level: IP65
• Indicator: 2
• Power Supply:
  • IEEE802.3af, Standard PoE
  • 12 VDC

Indoor Station Specifications

System Parameters

• Operating System: Linux
• Memory: 128 MB
• Flash: 32 MB

• Display Screen: 7-inch colorful TFT screen
• Display Resolution: 1024 × 600
• Operation Method: Capacitive touch screen

Audio Parameters

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Quality: Noise suppression and echo cancellation
• Audio Compression Standard: G.711 U
• Audio Compression Rate: 64 Kbps

Network Parameters

• Wired Network: 1 RJ-45, 10/100 Mbps self-adaptive
• Wireless Network: 2.4 GHz, IEEE802.11b/g/n
• Protocol: TCP/IP, SIP, RTSP

Device Interfaces

• RS-485: 1 (Half duplex)
• Alarm Input: 8-channel alarm inputs
• Relay Output: 2
• TF Card: Supports TF card, up to 128 GB

General Specifications

• Power Consumption: ≤ 5 W
• Power Supply:
  • 12 VDC, 1 A
  • IEEE802.3af, Standard PoE
• Working Temperature: -10°C to 50°C (14°F to 122°F)
• Working Humidity: 10% to 90%
• Dimensions (L × W × H): 175 mm × 113.5 mm × 21 mm (6.9" × 4.5" × 0.83")
