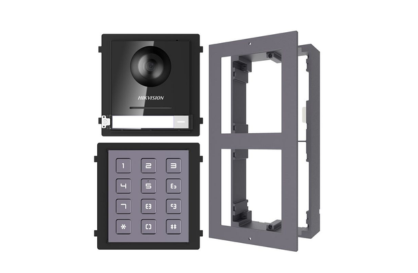

This kit consists of the most commonly ordered items relating to the door station (to make it easier for you)
1 x Hikvision 2nd Gen IP Intercom DS-KD8003-IME1 Door Station with Camera, 1x Button, IP65, 12VDC/POE
1 x Hikvision Gen2 DS-KD-ACW2 Video Intercom Surface Mount Housing – 2 Module
1 x Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module
WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
DOOR STATION
The Hikvision 2nd Generation offers a flexible modular range of IP intercoms. The HIK-KD8003-IME1 is a door station with a 2MP HD camera which supports up to 8 extension modules. Being a modular and customisable design, this allows the SI to create an entry door panel consisting of one or all the following options; electronic tenant directory, digital keypad, nametag, RFID reader and display modules.
- IP65 rating
- H.264 video compression
- -40 to +60 degrees Celsius operating temperature
- Dimensions: 98 x 99.8 x 43.9mm
- 2MP HD video intercom function
- Access control function
- Noise suppression and echo cancellation
- Low illumination
- Tampering alarm supported
- Fisheye camera with IR supplement light
- Supports up to 8 sub-modules’
- Nametag customisation
- Easy to expand
SURFACE MOUNT MODULE
-
Hikvision Gen2 Video Intercom Door Station (DS-KD8003-IME1) support up to an additional 8 Modules. This DS-KD-ACW2 surface mount housing allows surface mounting of 2 modules.
KEYPAD MODULE
- Hikvision DS-KD-KP Video Intercom Keypad Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides Code / PIN entry to the system. The Code / PIN allows calling of individual apartments as well as unlocking of the door via PIN.
