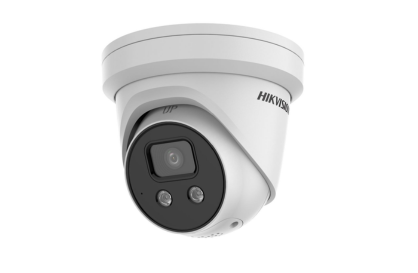

Hikvision Acusense DS-2CD2386G2-ISU/SL IP Camera 8MP 4K With Sound & Strobe Turret Network Camera

Key Features

• 8 MP (4K) resolution for ultra-clear surveillance footage
• Powered-by-DarkFighter technology for excellent low-light performance
• 120 dB True WDR for challenging lighting conditions
• AcuSense AI human and vehicle classification
• Active strobe light and audible warning to deter intruders
• Built-in two-way audio with microphone and speaker
• H.265+ compression for reduced bandwidth and storage usage
• Perimeter protection with intelligent event detection
• Supports MicroSD storage up to 256 GB
• IP67 weatherproof metal housing
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS

Max Resolution: 3840 × 2160

Minimum Illumination:

• Colour: 0.003 Lux @ F1.6 (AGC ON)
• B/W: 0 Lux with IR

Shutter Speed: 1/3 s to 1/100,000 s

Wide Dynamic Range: 120 dB True WDR

Day/Night: IR Cut Filter

Slow Shutter: Yes

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type: Fixed Focal Lens

Lens Options:

• 2.8 mm
• 4 mm
• 6 mm

Aperture: F1.6

Lens Mount: M12

Field of View

2.8 mm:

• Horizontal: 111°
• Vertical: 59°
• Diagonal: 131°

4 mm:

• Horizontal: 87°
• Vertical: 47°
• Diagonal: 102°

6 mm:

• Horizontal: 51°
• Vertical: 28°
• Diagonal: 60°

DORI

2.8 mm:

• Detect: 89.2 m
• Observe: 35.4 m
• Recognise: 17.8 m
• Identify: 8.9 m

4 mm:

• Detect: 99.4 m
• Observe: 39.4 m
• Recognise: 19.9 m
• Identify: 9.9 m

6 mm:

• Detect: 140.0 m
• Observe: 55.6 m
• Recognise: 28.0 m
• Identify: 14.0 m

Lighting

Supplement Light Type: IR

IR Range: Up to 30 m

IR Wavelength: 850 nm

Smart Supplement Light: Yes

Visual Alarm (Strobe): Yes

Supplement Light Range: Up to 30 m

Video

Maximum Resolution: 3840 × 2160 (4K)

Main Stream:

• 4K @ 25 fps (50 Hz)
• 4K @ 24 fps (60 Hz)
• Up to 30 fps at lower resolutions

Video Compression:

• H.265
• H.265+
• H.264
• H.264+
• MJPEG (Sub-stream)

Video Bit Rate: 32 Kbps to 16 Mbps

Bit Rate Control: CBR / VBR

H.264 Profile: Baseline / Main / High

H.265 Profile: Main

ROI: 1 Fixed Region (Main & Sub Stream)

Target Cropping: Yes

Scalable Video Coding (SVC): H.264 & H.265

Audio

Audio Type: Mono

Built-in Microphone: Yes

Built-in Speaker: Yes

Speaker Power: 1.2 W

Maximum Sound Pressure: 95 dB @ 10 cm

Two-Way Audio: Supported

Noise Filtering: Yes

Audio Compression:

• G.711 u-law
• G.711 A-law
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC

Sampling Rates:

• 8 kHz
• 16 kHz
• 32 kHz
• 44.1 kHz
• 48 kHz

AI Analytics

AcuSense Human & Vehicle Classification: Yes

Face Capture: Yes

Perimeter Protection:

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exiting Detection

Scene Change Detection: Yes

Motion Detection:

• Human Classification
• Vehicle Classification

Network & Storage

Ethernet: 1 × RJ45 10/100 Mbps

Simultaneous Live View: Up to 6 Channels

Supported Protocols:

• TCP/IP
• HTTP/HTTPS
• RTSP
• RTP
• FTP
• SMTP
• DHCP
• DNS
• DDNS
• SNMP
• IPv4/IPv6
• SSL/TLS
• QoS
• PPPoE
• UPnP

API Support:

• ONVIF Profile S/G/T
• ISAPI
• SDK

User Access:

• Up to 32 Users
• Administrator, Operator, User Levels

On-Board Storage:

• MicroSD / SDHC / SDXC
• Up to 256 GB

NAS Support:

• NFS
• SMB/CIFS

ANR (Automatic Network Replenishment): Yes

Supported Clients:

• Hik-Connect
• iVMS-4200
• Hik-Central

Image Features

SNR: ≥ 52 dB

Image Enhancement:

• BLC
• HLC
• 3D DNR

Day/Night Modes:

• Day
• Night
• Auto
• Schedule

Image Settings:

• Brightness
• Contrast
• Saturation
• Sharpness
• Gain
• White Balance

WDR: 120 dB

Privacy Mask: Yes

Mirror: Yes

Anti-Flicker: Yes

Alarm & Audio Interfaces

Alarm Input: 1

Alarm Output: 1

Audio Input: 1 × Line In

Audio Output: 1 × Line Out

Built-In Speaker & Microphone: Yes

Hardware Reset: Yes

Event Actions

Linkage Actions:

• Trigger Recording
• Trigger Snapshot
• Trigger Alarm Output
• Audible Warning
• Strobe Light
• Send Email
• Upload to FTP
• Upload to NAS
• Upload to SD Card
• Notify Surveillance Centre

Power

Power Supply:

• 12 VDC ±25%
• PoE 802.3af Class 3

Power Consumption:

• 12 VDC: Max. 9 W
• PoE: Max. 10 W

Power Connector: Ø5.5 mm DC Jack

Reverse Polarity Protection: Yes

Build

Housing Material: Metal (except trim ring)

Dimensions: Ø138.3 × 124.5 mm

Weight: Approx. 840 g

Protection

Weather Rating: IP67

Operating Temperature:
-30°C to 60°C

Storage Temperature:
-30°C to 60°C

Humidity:
95% or less (non-condensing)

Certifications

EMC:

• FCC
• CE-EMC
• RCM
• IC
• KC

Safety:

• UL
• CB
• CE-LVD

Environmental:

• RoHS
• WEEE
• REACH
