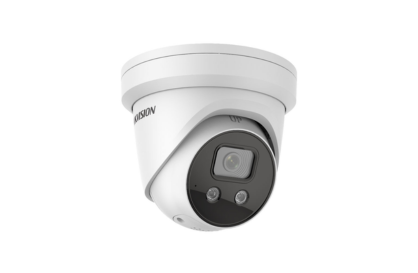

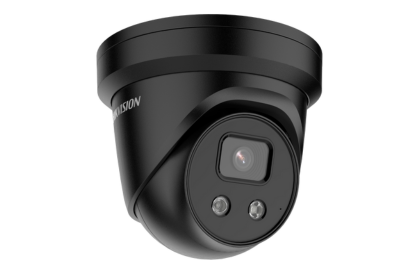

Hikvision Acusense DS-2CD2386G2-IU IP Camera 8MP 4K Turret Network Camera with Mic

4K AcuSense Fixed Turret Network Camera

Key Features

• 8 MP ultra-high resolution imaging
• Powered-by-DarkFighter technology for excellent low-light performance
• AcuSense deep learning human and vehicle classification
• 120 dB True WDR for challenging lighting conditions
• H.265+ compression technology
• Built-in microphone on -U model for audio recording
• Face capture analytics
• Smart IR illumination up to 30 m
• Supports microSD cards up to 256 GB
• IP67 weatherproof protection
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS

Maximum Resolution: 3840 × 2160

Minimum Illumination:

• Colour: 0.003 Lux @ F1.6 (AGC ON)
• B/W: 0 Lux with IR

Shutter Speed: 1/3 s to 1/100,000 s

Day/Night: IR Cut Filter

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°

Lens

Lens Type: Fixed Focal Lens

Available Lens Options:

• 2.8 mm
• 4 mm
• 6 mm

Lens Mount: M12

Aperture: F1.6

Iris Type: Fixed

Field of View:

• 2.8 mm: H 111°, V 59°, D 131°
• 4 mm: H 87°, V 47°, D 102°
• 6 mm: H 51°, V 28°, D 60°

DORI

2.8 mm Lens:

• Detect: 89.2 m
• Observe: 35.4 m
• Recognise: 17.8 m
• Identify: 8.9 m

4 mm Lens:

• Detect: 99.4 m
• Observe: 39.4 m
• Recognise: 19.9 m
• Identify: 9.9 m

6 mm Lens:

• Detect: 140.0 m
• Observe: 55.6 m
• Recognise: 28.0 m
• Identify: 14.0 m

Lighting

Smart Supplement Light: Yes

Light Type:

• IR

IR Wavelength: 850 nm

IR Range: Up to 30 m

Video

Main Stream:

• 8 MP up to 25 fps (50 Hz)
• 8 MP up to 24 fps (60 Hz)
• Up to 30 fps at lower resolutions

Sub Stream:

• Up to 640 × 480 @ 30 fps

Third Stream:

• Up to 1920 × 1080 @ 10 fps

Video Compression:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

Bit Rate Control:

• CBR
• VBR

ROI: 1 Fixed Region

SVC: Supported for H.264 and H.265

Target Cropping: Supported

Audio (-U Model)

Audio Type: Mono

Built-in Microphone: Yes

Audio Compression:

• G.711u
• G.711a
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC

Audio Bit Rate:

• G.711: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• AAC: 16 to 64 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps

Audio Sampling Rates:

• 8 kHz
• 16 kHz
• 32 kHz
• 44.1 kHz
• 48 kHz

Environment Noise Filtering: Yes

AI Analytics

Face Capture: Supported

Motion Detection:

• Human Classification
• Vehicle Classification

Smart Events:

• Scene Change Detection

Target Cropping: Supported

Network & Storage

Network Protocols:

• TCP/IP
• HTTP / HTTPS
• FTP
• DHCP
• DNS
• DDNS
• RTP / RTSP
• NTP
• SMTP
• IPv4 / IPv6
• SNMP
• QoS
• SSL/TLS
• PPPoE
• ARP

Simultaneous Live View: Up to 6 Channels

API Support:

• ONVIF Profile S
• ONVIF Profile G
• ONVIF Profile T
• ISAPI
• SDK

Maximum Users: 32

User Levels:

• Administrator
• Operator
• User

Network Storage:

• NAS (NFS, SMB/CIFS)
• ANR

On-Board Storage:

• MicroSD / SDHC / SDXC
• Up to 256 GB

Memory Card Features:

• Card Encryption
• Health Monitoring (with Hikvision cards)

Supported Clients:

• Hik-Connect
• Hik-Central
• iVMS-4200

Image Features

WDR: 120 dB True WDR

SNR: ≥ 52 dB

Image Enhancement:

• BLC
• HLC
• 3D DNR

Day/Night Modes:

• Day
• Night
• Auto
• Schedule

Image Adjustments:

• Brightness
• Contrast
• Saturation
• Sharpness
• Gain
• White Balance

Interfaces

Network Port:

• 1 × RJ45 10/100 Mbps Ethernet Port

Built-in Microphone:

• Available on -U Model

Reset Button: Yes

Event Functions

Basic Events:

• Motion Detection
• Video Tampering Alarm
• Exception Detection

Alarm Linkage:

• FTP Upload
• NAS Upload
• SD Card Recording
• Email Notification
• Surveillance Centre Notification
• Recording Trigger
• Snapshot Trigger

Power

Power Input:

• 12 VDC ±25%
• Reverse Polarity Protection

PoE:

• IEEE 802.3af Class 3

Maximum Power Consumption:

• 5.8 W (12 VDC)
• 6.8 W (PoE)

Build

Housing Material: Metal Housing

Dimensions:

• Ø138.3 × 126.3 mm

Weight:

• Approx. 740 g

Packaged Weight:

• Approx. 1020 g

Protection

Ingress Protection: IP67

Operating Temperature:

• -30°C to 60°C

Storage Temperature:

• -30°C to 60°C

Operating Humidity:

• Up to 95% RH (Non-Condensing)

Certifications

EMC:

• FCC Part 15 Subpart B
• CE-EMC
• RCM
• KC

Safety:

• UL 60950-1
• IEC 60950-1
• CE-LVD

Environmental:

• RoHS
• WEEE
• REACH

Protection Rating:

• IP67 IEC 60529-2013
