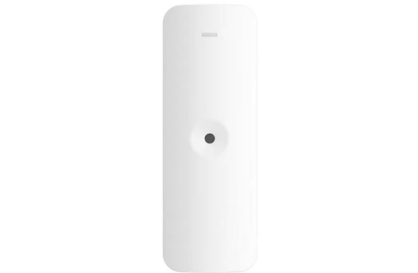

Hikvision AX Hybrid Series DS-PDBG8-EG2 Wired Glass Break Detector, Omni Directional Microphone Sensor, 8M

Wired Glass Break Detector

• High quality Omni-directional microphone sensor
• Up to 8m/120° detection coverage
• Selectable EOL resistors（Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8/）
• 9-16 VDC wide voltage adaptation with polarity reverse connection protection



Detection Performance

• Detection Method: Acoustic Sensor
• Detection Range: 8m
• Detection Angle: 120°
• Glass Break Sensitivity: Potentiometer Adjustment
• Glass Type: Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
• Glass Thickness: 2.4mm to 6.4mm
• Glass Size: 0.3m x 0.3m to 3m x 3m

Feature

• Digital Processing: Support
• Tamper Protection: Front

Interface

• Alarm Output: Normally Closed
• LED Indicator:
  • Red (High Frequency Trigger)
  • Green (Low Frequency Trigger)
  • Blue (Alarm)

Transmission

• Transmission Method: Wired

Electrical Characteristics

• Power Supply: 9 to 16 VDC
• Typical Voltage: 12V
• Power Consumption:
  • Maximum current: 25mA @12VDC
  • Quiescent current: 25mA @12VDC

General

• Operation Temperature: -10°C to 55°C (14°F to 131°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): 38.8 mm × 107 mm × 22.5 mm
• Weight: 49.5g
• Mounting Method: Wall; Ceiling
• Application Scenario: Indoor
