Description

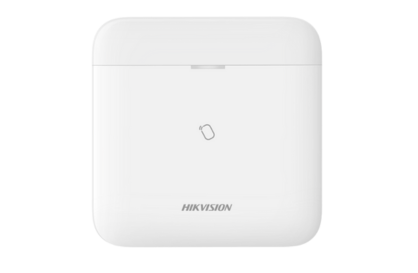

AX PRO (433MHz)
- TCP/IP, Wi-Fi, and 3/4G network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers & keypads.
- Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Software Features
- Tag: 48
- Area: 32
- Zones: 96 (up to 48 PIRCAMs)
- Onboard Video Clips: 4
- Installer: 1
- User: 46
- Admin: 1
- Voice Prompt: Supported
- Loudspeaker Built-in: Supported
- Tag Reader Built-in: Supported
- Memory Log Stored: 5000
- Programming Tools: Hik-Connect, Hik-ProConnect, Web Portal, IVMS4200, Convergence Cloud
- Firmware Upgrade: APP, Web Portal
- Arm Modes: Away/Stay
- Automatic Arm/Disarm Timers: Supported
- Forced Arming with Open Zones: Supported
- Diagnostics via the APP or Web: Supported
- ARC Protocol: SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK), Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
- Supports Video Verification and Remote Control
- User APP for Operating: Supported
- Installer APP for Programming: Supported
- Web Server for Maintenance (Offline Configuration): Supported
Hardware Features
- RS232 Output: Supported
- SIM Slot: Dual
- RF Transmission: Two-way Wireless Communication
- RF Frequency: 433 MHz
- Wireless Security: Frequency Hopping 128 AES Encryption
- 3/4G On Board: Supported
Electrical Characteristics
- Power Supply: Built-in power supply
- Battery Type: Built-in on board Battery Li
- Battery Life Span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless Transmission: Wired network Supported
- Wi-Fi Standard: Supported
- Display LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
General
- Operation Temperature: -10 °C to +55 °C (The battery cannot be charged at temperatures lower than 10°C, please ensure the adapter is connected)
- Shell Material: Plastic
- Dimension (WxHxD): 170.0 mm (6.7") × 170.0 mm (6.7") × 38.6 mm (1.5")
- Weight: 557.5 g (19.7 oz)
- Color: White
Device Management
- Keyfob: 48
- Wireless Sounder: 6 (3 internal + 3 external)
- Keypad: 8 (including tag reader)
- Wireless Repeater: 4
- Multi Transmitter: 6
- PIR Cam: Supported
