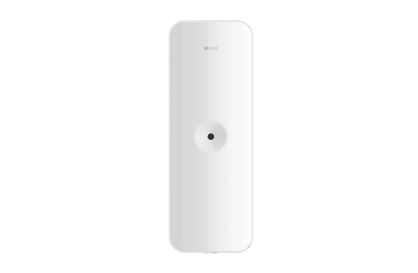

Hikvision AX PRO Series DS-PDBG8-EG2-WB Wireless Glass Break Detector

Wireless Glass Break Detector

• High quality Omni-directional microphone sensor
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection Method: Acoustic Sensor
• Detection Range: 8m
• Detection Angle: 120°
• Sensitivity: 2m; 4m; 6m; 8m
• Glass Type: Float; Plate; Tempered; Wired; Laminated Leaded; Double Glazing
• Glass Thickness: 2.4mm to 6.4mm
• Glass Size: 0.3m x 0.3m to 3m x 3m

Feature

• Digital Processing: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed; Normally Open; Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Power Supply: Battery Powered
• Battery Type: CR123A × 2
• Typical Voltage: 3V
• Standard Battery Life: Up to 5 years (standby time)

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimensions (WxHxD): 38.8mm × 107.0mm × 24.5mm
• Weight: 83g
• Mounting Method: Wall; Ceiling
• Application Scenario: Indoor
