Description

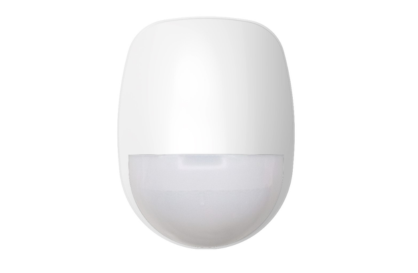

Wired internal 18m PIR detector
- Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.
- Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.
- Digital temperature compensation – Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.
- Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
- 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.
- Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.
- Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6 and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7 and 5K6; catering for most control panels on the market.
- Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m . There is also a ceiling mount option available if required.
- Anti-insect interference - Protects the detector from possible insect infestation, as well as shielding air movement in front of its pyro-electric sensor and protecting against adverse reflections from inside the detector housing.
- Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection
- IFT technology - automatically adjust the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shift the thresholds before the detector goes into false alarm.
Detection Performance
- Detection Range: 18m
- Detection Angle: 85.9°
- Velocity Range: 0.3 ~ 2 m/s
- Sensitivity Adjustment: High, Auto, Low
- Pet Immunity: 10Kg (With optional pet mask)
- White Light Filter: 6500lux
Software Features
- Tamper-Proof: Front
Hardware Features
- Indicator: Blue (alarm)
Electrical Characteristics
- Power Supply: 9 to 16 VDC (standard: 12 VDC)
- Power Consumption: 11mA (max)
General
- Dimension (WxHxD): 65.4mm x 86.8mm x 45.5mm
- Weight: 68 g
- Application Scenario: Indoor
- Installation Height: 1.8 to 2.4m
- Operation Temperature:
- -10 °C to 55 °C (14 °F to 131 °F)
- -10 °C to 40 °C (14 °F to 104 °F) Certified
- Operation Humidity: 10% to 90%
- Bracket: Optional wall & ceiling accessory
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
