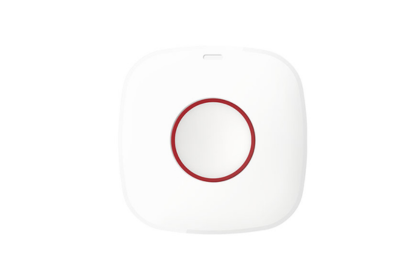

Hikvision AX PRO Series DS-PDEB1-EG2-WB Wall-mounted Wireless Emergency Button

Wireless Emergency Button

• Effective emergency button
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• IP66 water proof

Feature

• Button: 1
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 800m
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 3 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR2450 x 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• IP Rate: IP66
• Dimension (WxHxD): 63.8mm × 63.8mm × 18.4mm
• Weight: 57.5g
• Mounting Method: Wall
• Application Scenario: Indoor, especially humid environment
