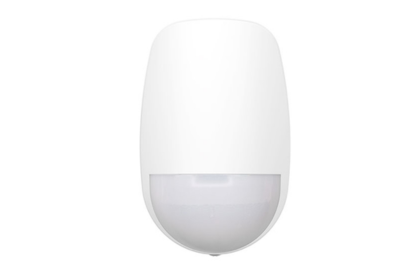

Hikvision AX PRO Series DS-PDP15P-EG2-WB Wireless PIR Detector

Wireless PIR Detector

• Detection Range: 15m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Detection Performance

• Detection Method: Passive Infrared
• Detection Range: 15m
• Detection Angle: 85.9°
• Detection Zones: 52
• Detectable Speed: 0.3～2m/s
• Sensitivity: High; Auto; Pet
• Pet Immunity: 30Kg
• White Light Filter: 6500lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Features

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1.2Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A × 1
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (W × H × D): 65.5mm × 103mm × 48.5mm
• Weight: 128g
• Mounting Height: 1.8 to 2.4m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
