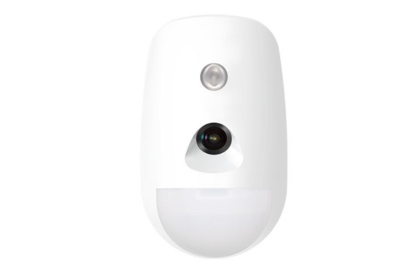

Hikvision AX PRO Series DS-PDPC12PF-EG2-WB Wireless PIRCAM Detector with Image Verification Colorvu

Wireless PIR-Camera Detector

• Detection range: 12m / 85.9°
• Up to 30KG pet immunity
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• 24/7 colorful imaging
• Large integrated memory buffer for image storage
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected



Detection Performance

• Detection Method: Passive Infrared; Video Verification
• Detection Range: 12m
• Detection Angle: 90°
• Detection Zones: 52
• Detectable Speed: 0.3～2m/s
• Sensitivity: High; Auto; Pet
• Pet Immunity: 30 Kg
• White Light Filter: 6500 lux
• Digital Temperature Compensation: Support
• Creep Zone Protection: Support

Video

• Field Angle: 88.4°(H), 54.0°(V)
• Image Type: JPEG
• Resolution: 160120; 320240; 640*480
• Fill Light: White Light
• Fill Range: 12m
• Day/Night Switch: Color

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: CAM-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433 MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 800m
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 6 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A × 3
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimension (WxHxD): 72.2mm × 120.5mm × 56.7mm
• Weight: 220g
• Mounting Height: 1.8 to 2.4m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
