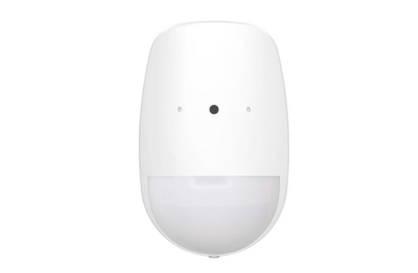

Hikvision AX PRO Series DS-PDPG12P-EG2-WB Wireless PIR-Glass Break Detector

Wireless PIR-Glass Break Detector

• PIR Detection Range: 12m / 85.9°
• Glass Break Range: 8m / 120°
• Up to 30KG pet immunity
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected

Detection Performance

• Detection Method: Passive Infrared; Acoustic Sensor
• Detection Range: 12m
• Detection Angle: 85.9°
• Detection Zones: 52
• Detectable Speed: 0.3～2m/s
• Pet Immunity: 30Kg
• PIR Sensitivity: Auto, High, Pet
• White Light Filter: 6500lux
• Glass Break Range: 8m
• Glass Type: Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing
• Glass Break Sensitivity: 2m, 4m, 6m, 8m
• Glass Thickness: 2.4mm to 6.4mm
• Digital Temperature Compensation: Support
• Glass Size: 0.3m x 0.3m to 3m x 3m
• Creep Zone Protection: Support

Feature

• Digital Processing: Support
• Sealed Optics: Support
• Tamper Protection: Front, Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Power Switch
• Power Up Enrolling
• LED Indicator: Green (PIR), Red (BG), Blue (alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1Km
• Frequency Hopping: Support
• Enrolling Method: Power up, Remote ID, QR Code

Electrical Characteristics

• Standard Battery Life: Up to 4 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A × 2
• Typical Voltage: 3V

General

• Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity: 10% to 90%
• Dimensions (WxHxD): 65.5mm × 103mm × 48.5mm
• Weight: 134g
• Mounting Height: 1.8 to 2.4m
• Mounting Method: Wall
• Application Scenario: Indoor
• Bracket: Optional Wall & Ceiling Accessory
