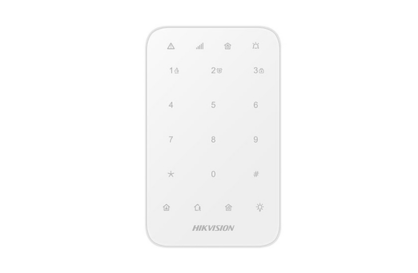

Hikvision AX PRO Series DS-PK1-E-WB Wireless Keypad

Wireless LED Keypad

• 433 MHz two-way wireless communication
• AES-128 encryption
• Stay/away arming, disarming, alarm clearing for specified area or all areas
• LED indicates the programmed area
• One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
• Output control
• Full touch key design with LED backlight
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Easy replaceable battery
• Frequency hopping against jamming for reliable transmission

Electrical Characteristics

• Battery Type: Four AA batteries
• Power Supply: Battery Supply
• Operation Humidity: 10% to 90% (No condensing)
• Operation Temperature: -10 °C to +55 °C (-4 °F to +122 °F)
• Battery Life Span: Up to 2 years (standby time)

Wireless Transmission

• RF Frequency: 433 MHz
• RF Modulation: 2GFSK
• RF Distance: 900 m (open area)

General

• Installation Method: Screw mounting
• Dimensions (WxHxD): 140 mm (5.50") x 86 mm (3.38") x 22 mm (0.87")
• Weight: 151 g (5.33 oz) without battery
