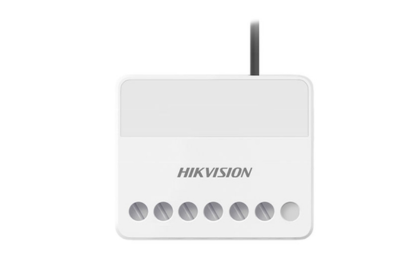

Hikvision AX PRO Series DS-PM1-O1L-WB Relay Module

Relay module

• 433 MHz two-way wireless communication
• AES-128 encryption
• LED display, show status of device and replay on/off display
• Small case design, which can be put into hiding places easily
• Automation operating, one button turn on/off from APP/Keyfob/Keypad
• Setting scenarios by different events
• An alarm input for tamper, NO, NC

Software Features

• Scenario Setting: By alarm, by operation, by fault, by schedule, by manual
• Learning Button: 1, for register

Hardware Features

• Serial Port: 1, for debug

Electrical Characteristics

• Power Supply: DC 7V to 24V
• Operation Humidity: 10% to 90%
• Operation Temperature: -10°C to 55°C

Wireless Transmission

• RF Frequency: 433 MHz
• RF Method: Two-way communication
• RF Modulation: 2GFSK
• RF Distance: 800 m
• Wireless Security: AES-128

Display

• LEDs Status: 3, register/signal (green/red), power (green), relay status (blue)

General

• Installation Method: Wall-Mounting
• Dimension (WxHxD): 38 mm × 25 mm × 18 mm
• Shell Material: Plastic
• Color: White
• Weight: 28.5 g

Device Management

• Alarm Input: 1 for tamper, NO/NC
• Relay Output: 1, NO/NC (0 to 36V DC, Max 5A)
