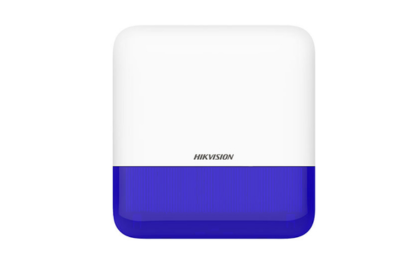

Hikvision AX PRO Series DS-PS1-E-WB Wireless Outdoor Sounder

Wireless External Sounder

• 433 MHz two-way wireless communication
• 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
• AES-128 encryption
• Front and rear panel tamper-proof
• 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
• Buzzer Decibel: 110 dB
• Fully remote configurable through App
• Multiple enrollment methods and easy installation design
• Frequency hopping against jamming for reliable transmission
• IP65 protective level

Electrical Characteristics

• Battery Type: Battery (default power supply method) or 12 VDC
• Power Supply: Battery (default power supply method) or 12 VDC
• Operation Humidity: 10% to 90% (no condensing)
• Operation Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Battery Life Span: Up to 3 years (standby time)

Wireless Transmission

• RF Frequency: 433 MHz
• RF Modulation: 2GFSK
• RF Distance: 900 m (open area)

General

• IP Rating: IP65
• Installation Method: Wall mounting
• Dimensions (WxHxD): 190 × 200 × 47.3 mm (7.48" × 7.87" × 1.86")
• Shell Material: PC+ABS
• Weight: 606.5 g (21.4 oz)
