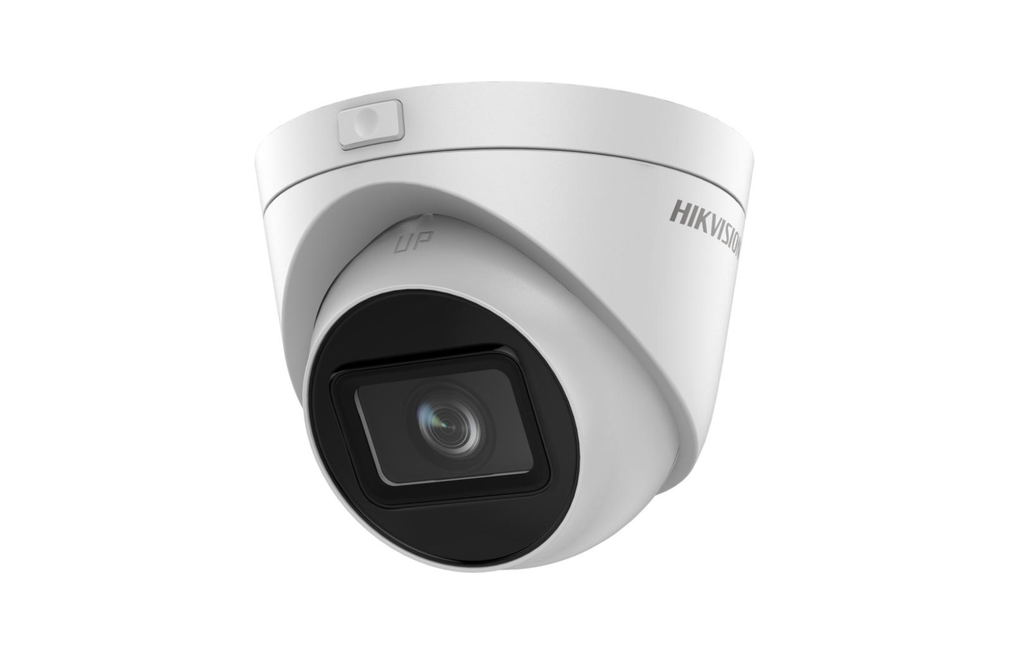

Hikvision DS-2CD1H43G0-IZ 4 MP Motorized Varifocal Turret Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Up to 256 GB SD card slot for storage
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range
• Datasheet

Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Max. Resolution: 2560 × 1440

• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–355°, Tilt: 0°–70°, Rotation: 0°–355°

Lens

• Type: Varifocal, motorized, 2.8–12 mm

• Focal Length & FOV: 2.8–12 mm: H: 102°–31°, V: 54°–17°, D: 123°–35°

• Mount: Ø14

• Iris Type: Fixed

• Aperture: F1.6

Illuminator

• Type: IR

• Range: Up to 30 m

• Wavelength: 850 nm

• Smart Supplement Light: Yes

Video

• Main Stream:

  • 50 Hz: 20 fps (2560×1440); 25 fps (1920×1080, 1280×720)

  • 60 Hz: 20 fps (2560×1440); 30 fps (1920×1080, 1280×720)

• Sub Stream:

  • 50 Hz: 25 fps (1280×720, 640×480, 640×360)

  • 60 Hz: 30 fps (1280×720, 640×480, 640×360)

• Compression:

  • Main: H.265+/H.265/H.264+/H.264

  • Sub: H.265/H.264/MJPEG

• Bit Rate: 32 Kbps–8 Mbps

• H.264 Type: Baseline/Main/High Profile

• H.265 Type: Main Profile

• ROI: 1 fixed region (main stream)

Audio (-S Models)

• Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

• Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC)

• Sampling Rate: 8 kHz/16 kHz

• Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, SSL/TLS, Bonjour

• Simultaneous Live View: Up to 6 channels

• API: ONVIF, ISAPI

• Users: Up to 32 (Admin, Operator, User)

• Client Software: iVMS-4200, Hik-Connect

• Web Browser:

  • Plug-in required: IE 10+

  • Plug-in free: Chrome 57.0+, Firefox 52.0+

  • Local service: Chrome 57.0+, Firefox 52.0+


• Adjustments: Saturation, brightness, contrast, sharpness, AGC, white balance

• Day/Night Switch: Auto, Schedule, Day, Night

• WDR: 120 dB

• Enhancement: BLC, 3D DNR

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive

• On-Board Storage: microSD (up to 256 GB)

• Audio (-S):

  • 1 input (line in, 3.3 Vpp, 4.7 kΩ, non-equilibrium)

  • 1 output (line out, 3.3 Vpp, 100 Ω, non-equilibrium)

• Alarm (-S): 1 input, 1 output (max. 12 VDC 30 mA)

• Reset Key: Yes

Event

• Basic Event: Motion detection, video tampering, exception

• Linkage: Upload to FTP, notify center, send email, record, capture, save to SD

General

• Power:

  • 12 VDC ± 25%, 0.75 A (max 9 W), Ø5.5 mm plug

  • PoE (802.3af Class 3): 36–57 V, 0.27–0.17 A, max 10 W

• Material: Cover – Plastic; Body – Metal

• Dimension: Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")

• Package Dimension: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")

• Weight: 560 g (net), 850 g (packaged)

• Operating / Storage: –30 °C to +60 °C (–22 °F to +140 °F), ≤95% RH non-condensing

• Language: English, Ukrainian

• Functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP filter

Approvals

• EMC: FCC SDoC, CE-EMC, RCM (AS/NZS CISPR 32:2015), IC VoC, KC

• Safety: UL 60950-1, CB (IEC 60950-1/62368-1), CE-LVD, BIS

• Environment: CE-RoHS, WEEE, REACH

• Protection: IP67 (IEC 60529-2013)
