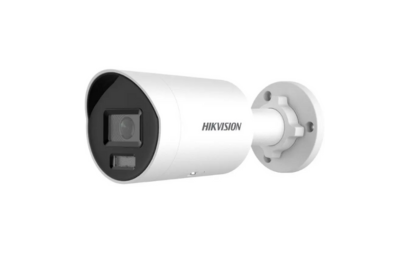

Hikvision DS-2CD2087G2H-LIU 8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera

8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera

Key Features

• 8 MP ultra-high resolution imaging
• ColorVu technology for 24/7 full-colour monitoring
• Smart Hybrid Light with long-range IR and white light illumination
• 130 dB WDR for excellent backlight performance
• H.265+ compression technology
• Deep learning human and vehicle classification
• Built-in microphone on -U model for real-time audio security
• Supports microSD cards up to 512 GB
• IP67 weatherproof protection
• Full metal construction
• Datasheet

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS

Maximum Resolution: 3840 × 2160

Minimum Illumination:

• Colour: 0.0005 Lux @ F1.0 (AGC ON)
• 0 Lux with supplemental lighting

Shutter Speed: 1/3 s to 1/100,000 s

Day/Night: IR Cut Filter

Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°

Lens

Lens Type: Fixed Focal Lens

Available Lens Options:

• 2.8 mm
• 4 mm

Lens Mount: M16

Aperture: F1.0

Iris Type: Fixed

Field of View:

• 2.8 mm: H 105.1°, V 54.8°, D 128.2°
• 4 mm: H 90.0°, V 45.8°, D 109.4°

Depth of Field:

• 2.8 mm: 3.3 m to ∞
• 4 mm: 3.8 m to ∞

DORI

2.8 mm Lens:

• Detect: 89 m
• Observe: 35 m
• Recognise: 17 m
• Identify: 8 m

4 mm Lens:

• Detect: 109 m
• Observe: 43 m
• Recognise: 21 m
• Identify: 10 m

Lighting

Smart Supplement Light: Yes

Light Types:

• IR
• White Light

IR Wavelength: 850 nm

Lighting Range: Up to 40 m

Video

Main Stream:

• 8 MP up to 25 fps (50 Hz)
• 8 MP up to 24 fps (60 Hz)
• Up to 30 fps at lower resolutions

Sub Stream:

• Up to 1280 × 720 @ 30 fps

Third Stream:

• Up to 1920 × 1080 @ 10 fps

Video Compression:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

Video Bit Rate: 32 Kbps to 16 Mbps

Bit Rate Control:

• CBR
• VBR

ROI: 1 Fixed Region

SVC: Supported for H.264 and H.265

Audio (-U Model)

Built-in Microphone: Yes

Audio Compression:

• G.711
• G.722.1
• G.726
• MP2L2
• PCM
• MP3
• AAC-LC

Audio Bit Rate:

• G.711: 64 Kbps
• G.722.1: 16 Kbps
• G.726: 16 Kbps
• AAC-LC: 16 to 64 Kbps
• MP2L2: 32 to 192 Kbps
• MP3: 8 to 320 Kbps

Audio Sampling Rates:

• 8 kHz
• 16 kHz
• 32 kHz
• 44.1 kHz
• 48 kHz

Environment Noise Filtering: Yes

AI Analytics

Face Capture: Supported

Perimeter Protection:

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exit Detection

Target Classification:

• Human Detection
• Vehicle Detection

Smart Event:

• Scene Change Detection

Network & Storage

Network Protocols:

• TCP/IP
• HTTP / HTTPS
• FTP
• DHCP
• DNS
• DDNS
• RTP / RTSP
• RTCP
• NTP
• SMTP
• IPv4 / IPv6
• SNMP
• QoS
• SRTP
• SFTP
• WebSocket

Simultaneous Live View: Up to 6 Channels

API Support:

• ONVIF Profile S, G, T
• ISAPI
• SDK
• ISUP

Maximum Users: 32

User Levels:

• Administrator
• Operator
• User

Network Storage:

• NAS (NFS, SMB/CIFS)
• ANR

On-Board Storage:

• MicroSD / SDHC / SDXC
• Up to 512 GB

Supported Clients:

• Hik-Connect
• Hik-Central
• iVMS-4200

Image Features

WDR: 130 dB

SNR: ≥ 52 dB

Image Enhancement:

• BLC
• HLC
• 3D DNR

Day/Night Modes:

• Day
• Night
• Auto
• Schedule

Image Adjustments:

• Brightness
• Contrast
• Saturation
• Sharpness
• Gain
• White Balance

Privacy Masks: 4 Polygon Masks

Security

Security Features:

• HTTPS Encryption
• TLS 1.1 / 1.2 / 1.3
• 802.1X Authentication
• Password Protection
• IP Address Filtering
• Security Audit Log
• Watermark
• Host Authentication (MAC Address)

Interfaces

Network Port:

• 1 × RJ45 10/100 Mbps Ethernet Port

Built-in Microphone:

• Available on -U Model

Reset Button: Yes

Event Functions

Basic Events:

• Motion Detection
• Video Tampering Alarm
• Exception Detection

Alarm Linkage:

• FTP Upload
• NAS Upload
• SD Card Recording
• Email Notification
• Surveillance Centre Notification
• Recording Trigger
• Snapshot Trigger

Power

Power Input:

• 12 VDC ±25%
• 0.58 A
• Reverse Polarity Protection

PoE:

• IEEE 802.3af Class 3

Maximum Power Consumption:

• 8.5 W (PoE)
• 7 W (12 VDC)

Build

Housing Material:

• Front Cover: Metal
• Body: Metal
• Bracket: Metal

Dimensions:

• Ø74.4 × 179.2 mm

Weight:

• Approx. 525 g

Packaged Weight:

• Approx. 750 g

Protection

Ingress Protection: IP67

Operating Temperature:

• -30°C to 60°C

Storage Temperature:

• -30°C to 60°C

Operating Humidity:

• Up to 95% RH (Non-Condensing)

Certifications

EMC:

• CE-EMC
• RCM
• ICES-003
• KC

Safety:

• UL 62368-1
• IEC 62368-1
• CE-LVD
• BIS IS 13252

Environmental:

• RoHS

Protection Rating:

• IP67 IEC 60529-2013
