Description

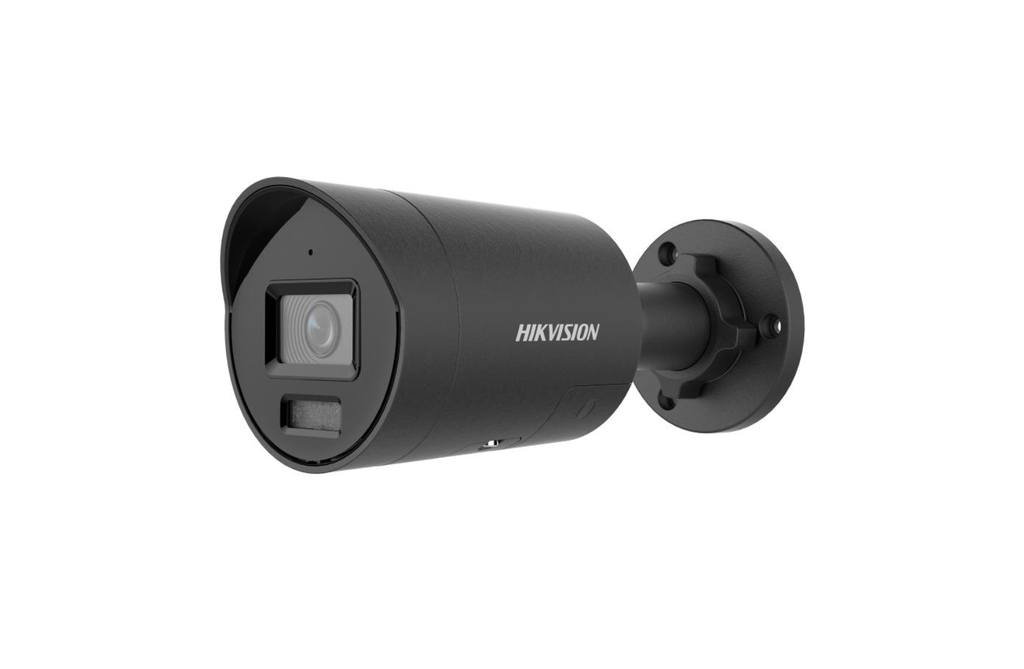

8 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera
Key Features
- 8 MP ultra-high resolution imaging
- ColorVu technology for 24/7 full-colour surveillance
- Smart Hybrid Light with IR and white light illumination
- 130 dB WDR for excellent backlight performance
- H.265+ compression for reduced bandwidth and storage usage
- Deep learning human and vehicle classification
- Active strobe light and audio alarm deterrence
- Built-in two-way audio with microphone and speaker
- Supports microSD cards up to 512 GB
- IP67 weatherproof metal housing
Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Maximum Resolution: 3840 × 2160 (8 MP)
Minimum Illumination:
- Colour: 0.0008 Lux @ F1.0 (AGC ON)
- 0 Lux with supplemental lighting
Shutter Speed: 1/3 s to 1/100,000 s
Day/Night: IR Cut Filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotate: 0° to 360°
Lens
Lens Type: Fixed Focal Lens
Available Lens Options:
- 2.8 mm
- 4 mm
Lens Mount: M16
Aperture: F1.0
Iris Type: Fixed
Field of View:
- 2.8 mm: H 104°, V 55°, D 127°
- 4 mm: H 93°, V 46°, D 112°
Depth of Field:
- 2.8 mm: 3.4 m to ∞
- 4 mm: 3.8 m to ∞
DORI Performance
2.8 mm Lens:
- Detect: 91 m
- Observe: 36 m
- Recognise: 18 m
- Identify: 9 m
4 mm Lens:
- Detect: 111 m
- Observe: 44 m
- Recognise: 22 m
- Identify: 11 m
Lighting
Smart Supplement Light: Yes
Light Types:
- IR
- White Light
IR Wavelength: 850 nm
Lighting Range: Up to 40 m
Video
Main Stream:
- 8 MP up to 25 fps (50 Hz)
- 8 MP up to 24 fps (60 Hz)
- Up to 30 fps at lower resolutions
Sub Stream:
- Up to 1280 × 720 @ 30 fps
Third Stream:
- Up to 1920 × 1080 @ 10 fps
Video Compression:
- H.265+
- H.265
- H.264+
- H.264
- MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
Bit Rate Control:
- CBR
- VBR
ROI: 1 Fixed Region
SVC: Supported for H.264 and H.265
Audio
Audio Type: Mono
Built-in Microphone: Yes
Built-in Speaker: Yes
Audio Compression:
- G.711
- G.722.1
- G.726
- MP2L2
- PCM
- MP3
- AAC-LC
Audio Sampling Rates:
- 8 kHz
- 16 kHz
- 32 kHz
- 44.1 kHz
- 48 kHz
Noise Filtering: Supported
AI Analytics
Face Capture: Supported
Perimeter Protection:
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Exit Detection
Target Classification:
- Human Detection
- Vehicle Detection
Smart Event:
- Scene Change Detection
Network & Storage
Network Protocols:
- TCP/IP
- HTTP / HTTPS
- FTP
- DHCP
- DNS
- DDNS
- RTP / RTSP
- NTP
- SMTP
- IPv4 / IPv6
- SNMP
- QoS
- SRTP
- SFTP
- WebSocket
Simultaneous Live View: Up to 6 Channels
API Support:
- ONVIF Profile S, G, T
- ISAPI
- SDK
- ISUP
Maximum Users: 32
User Levels:
- Administrator
- Operator
- User
Network Storage:
- NAS (NFS, SMB/CIFS)
- ANR
On-Board Storage:
- MicroSD / SDHC / SDXC
- Up to 512 GB
Supported Clients:
- Hik-Connect
- iVMS-4200
Image Features
WDR: 130 dB
SNR: ≥ 52 dB
Image Enhancement:
- BLC
- HLC
- 3D DNR
- Defog
Day/Night Modes:
- Day
- Night
- Auto
- Schedule
Image Adjustments:
- Brightness
- Contrast
- Saturation
- Sharpness
- Gain
- White Balance
Privacy Masks: 4 Polygon Masks
Security
Security Features:
- HTTPS Encryption
- TLS 1.2 / TLS 1.3
- 802.1X Authentication
- Password Protection
- IP Address Filtering
- Security Audit Log
- Watermark
- Host Authentication (MAC Address)
Interfaces
Network Port:
- 1 × RJ45 10/100 Mbps Ethernet Port
Built-in Microphone: Yes
Built-in Speaker:
- Maximum Power Consumption: 1.2 W
- Sound Pressure Level: 95 dB @ 10 cm
Reset Button: Yes
Event Functions
Basic Events:
- Motion Detection
- Video Tampering Alarm
- Exception Detection
Alarm Linkage:
- FTP Upload
- NAS Upload
- SD Card Recording
- Email Notification
- Surveillance Centre Notification
- Audible Warning
- Strobe Light
- Recording Trigger
- Snapshot Trigger
Power
Power Input:
- 12 VDC ±25%
- Reverse Polarity Protection
PoE:
- IEEE 802.3af Class 3
Maximum Power Consumption:
- 10 W (PoE)
- 8.5 W (12 VDC)
Build
Housing Material: Metal
Dimensions:
- Ø74.4 × 179.2 mm
Weight:
- Approx. 510 g
Packaged Weight:
- Approx. 880 g
Protection
Ingress Protection: IP67
Operating Temperature:
- -30°C to 60°C
Storage Temperature:
- -30°C to 60°C
Operating Humidity:
- Up to 95% RH (Non-Condensing)
Certifications
EMC:
- CE-EMC
- RCM
- ICES-003
- KC
Safety:
- UL 62368-1
- IEC 62368-1
- CE-LVD
Environmental:
- RoHS
Protection Rating:
- IP67 IEC 60529-2013
