Description
Key Features

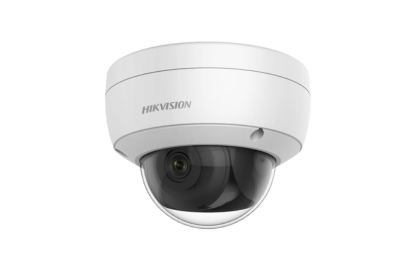

- 4 MP AcuSense fixed dome network camera
- High quality imaging with 2688 × 1520 resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 120 dB True WDR for strong backlight scenes
- Efficient H.265+ compression technology
- Human and vehicle target classification based on deep learning
- IR night vision up to 30 m
- Supports MicroSD storage up to 512 GB
- Water and dust resistant IP67
- Vandal-resistant IK10 housing
- Datasheet
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max Resolution: 2688 × 1520
Minimum Illumination:
Colour: 0.003 Lux @ F1.4, AGC ON
B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR Cut Filter
Angle Adjustment:
Pan: 0° to 355°
Tilt: 0° to 75°
Rotate: 0° to 355°
Lens
Lens Type: Fixed Focal Lens
Lens Options: 2.8 mm, 4 mm
Aperture: F1.4
Iris Type: Fixed
Lens Mount: M12
Field of View
2.8 mm: Horizontal 103°, Vertical 55°, Diagonal 123°
4 mm: Horizontal 83°, Vertical 45°, Diagonal 98°
DORI
2.8 mm: Detect 60.0 m, Observe 23.8 m, Recognise 12.0 m, Identify 6.0 m
4 mm: Detect 80.0 m, Observe 31.7 m, Recognise 16.0 m, Identify 8.0 m
Lighting
Supplement Light Type: IR
IR Range: Up to 30 m
IR Wavelength: 850 nm
Smart Supplement Light: Yes
Video
Main Stream:
50 Hz: 25 fps at 2688 × 1520, 1920 × 1080, 1280 × 720
60 Hz: 30 fps at 2688 × 1520, 1920 × 1080, 1280 × 720
Sub Stream:
50 Hz: 25 fps at 1280 × 720, 640 × 480, 640 × 360
60 Hz: 30 fps at 1280 × 720, 640 × 480, 640 × 360
Third Stream:
50 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
Video Compression:
Main Stream: H.265 / H.264 / H.265+ / H.264+
Sub Stream: H.265 / H.264 / MJPEG
Third Stream: H.265 / H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile / Main Profile / High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding: H.264 and H.265
ROI: 1 Fixed Region for Main Stream and Sub Stream
Audio
Audio: Not available on I version
Built-in Microphone: No
Audio Input / Output: No
AI Analytics
Human and Vehicle Classification: Yes
Face Capture: Yes
Smart Events:
Line Crossing Detection
Intrusion Detection
Region Entrance Detection
Region Exiting Detection
Scene Change Detection
Basic Events:
Motion Detection with Human and Vehicle Classification
Video Tampering Alarm
Exception
Network & Storage
Ethernet Interface: 1 × RJ45 10/100 Mbps
Simultaneous Live View: Up to 6 Channels
API Support:
ONVIF Profile S, Profile G, Profile T
ISAPI
SDK
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
User Access:
Up to 32 Users
Administrator, Operator, User Levels
Network Storage:
NAS: NFS, SMB/CIFS
ANR Supported
On-Board Storage:
MicroSD / SDHC / SDXC Card Slot
Up to 512 GB
Client Software:
iVMS-4200
Hik-Connect
Hik-Central
Web Browser:
IE 10 / IE 11 with plug-in
Chrome 57.0+
Firefox 52.0+
Edge 89+
Image Features
Wide Dynamic Range: 120 dB
SNR: ≥ 52 dB
Day/Night Switch:
Day
Night
Auto
Schedule
Image Enhancement:
BLC
HLC
3D DNR
Image Settings:
Rotate Mode
Saturation
Brightness
Contrast
Sharpness
Gain
White Balance
Image Parameters Switch: Yes
Interface
Ethernet: 1 × RJ45 10/100 Mbps
On-Board Storage: MicroSD Slot, up to 512 GB
Reset Key: Yes
Alarm Input / Output: No
Audio Input / Output: No
Built-in Microphone: No
Event Linkage
Linkage Methods:
Upload to NAS
Upload to Memory Card
Upload to FTP
Notify Surveillance Centre
Trigger Recording
Trigger Capture
Send Email
Power
Power Supply:
12 VDC ±25%
PoE 802.3af, Class 3
Power Consumption:
12 VDC: 0.4 A, Max. 5 W
PoE: 36 V to 57 V, 0.20 A to 0.15 A, Max. 6.5 W
Power Interface: Ø5.5 mm Coaxial Power Plug
Reverse Polarity Protection: Yes
Build
Camera Type: Fixed Dome Network Camera
Dimensions: Ø121.4 mm × 92.2 mm
Weight: Approx. 580 g
Package Dimensions: 150 mm × 150 mm × 141 mm
Weight with Package: Approx. 820 g
Protection
Weather Protection: IP67
Vandal Resistance: IK10
Operating Conditions:
-30°C to 60°C
Humidity 95% or less, non-condensing
Storage Conditions:
-30°C to 60°C
Humidity 95% or less, non-condensing
Certifications
EMC:
FCC
CE-EMC
RCM
KC
Safety:
UL
CB
CE-LVD
LOA
Environmental:
CE-RoHS
WEEE
REACH
