Description

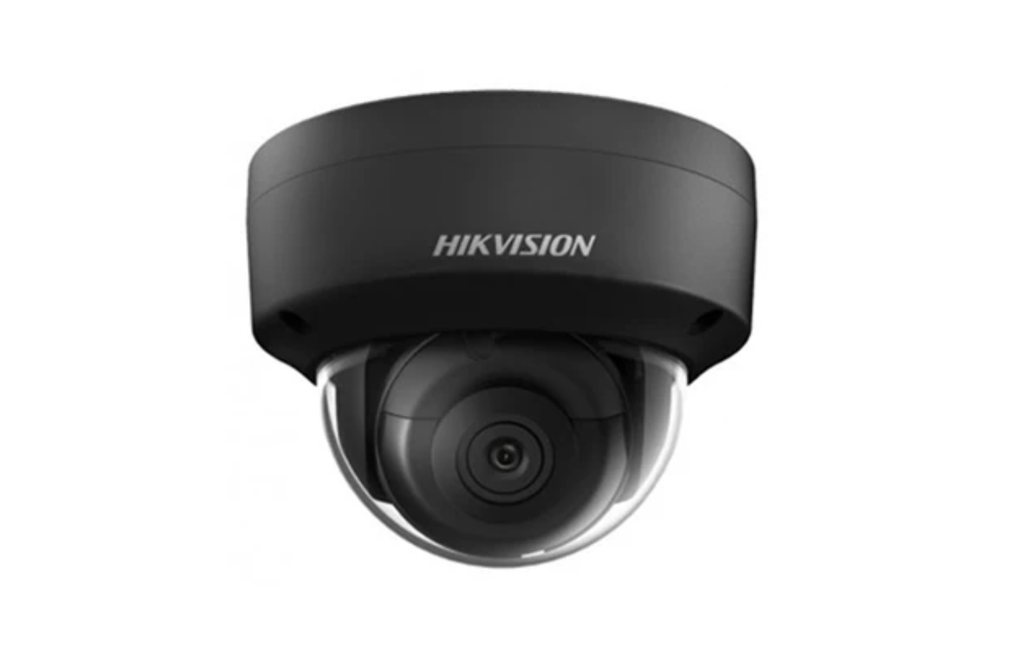

6 MP Powered-by-DarkFighter Fixed Dome Network Camera
- High quality imaging with 6 MP resolution
 - Excellent low-light performance via powered-by-DarkFighter technology
 - Efficient H.265+ compression technology
 - Clear imaging against strong back light due to 120 dB true WDR technology
 - -S: audio and alarm interface available
 - Water and dust resistant (IP67) and vandal proof (IK10)
 -
Robust structure design with full metal materials.

Camera
-
Image Sensor: 1/2.4" Progressive Scan CMOS
 -
Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON); 0.014 Lux @ (F1.6, AGC ON)
 -
Shutter Speed: 1/3 s to 1/100,000 s
 -
Slow Shutter: Yes
 -
Wide Dynamic Range: 120 dB
 -
Day & Night: IR Cut Filter
 -
Angle Adjustment: Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355°

Lens
-
Focus: Fixed
 -
Type: 2.8 / 4 / 6 mm
 -
Field of View (FOV):
-
2.8 mm: H 99°, V 61°, D 128°
 -
4 mm: H 80°, V 51°, D 101°
 -
6 mm: H 60°, V 38°

 -
 -
Aperture: F1.6
 -
Mount: M12

Illuminator
-
IR Range: Up to 30 m
 -
Wavelength: 850 nm

Video
-
Max. Resolution: 3072 × 2048
 -
Main Stream:
-
50 Hz: 20 fps (3072×2048 / 3072×1728 / 2944×1656), 25 fps (2560×1440 / 1920×1080 / 1280×720)
 -
60 Hz: 20 fps (3072×2048 / 3072×1728 / 2944×1656), 30 fps (2560×1440 / 1920×1080 / 1280×720)

 -
 -
Sub Stream:
-
50 Hz: 25 fps (640×480 / 640×360 / 320×240)
 -
60 Hz: 30 fps (640×480 / 640×360 / 320×240)

 -
 -
Third Stream:
-
50 Hz: 25 fps (1280×720 / 640×360 / 352×288)
 -
60 Hz: 30 fps (1280×720 / 640×360 / 352×240)

 -
 -
Video Compression:
-
Main: H.265 / H.264
 -
Sub: H.265 / H.264 / MJPEG
 -
Third: H.265 / H.264

 -
 -
Video Bit Rate: 32 Kbps to 16 Mbps
 -
H.264 Type: Main Profile / High Profile
 -
H.265 Type: Main Profile
 -
H.264+: Supported (Main Stream)
 -
H.265+: Supported (Main Stream)
 -
Region of Interest (ROI): 1 fixed region for main and sub stream

Audio
-
Compression: G.722.1 / G.711 / G.726 / MP2L2 / PCM / MP3
 -
Bit Rate:
-
64 Kbps (G.711)
 -
16 Kbps (G.722.1 / G.726)
 -
32–192 Kbps (MP2L2)
 -
8–320 Kbps (MP3)

 -

Network
-
Simultaneous Live View: Up to 6 channels
 -
API: ONVIF (Profiles S/G/T), ISAPI, SDK, Ehome
 -
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS, WebSocket, WebSockets
 -
Users: Up to 32 (Administrator / Operator / User)
 -
Security: Password protection, HTTPS encryption, 802.1X (EAP-TLS 1.2 / EAP-LEAP / EAP-MD5), watermark, IP filter, WSSE, TLS1.2, digest authentication
 -
Network Storage: microSD/SDHC/SDXC (up to 128 GB), NAS (NFS, SMB/CIFS), ANR supported
 -
Client: iVMS-4200, Hik-Connect, Hik-Central
 -
Web Browser:
-
Plug-in required: IE8+
 -
Plug-in free: Chrome 57+, Firefox 52+, Safari 11+
 -
Local service: Chrome 41+, Firefox 30+

 -
 -
Alarm Trigger: Motion detection, video tampering, network disconnection, IP conflict, illegal login, HDD full/error

-
Day/Night Switch: Day / Night / Auto / Schedule / Triggered by alarm input (-S)
 -
DNR: 3D DNR
 -
Enhancement: BLC / 3D DNR / HLC
 -
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance (via client or web)

Interface
-
On-board Storage: microSD/SDHC/SDXC, up to 128 GB
 -
Hardware Reset: Yes
 -
Network Port: 1 × RJ45 10M/100M self-adaptive Ethernet

Event
-
Smart Event: Line crossing detection, intrusion detection
 -
Face Detection: Yes

General
-
Firmware Version: V5.5.80
 -
Functions: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP filter
 -
Operating Conditions: –30 °C to +60 °C (–22 °F to +140 °F), ≤95% RH (non-condensing)
 -
Power Supply: 12 VDC ±25% (Φ5.5 mm plug), PoE (802.3af, Class 3)
 -
Power Consumption:
-
12 VDC: 0.5 A (max 6 W)
 -
PoE: 36–57 VDC, 0.2–0.1 A (max 7.5 W)

 -
 -
Dimensions:
-
Camera: Ø111 × 82.4 mm (Ø4.4" × 3.2")
 -
Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")

 -
 -
Weight: Approx. 500 g (1.1 lb.)
 -
Protection: IP67, IK10
